Optical bonding
Optical bonding joins the display to a touch panel or cover lens with optically clear adhesive. It can reduce reflections, improve contrast and add mechanical support. The process should be validated for temperature, humidity, UV exposure and long-term adhesion.
Viewing-angle and brightness enhancement films

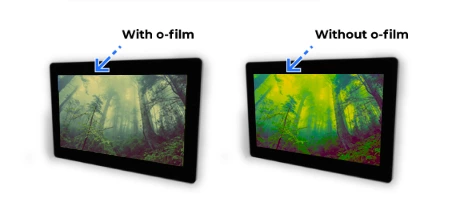

Viewing-angle films can redistribute light to improve the preferred viewing cone. Brightness enhancement film (BEF) recycles off-axis backlight energy toward the viewer and may increase on-axis luminance. Film selection must match the backlight, polarizer and optical target.
Touch-controller choices
Industrial PCAP controllers can support wet touch, gloved operation, thick cover glass, stylus input and improved noise immunity. More conventional applications may prioritize cost and standard gestures. In both cases, the controller firmware must be tuned with the sensor, cover lens, grounding and host system.
Implementation support
Enhancement components should not be selected independently. DISEA evaluates the optical stack, electrical interface, mechanical tolerances and production process together. Start with the required improvement—sunlight readability, viewing angle, touch behavior or durability—and confirm how success will be tested.
Review high-brightness options, industrial PCAP integration and the current TFT LCD product range.
Send your display requirement
