Custom & Standard TFT LCD Display Modules (0.96–3.5 Inch)

Compare 21 published standard and customizable TFT LCD modules for industrial and embedded equipment. Filter by display size, resolution, interface, brightness and touch, then review drawings before requesting samples or an ODM engineering assessment.

Download 2026 Model List
SELECT A DISPLAY

Filter by Size and Resolution

Size
Resolution
All resolutions are displayed. Select a size to enable its matching options.
MATCHING PRODUCTS

Product Results

Showing all published products.

No products have been published yet

Published products appear here automatically. Use size and resolution to narrow the list.

PUBLISHED MODEL DATA

Compare 21 Published TFT LCD Modules

Use this verified catalog summary to shortlist a model by diagonal size, resolution, panel, luminance, interface and touch option. Open the product page and confirm the current controlled drawing before sample approval.

ModelSizeResolutionPublished Configuration
DS-T009HESA-010.96 inch80 × 160IPS • 200 cd/m² • 4-SPI 13-pin • No TP
DS-T010BCSA-011.0 inch128 × 115IPS Round • 350 cd/m² • SPI/8BIT MCU 24-pin • No TP
DS-T013HQGA-011.3 inch240 × 240IPS Round • 500 cd/m² • SPI/8BIT MCU 22-pin • No TP

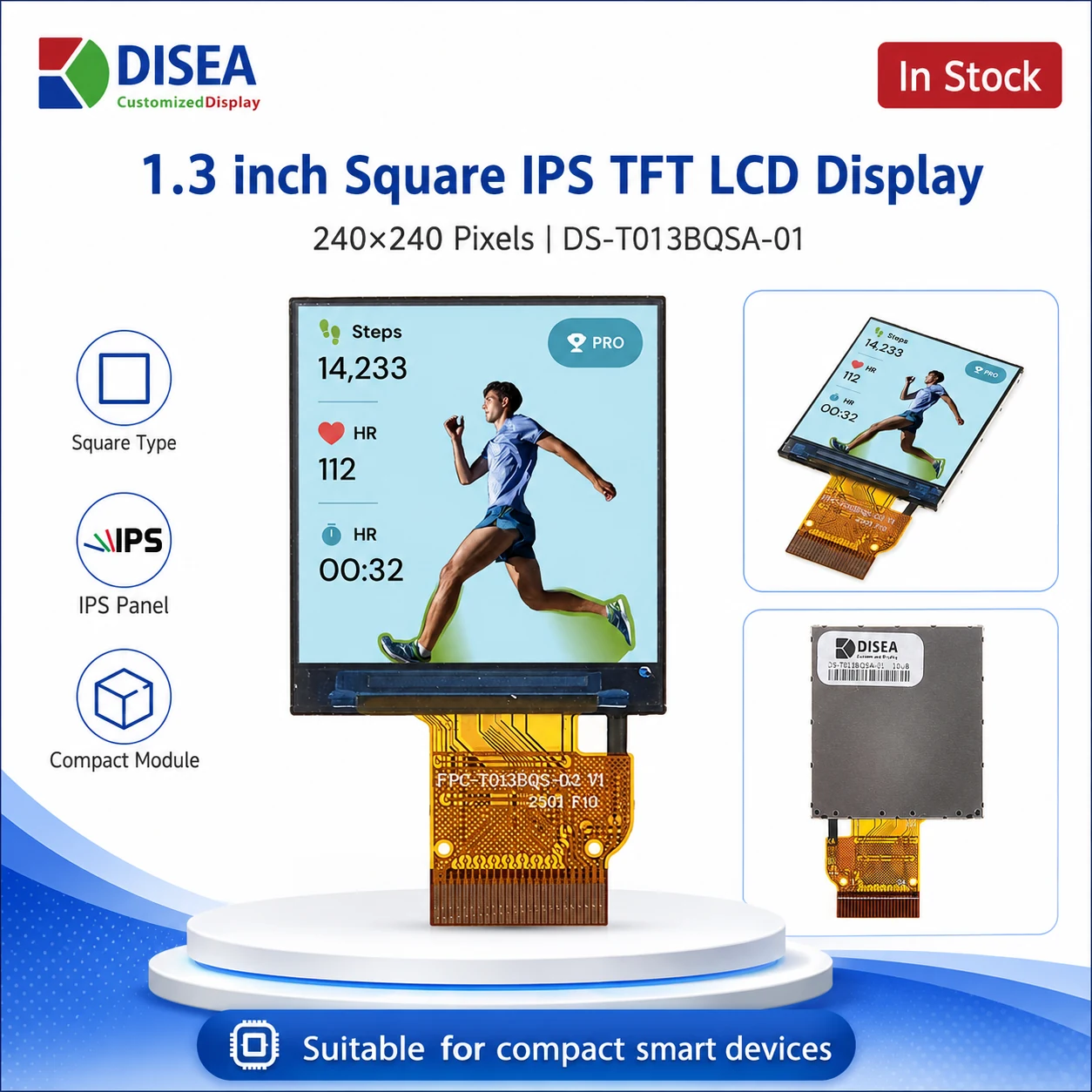

DS-T013BQSA-011.3 inch240 × 240IPS Square • 350 cd/m² • SPI/8BIT MCU 24-pin • No TP
DS-T015BOSA-011.54 inch320 × 320IPS Square • 380 cd/m² • 1 Lane MIPI 14-pin • No TP
DS-T0177SSS-011.77 inch128 × 160TN • 220 cd/m² • 3/4 Wire SPI 12-pin • No TP
DS-T0177SSI-021.77 inch128 × 160TN • 220 cd/m² • 8-bit MCU 20-pin • No TP
DS-T035BHSA-01P3.5 inch320 × 480IPS • 250 cd/m² • RGB/MCU/SPI 50-pin • RTP

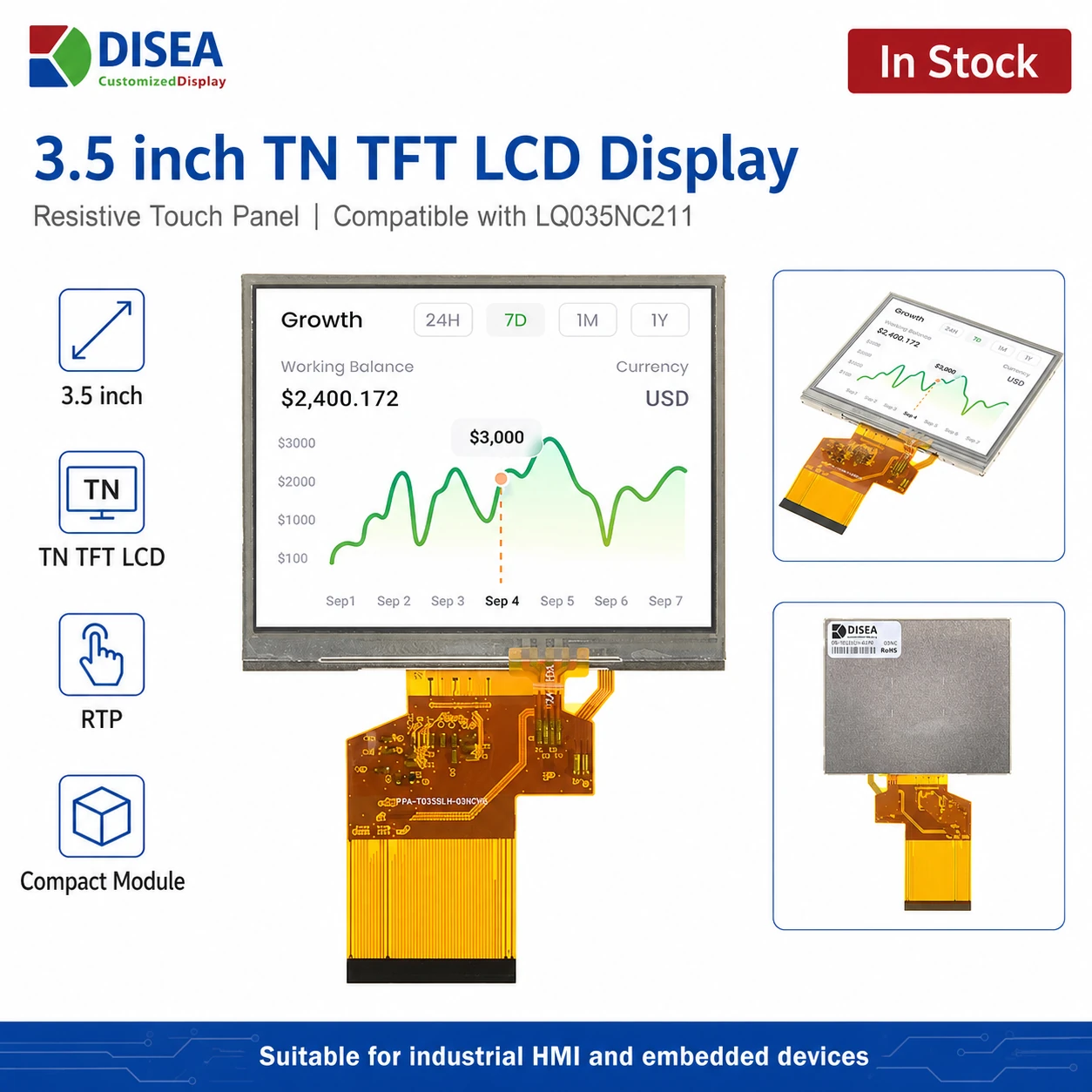

DS-T035SLH-01PD3.5 inch320 × 240TN • 320 cd/m² • RGB 24-bit 54-pin • RTP
DS-T035HLSWA-013.5 inch320 × 240IPS • 1200 cd/m² • RGB 54-pin • No TP
DS-T035SGV-01CP3.5 inch640 × 480IPS • 320 cd/m² • RGB 24-bit 54-pin • PCAP
DS-T035BQSA-013.5 inch240 × 320IPS • 300 cd/m² • RGB/MCU/SPI 50-pin • No TP
DS-T035GLH-01CA3.5 inch320 × 240TN • 280 cd/m² • RGB 24-bit 54-pin • PCAP

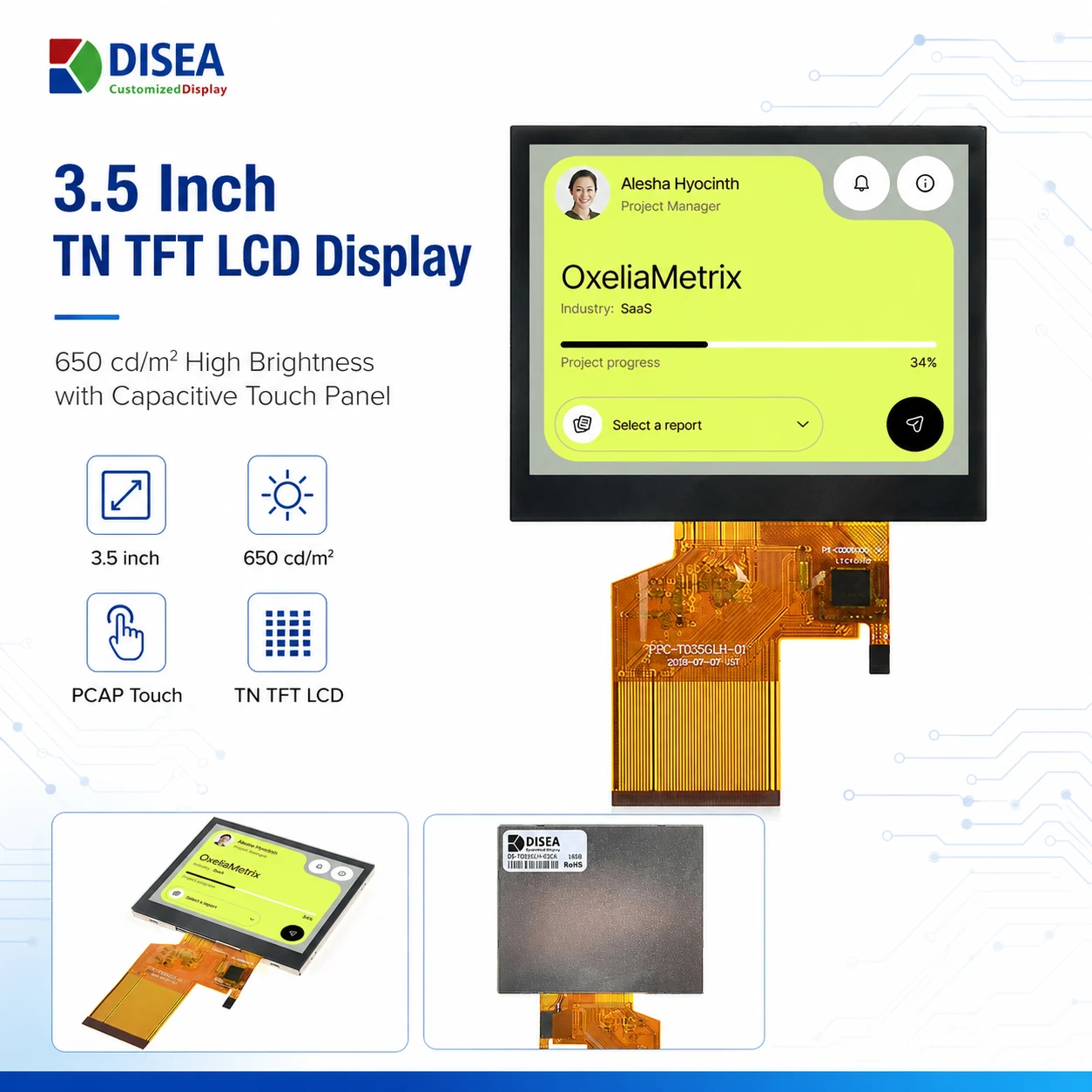

DS-T035GLH-02CA3.5 inch320 × 240TN • 650 cd/m² • RGB 24-bit 54-pin • PCAP
DS-T035GLH-02P3.5 inch320 × 240TN • 650 cd/m² • 320x240 • Resistive Touch

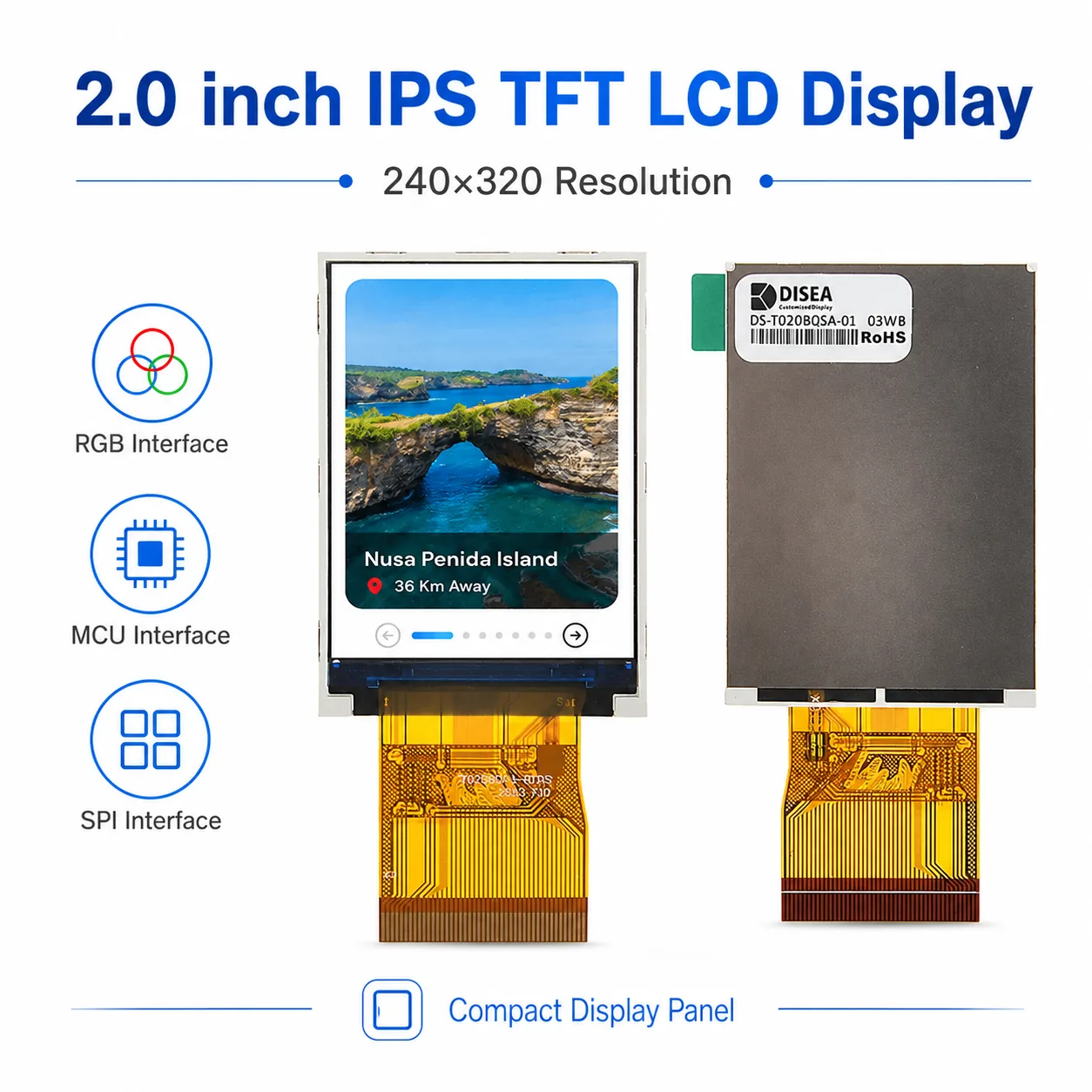

DS-T020BQSA-012.0 inch240 × 320IPS • 250 cd/m² • RGB/MCU/SPI 45-pin • No TP

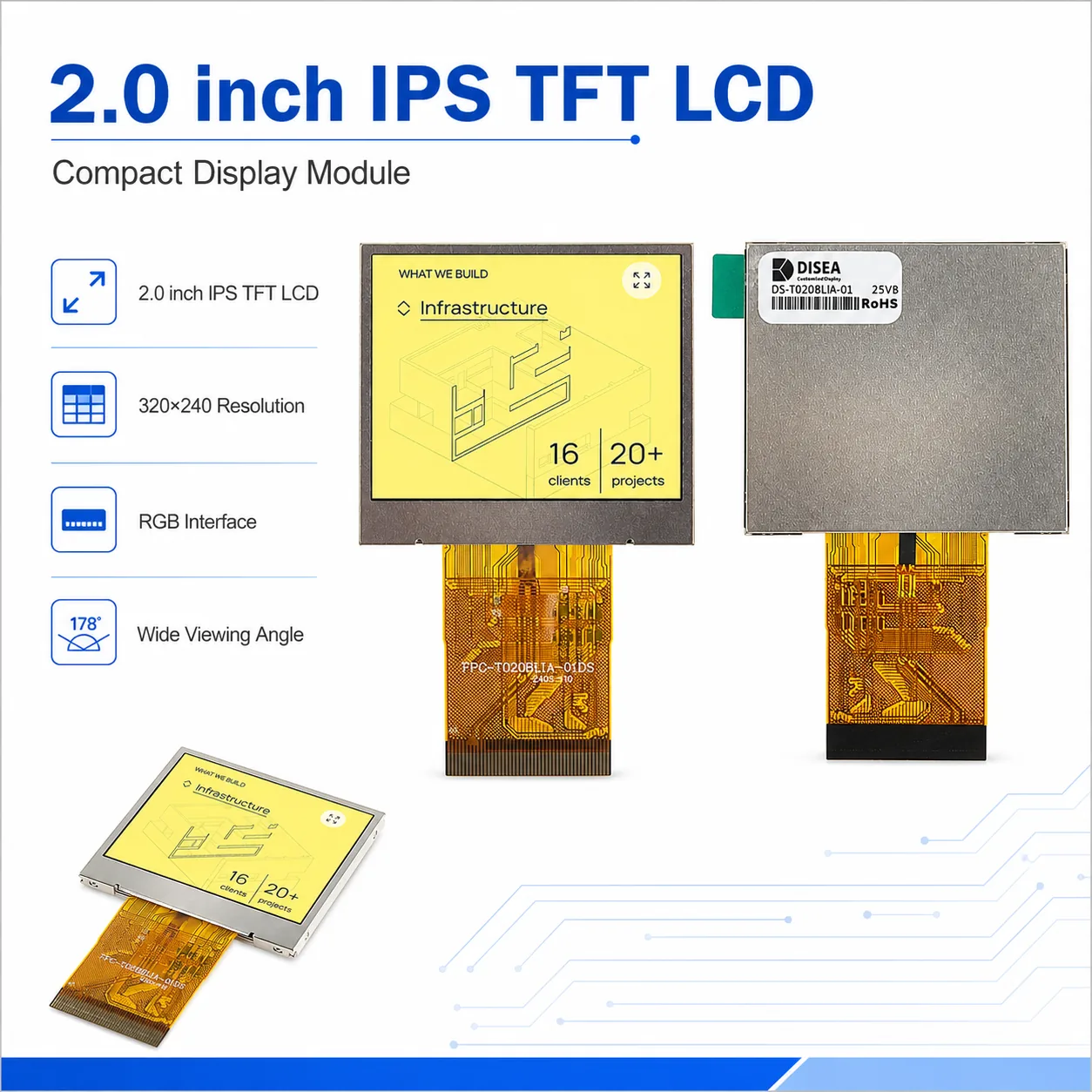

DS-T020BLIA-012.0 inch320 × 240IPS • 250 cd/m² • RGB/MCU/SPI 45-pin • No TP

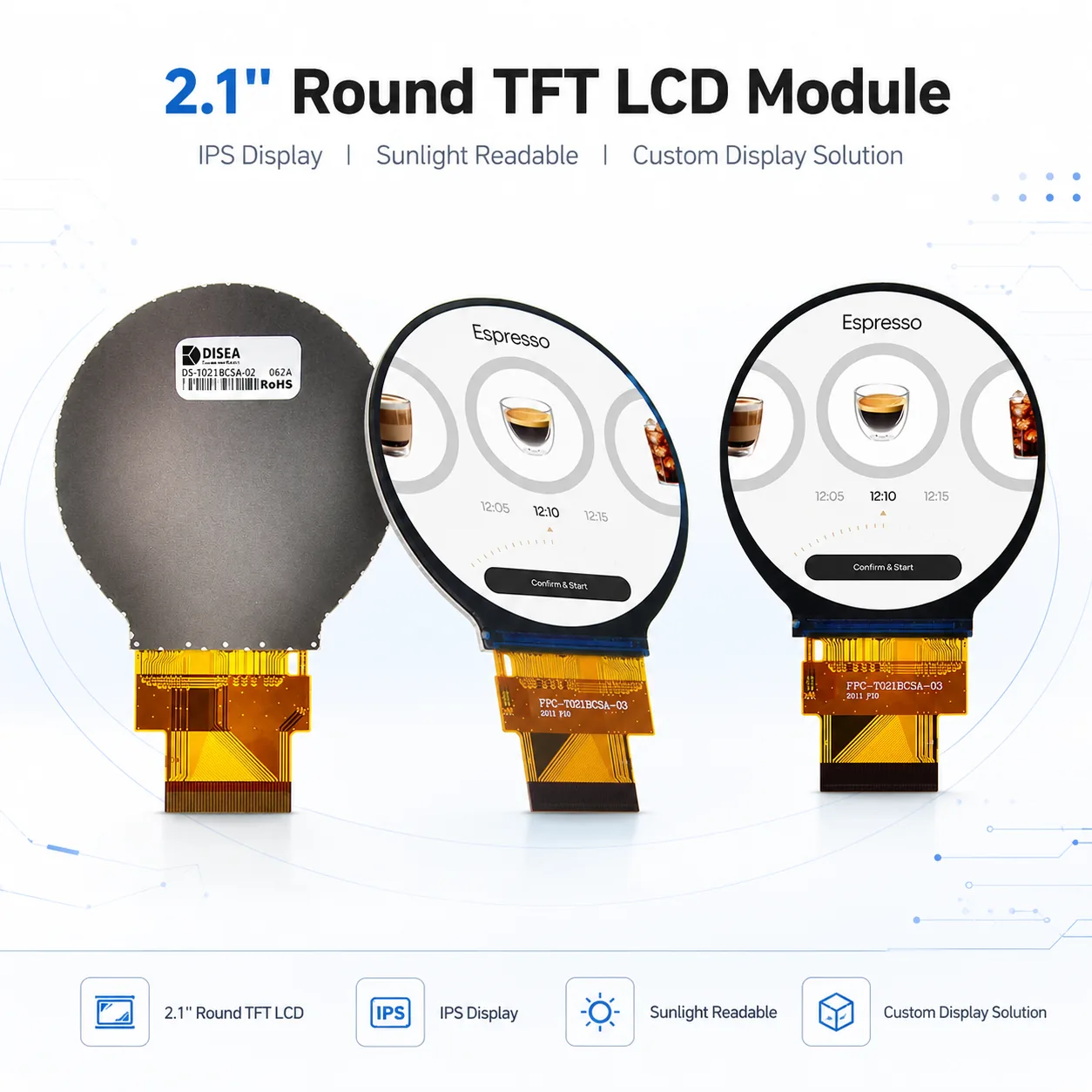

DS-T021BCSA-022.1 inch480 × 480IPS Round • 600 cd/m² • RGB 24-bit 40-pin • No TP

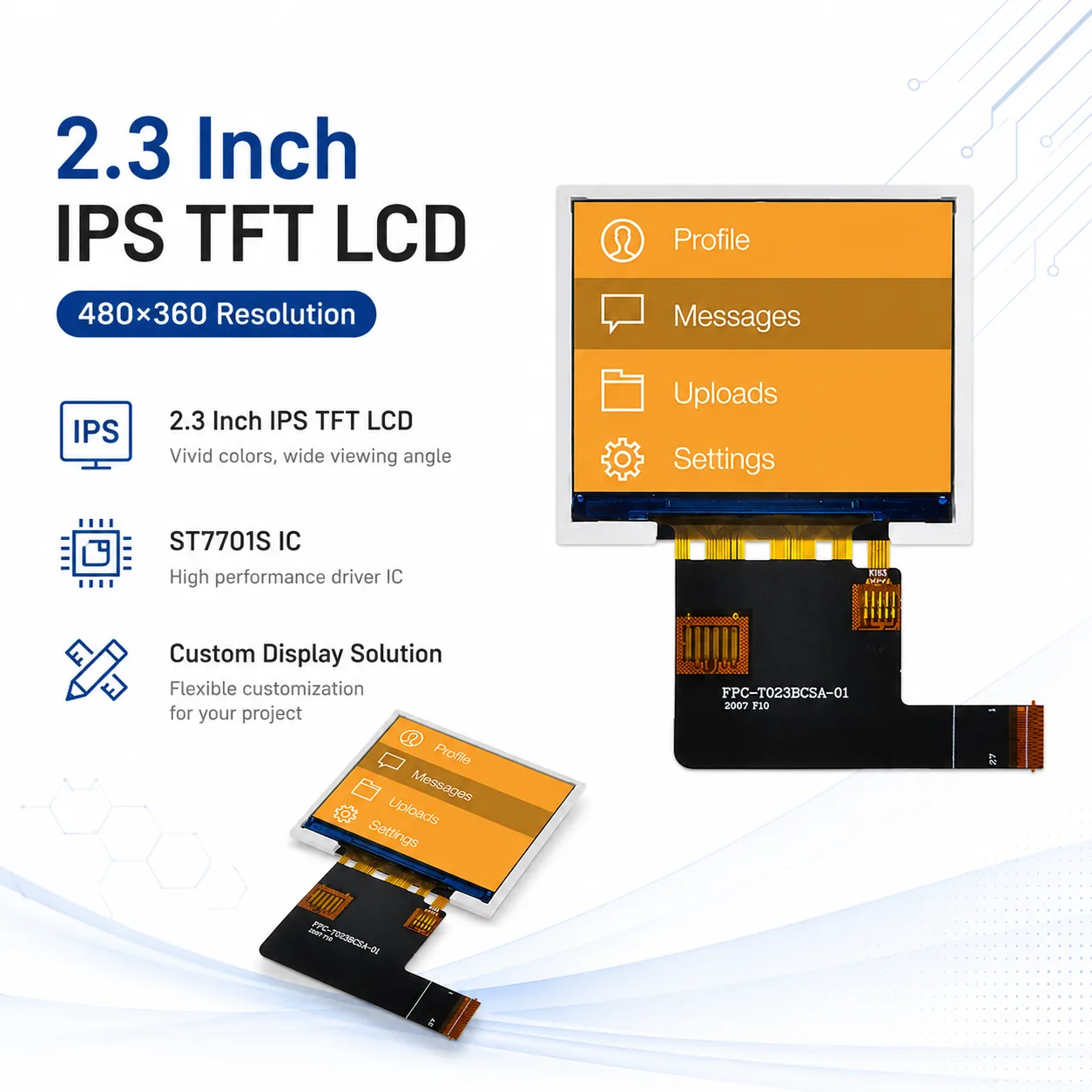

DS-T023BCSA-012.3 inch480 × 360IPS • 500 cd/m² • 2-lane MIPI 27-pin • No TP

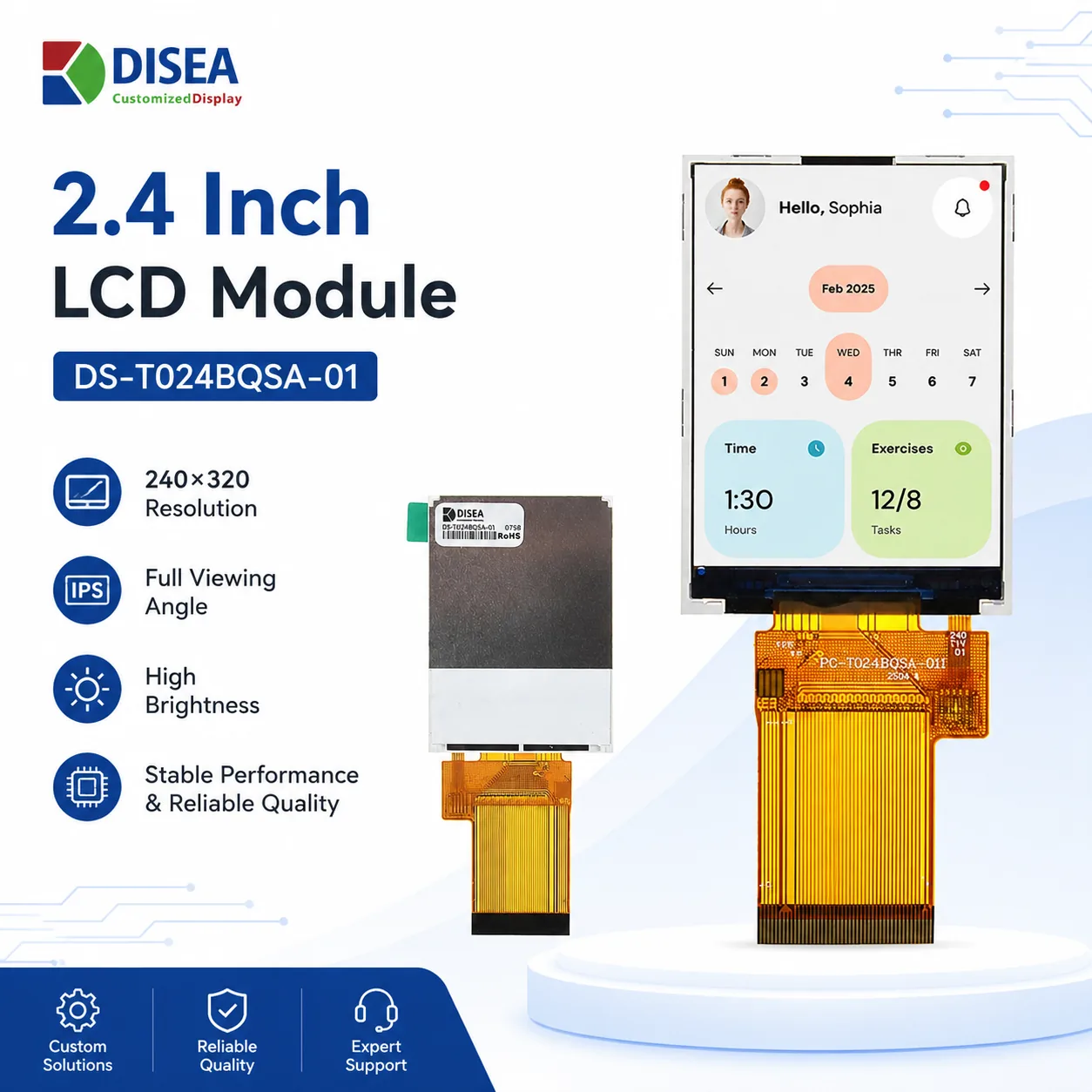

DS-T024BQSA-012.4 inch240 × 320IPS • 500 cd/m² • RGB/MCU/SPI 45-pin • No TP

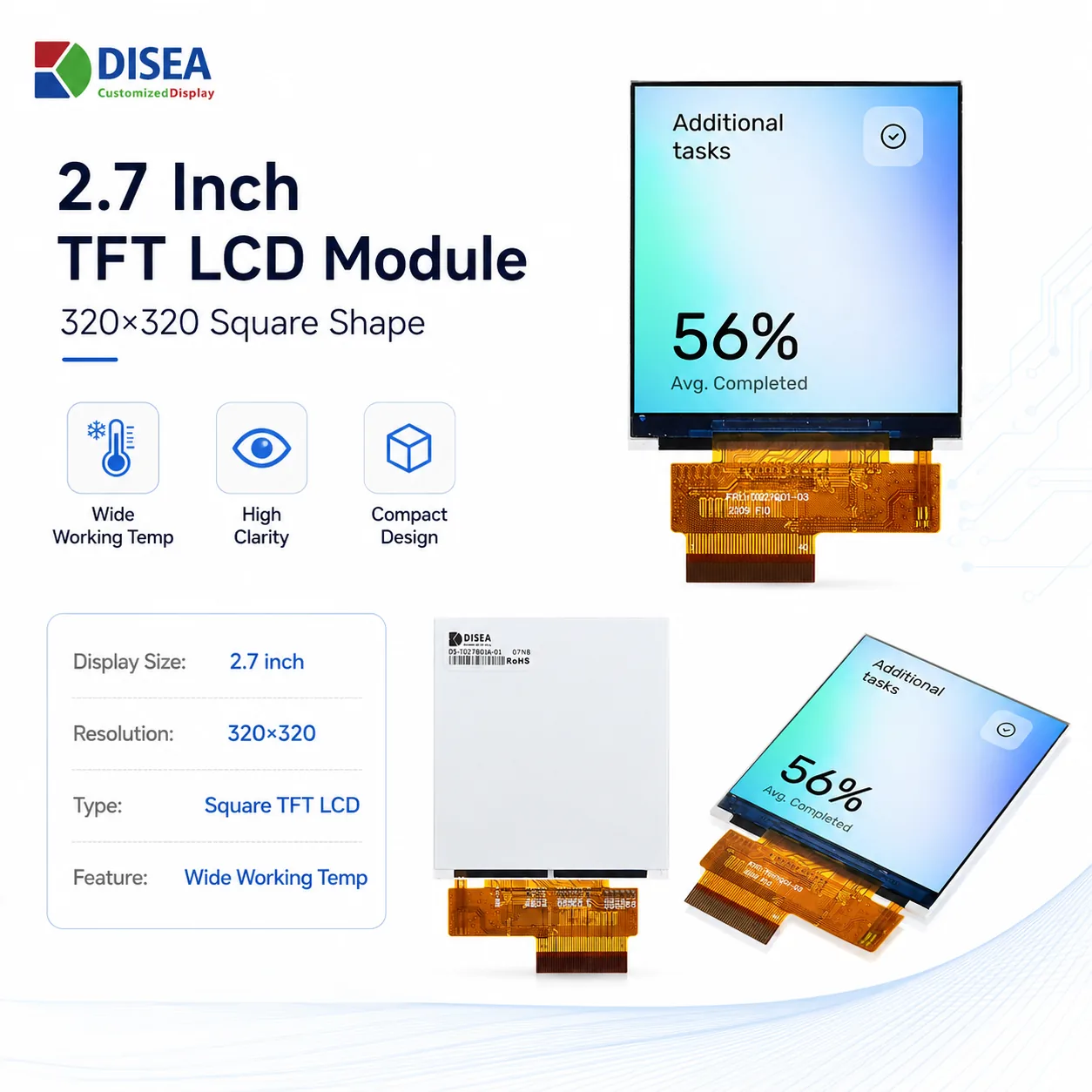

DS-T027BOIA-012.7 inch320 × 320IPS Square • 700 cd/m² • RGB 16-bit 40-pin • No TP

The published catalog currently covers 0.96 to 3.5 inch modules. Other listed size filters represent project-specific ODM review paths and are not presented as published stock models.

SHOP BY ENGINEERING REQUIREMENT

Compare TFT LCD Modules by Size and Integration Need

Use focused selection guides to compare published modules before requesting drawings, samples or a custom display review.

0.96–1.77 INCHSmall TFT LCD display modulesCompare 7 compact modules →3.5 INCH MODULES3.5 inch TFT LCD displaysCompare 8 modules →OPTICAL REQUIREMENTSHigh-brightness and sunlight-readable TFT LCDReview brightness options →ENVIRONMENTAL REVIEWWide-temperature TFT LCD requirementsReview cold and heat limits →HOST INTERFACESPI, MCU, RGB, LVDS and MIPI selectionCompare interfaces →CONTROLLER BOARDTFT LCD driver and controller boardsCheck host compatibility →TOUCH SELECTIONPCAP vs resistive touch for HMICompare touch technologies →INDUSTRIAL HMIIndustrial TFT LCD module selectionReview equipment requirements →
MODEL DATA READY

Engineering Support for Product Selection

Compare the 21 published modules above, or use the TFT LCD selection guide to define size, resolution, interface, brightness, touch, mechanical and lifecycle requirements before an ODM engineering review.

Send Product Requirements WhatsApp
21Published modules
44Display sizes
2Active filters
