240x320 portrait resolution
A practical format for compact menus, status screens, instruments and handheld user interfaces.
In Stock
2.4 INCH HIGH-BRIGHTNESS IPS TFT LCD
2.4 inch 240x320 Full Viewing Angle And High Brightness LCD Module

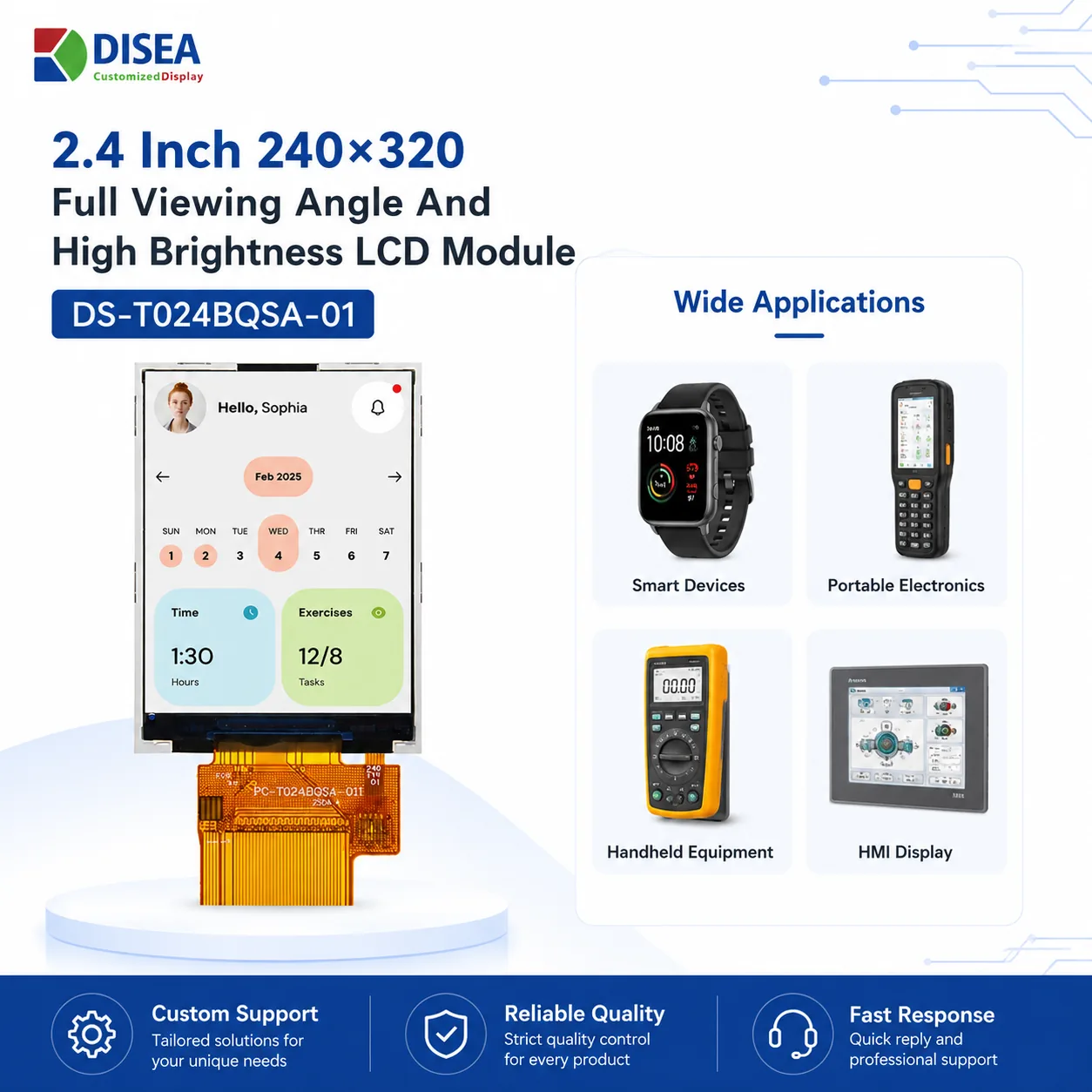

DS-T024BQSA-01 is a portrait-format IPS TFT LCD for smart devices, portable electronics, handheld equipment and compact HMI displays. It combines 240x320 resolution, 500 cd/m² luminance, an ST7789V controller and flexible RGB, MCU or SPI host integration.
Model: DS-T024BQSA-01

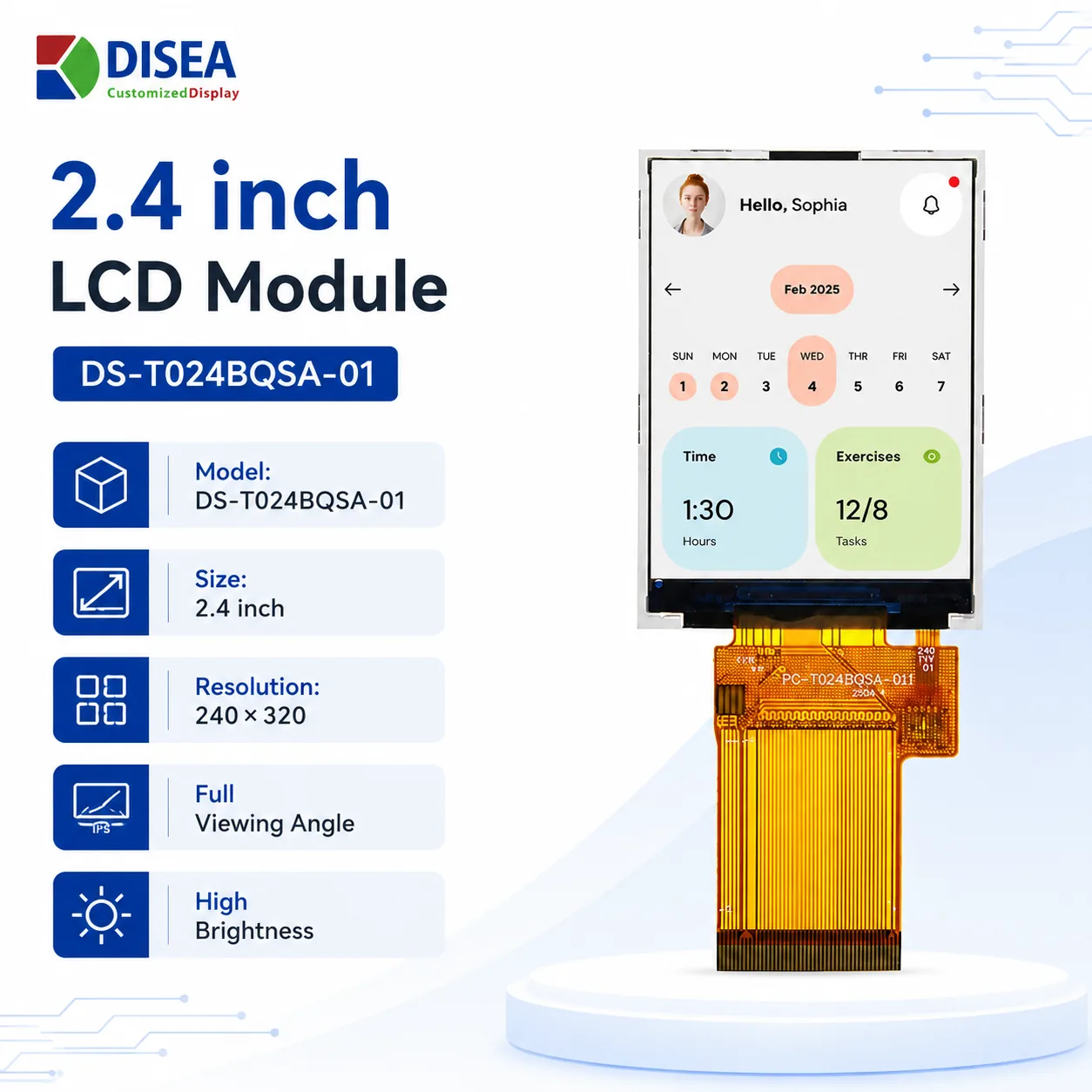

2.4 inDisplay Size
240x320Resolution
IPS TFTLCD Type
500 cd/m²Luminance
RGB/MCU/SPIInterface
PRODUCT ADVANTAGES

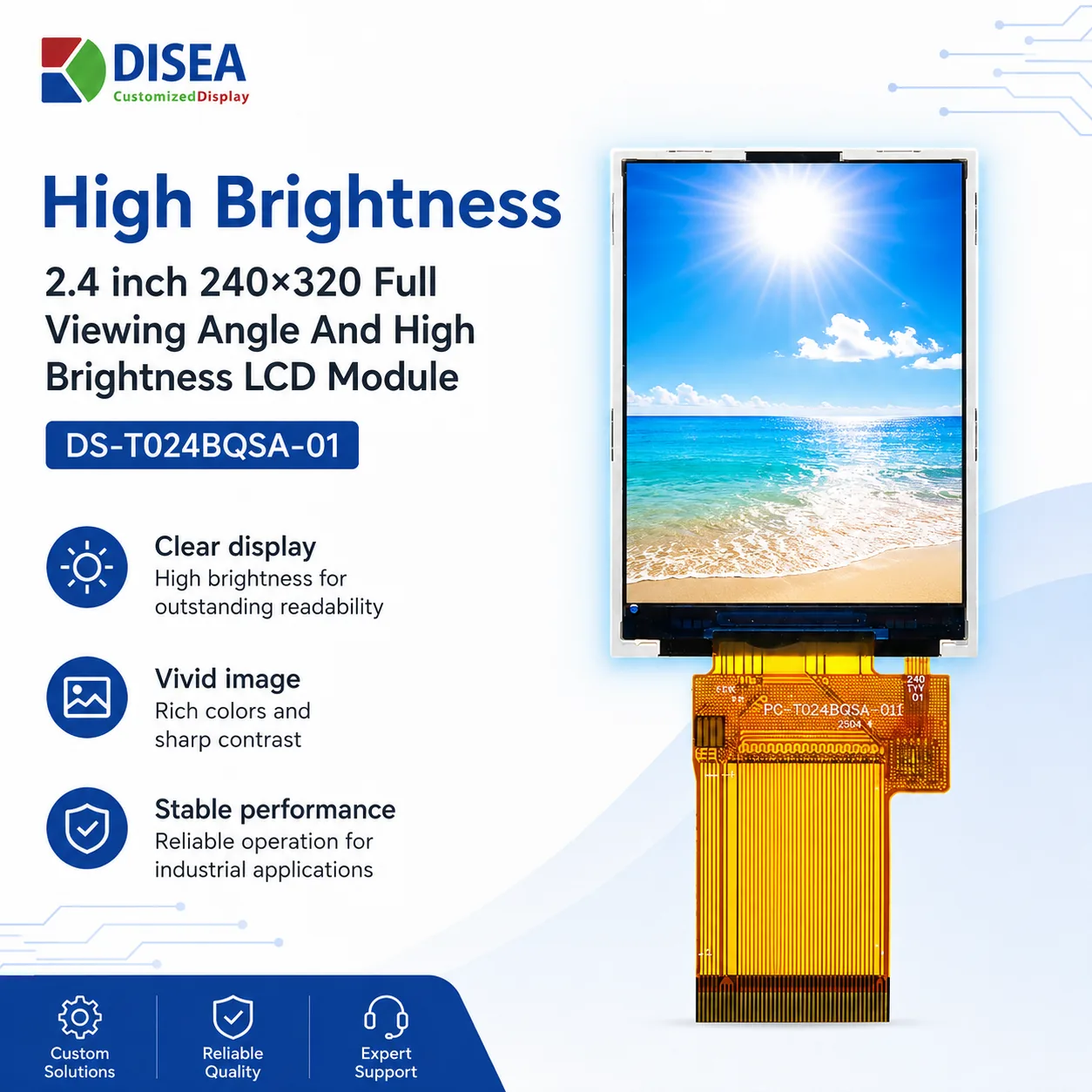

High-brightness IPS display for compact embedded products
500 cd/m² luminance
Higher brightness supports clear visibility in bright indoor and daylight-exposed environments.

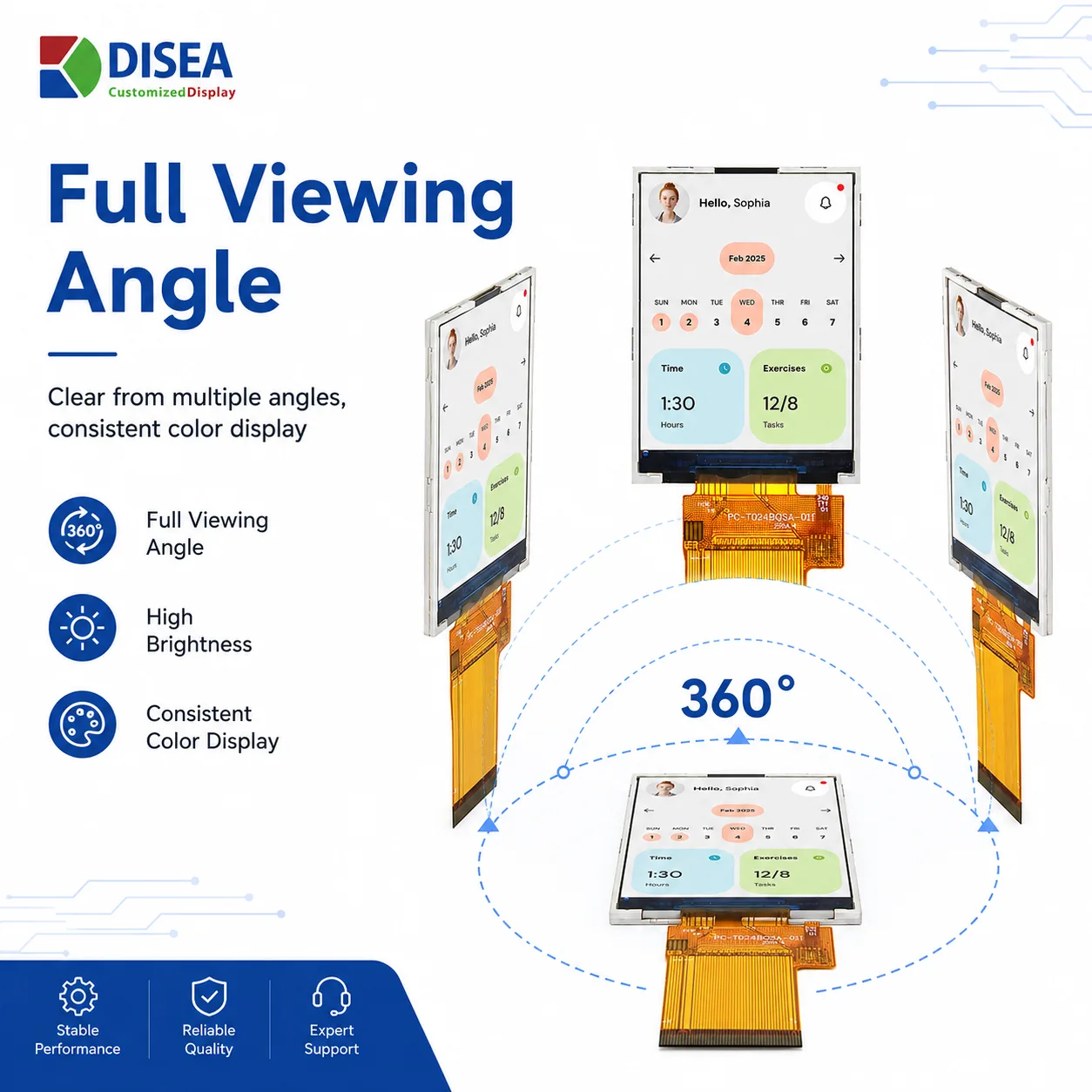

Full viewing angle
IPS technology maintains consistent color and contrast when the display is viewed from changing directions.
Flexible host integration
The ST7789V controller and 45-pin FPC support RGB, MCU or SPI integration with compatible processors.
PRODUCT GALLERY

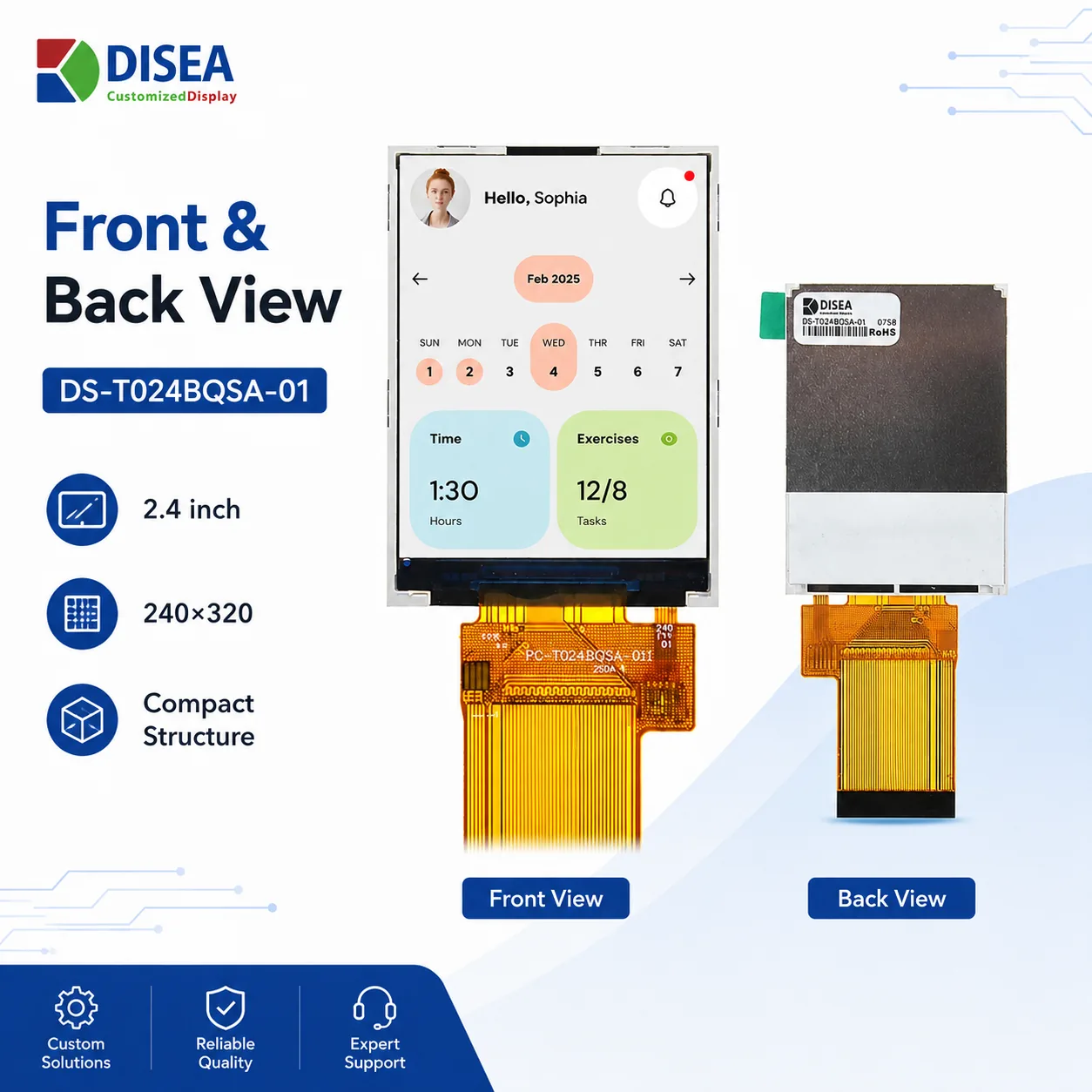

Module views and performance highlights
Images are presented in the supplied product order.
MECHANICAL DRAWING
DS-T024BQSA-01 dimensional specification

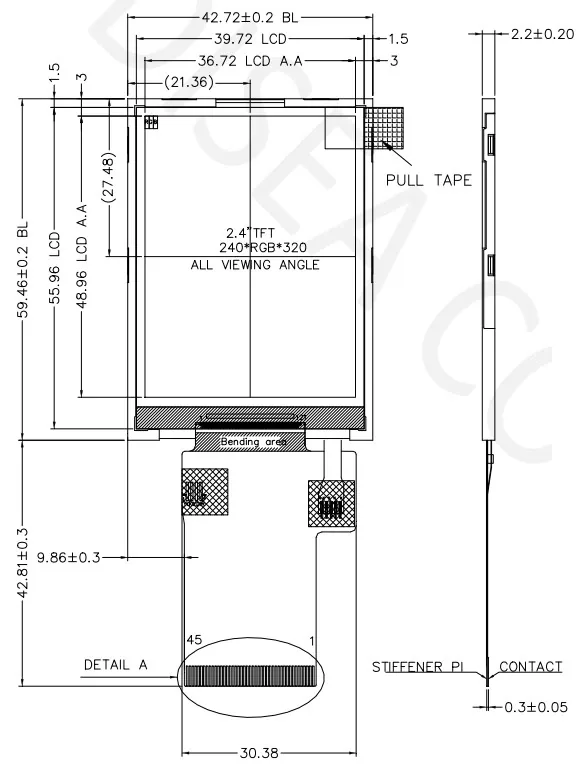

The supplied drawing identifies the 42.72 mm backlight width, 36.72 x 48.96 mm active area, 45-pin FPC and 2.20 mm nominal module thickness. Confirm the latest controlled drawing revision with DISEA before production release.
Request Drawing Confirmation
ENGINEERING SELECTION NOTES
Is DS-T024BQSA-01 the right TFT LCD for your project?
Use the specification and drawing together before PCB, enclosure or sample approval.
DS-T024BQSA-01 combines a 2.4 inch IPS TFT LCD with 240 x 320 resolution, 500 cd/m² luminance, RGB/MCU/SPI 45-pin interface and no touch panel. It is suitable for smart devices, portable electronics, handheld equipment and compact HMI displays when the outline, connector position and electrical timing match the host product.
- Controller and interface: ST7789V with RGB/MCU/SPI, 45 pin; confirm initialization, pin assignment and host compatibility.
- Optical target: 500 cd/m² luminance and full-angle IPS viewing; validate readability in the installed environment.
- Environment: operating temperature -20 to 70 °C; validate installed thermal conditions.
- Mechanical release: request the latest controlled drawing before fixing the PCB, bezel, FPC route or connector.
START YOUR PROJECT
Need a compact high-brightness IPS display?
Send your application, interface requirements and volume forecast for a technical review.
