1.3 INCH IPS SQUARE TFT LCD DISPLAY
1.3 inch 240x240 Square IPS TFT LCD Display DS-T013BQSA-01

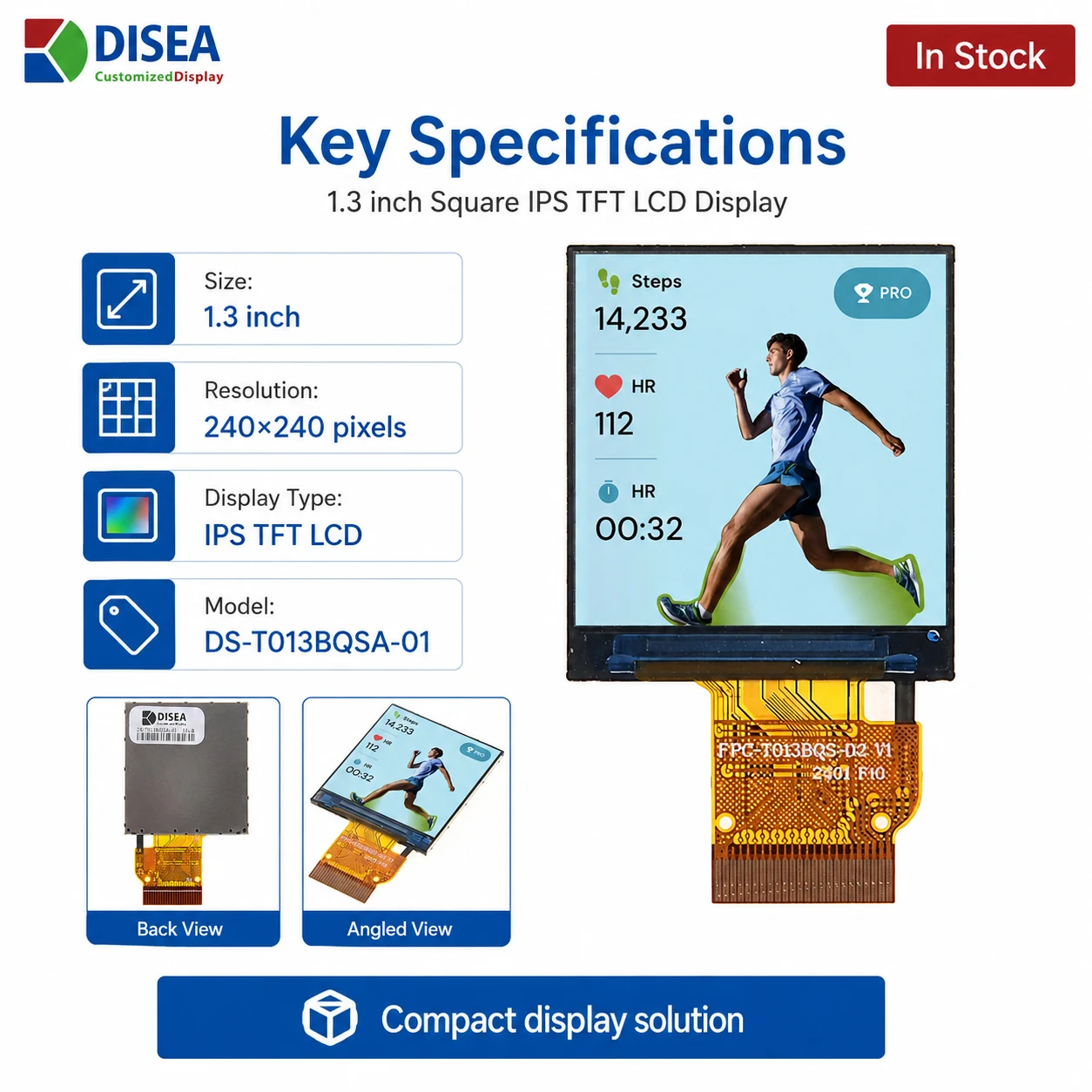

A compact IPS square display for smart wearables, handheld electronics and embedded control interfaces. DS-T013BQSA-01 combines 240x240 resolution, an ST7789 driver and SPI or 8-bit MCU interface in a 1.50 mm slim module.
Model: DS-T013BQSA-01
1.3 inDisplay Size
240x240Resolution
IPS SquareLCD Type
ST7789Driver IC
350 cd/m²Luminance
PRODUCT ADVANTAGES
Square IPS display for compact smart devices
Clear IPS image presentation
The IPS panel supports consistent visual presentation for graphics, icons and status information in user-facing embedded devices.
Simple embedded integration
The ST7789 driver supports SPI or 8-bit MCU interface options through a 24-pin FPC for practical control-board integration.
Slim mechanical profile
26.20 x 29.22 x 1.50 mm outline dimensions support compact enclosure designs while retaining a 23.40 x 23.40 mm active area.
PRODUCT GALLERY
Square module views and application highlights

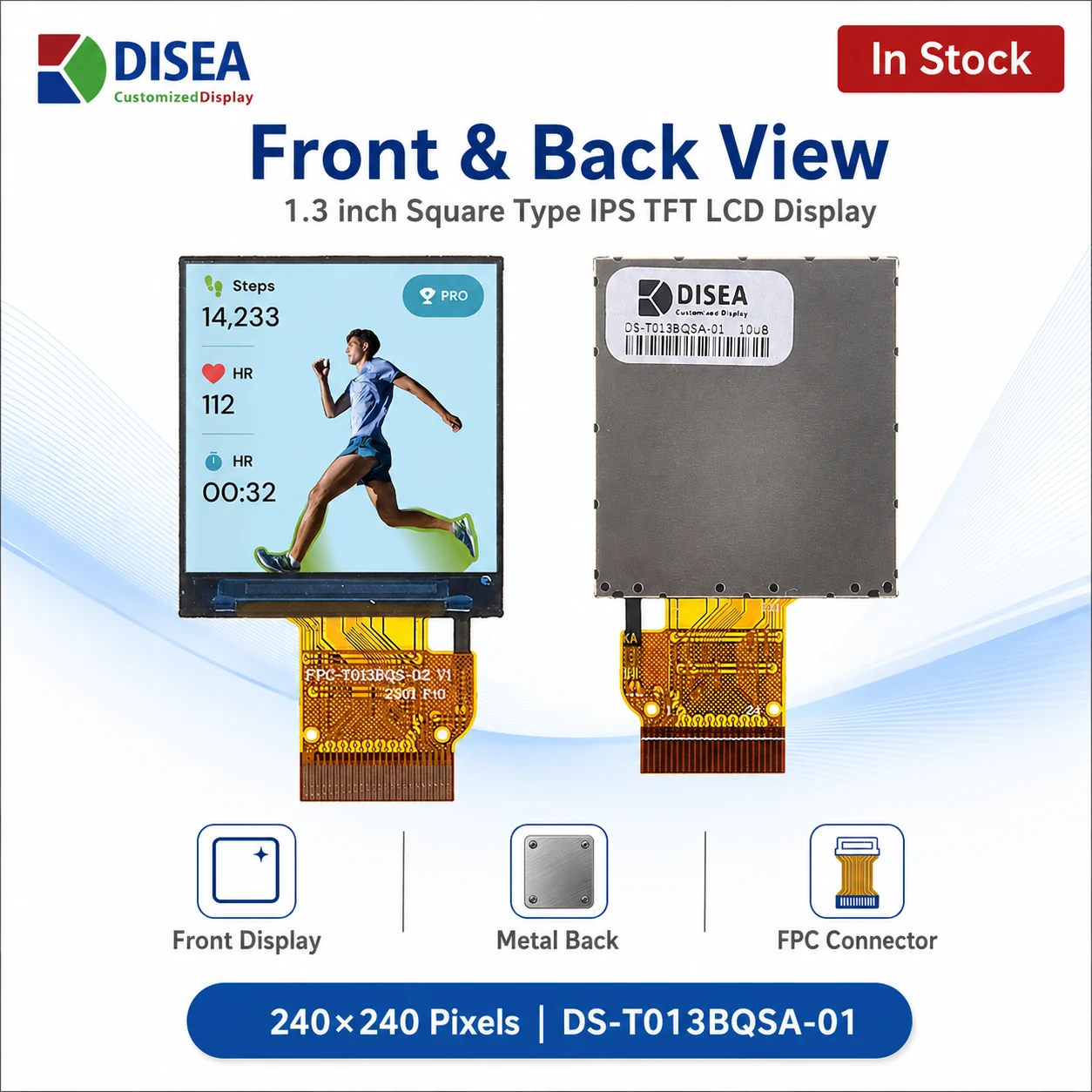

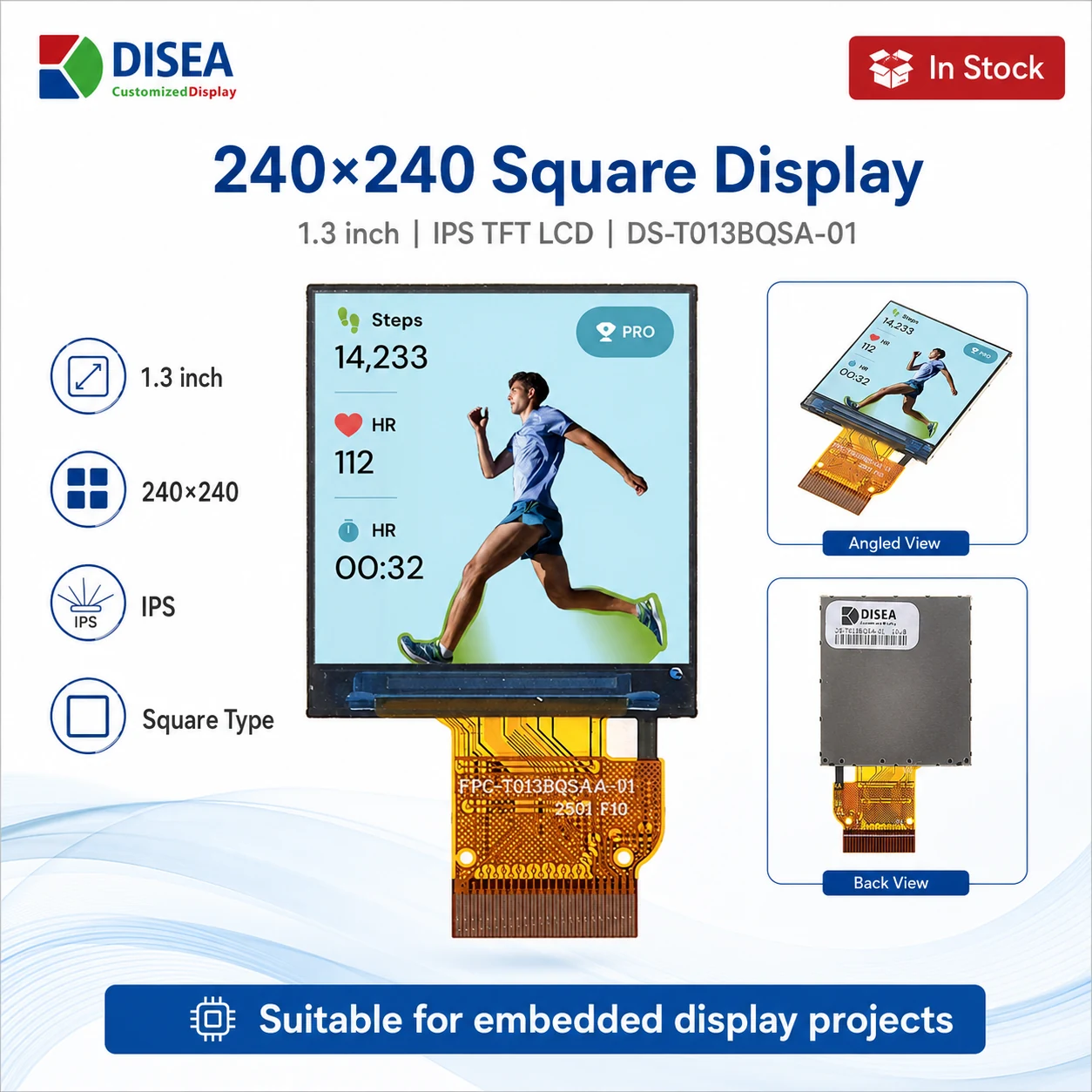

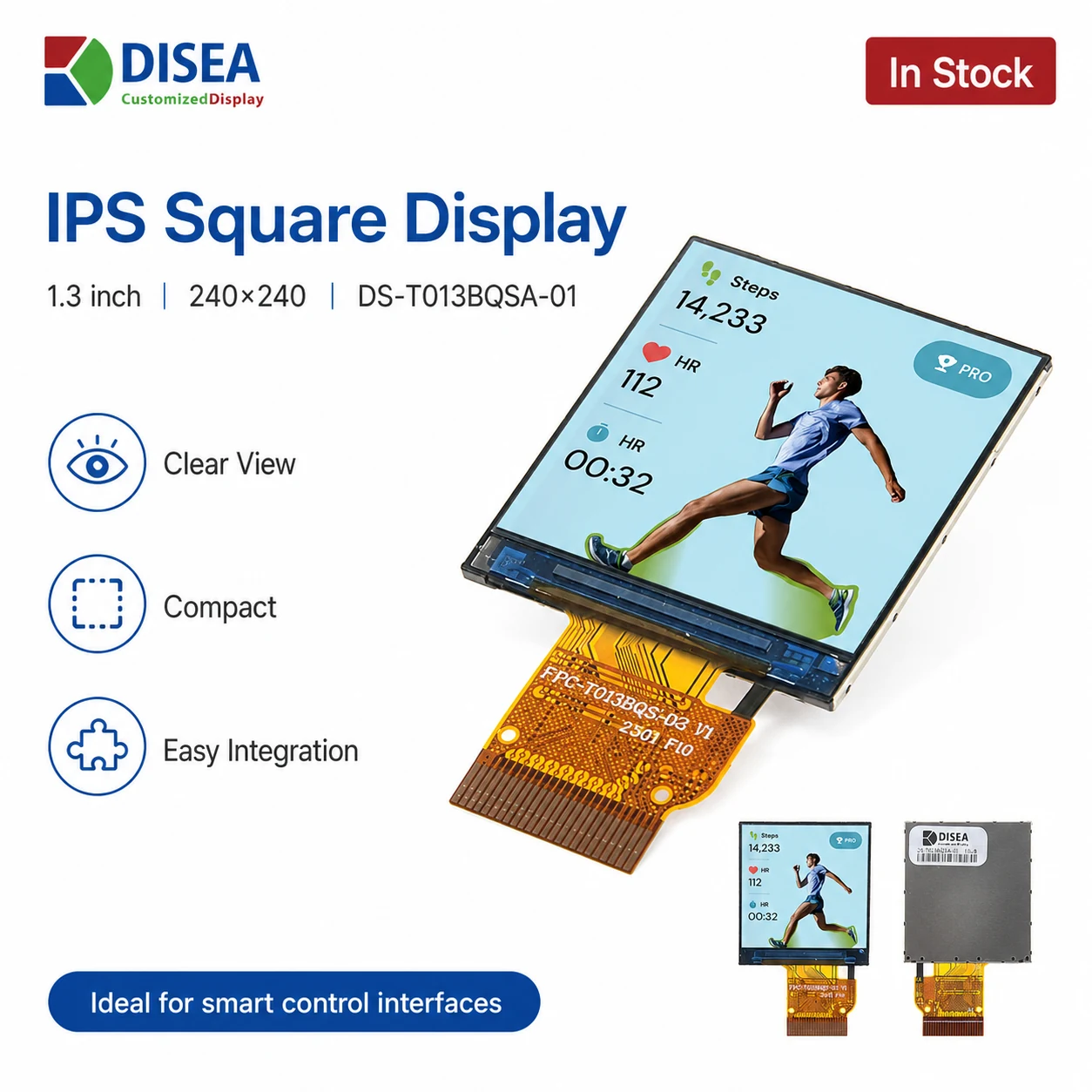

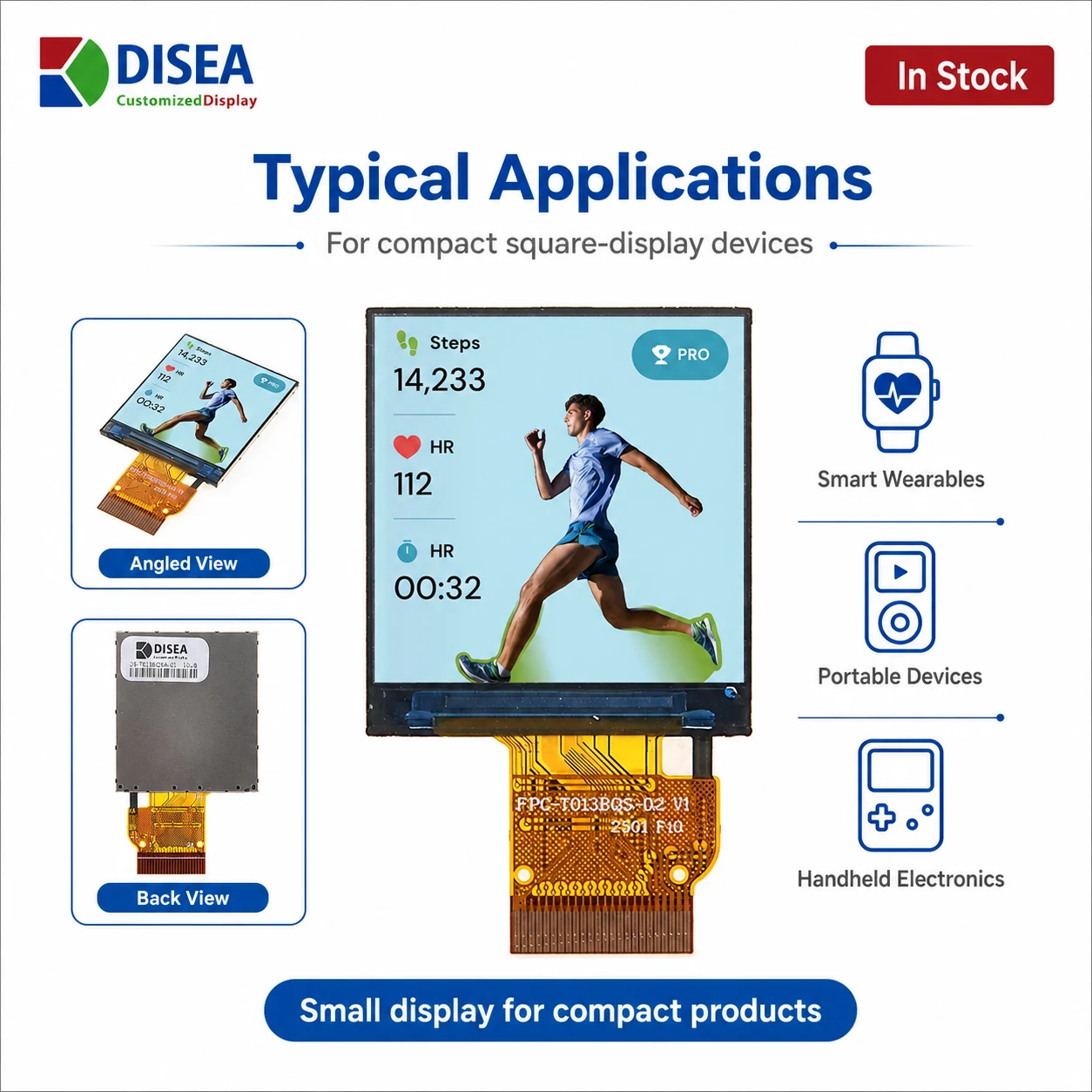

Images are presented in the supplied product order. The first image is the catalog cover image.
MECHANICAL DRAWING
Product dimensional specification

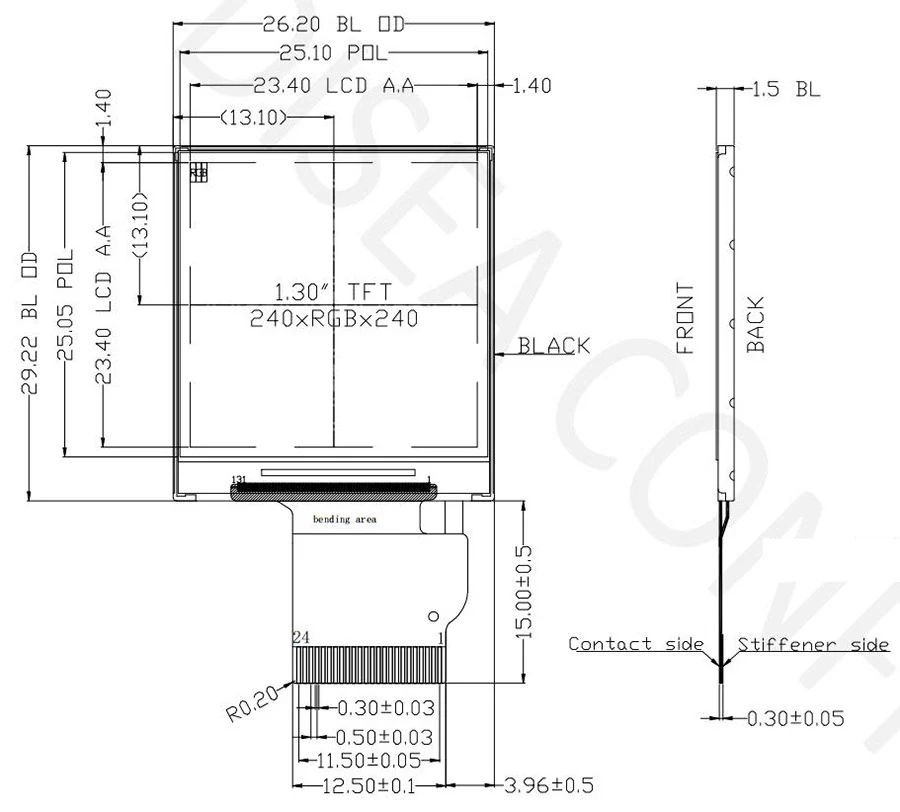

The supplied mechanical drawing shows the 26.20 x 29.22 mm module outline, 23.40 x 23.40 mm active area, FPC contact side and 1.50 mm module thickness. Confirm the final drawing revision with DISEA before production release.
Request Drawing Confirmation
ENGINEERING SELECTION NOTES
Is DS-T013BQSA-01 the Right TFT LCD for Your Project?
Use the specification and drawing together before PCB, enclosure or sample approval.
DS-T013BQSA-01 combines a 1.3 inch IPS Square with 240 x 240 resolution, SPI / 8-bit MCU, 24 pin interface and No TP. It is a candidate for compact instruments, handheld electronics, controls and embedded devices when the outline, connector position, electrical timing and environmental limits match the host product.
- Controller and interface: ST7789 with SPI / 8-bit MCU, 24 pin; confirm initialization, pin assignment and host compatibility.
- Optical and touch target: 350 cd/m² luminance with No TP; review ambient light, viewing direction and cover requirements.
- Environment: operating temperature -20 to 70 °C; validate the installed thermal and enclosure conditions.
- Mechanical release: request the latest controlled drawing before fixing the PCB, bezel, FPC route or connector.
