2.7 INCH IPS SQUARE TFT LCD
2.7 inch 320×320 Square Shape TFT LCD Module with Wide Working Temp.
DS-T027BOIA-01 is a compact square IPS TFT LCD for industrial controls, smart devices and portable terminals. It combines 320x320 resolution, 700 cd/m² luminance, an ILI9488 controller and an RGB 16-bit 40-pin interface.
Model: DS-T027BOIA-01
2.7 inDisplay Size
320x320Resolution
IPS SquareLCD Type
700 cd/m²Luminance
RGB 16-bitInterface
PRODUCT ADVANTAGES
Compact square display for embedded interfaces
700 cd/m² luminance
Supports clear visibility in bright indoor and daylight-exposed installations.
Full viewing direction
The IPS panel maintains consistent color and contrast from changing viewing directions.
RGB host integration
The ILI9488 controller and RGB 16-bit 40-pin FPC support integration with compatible processors.

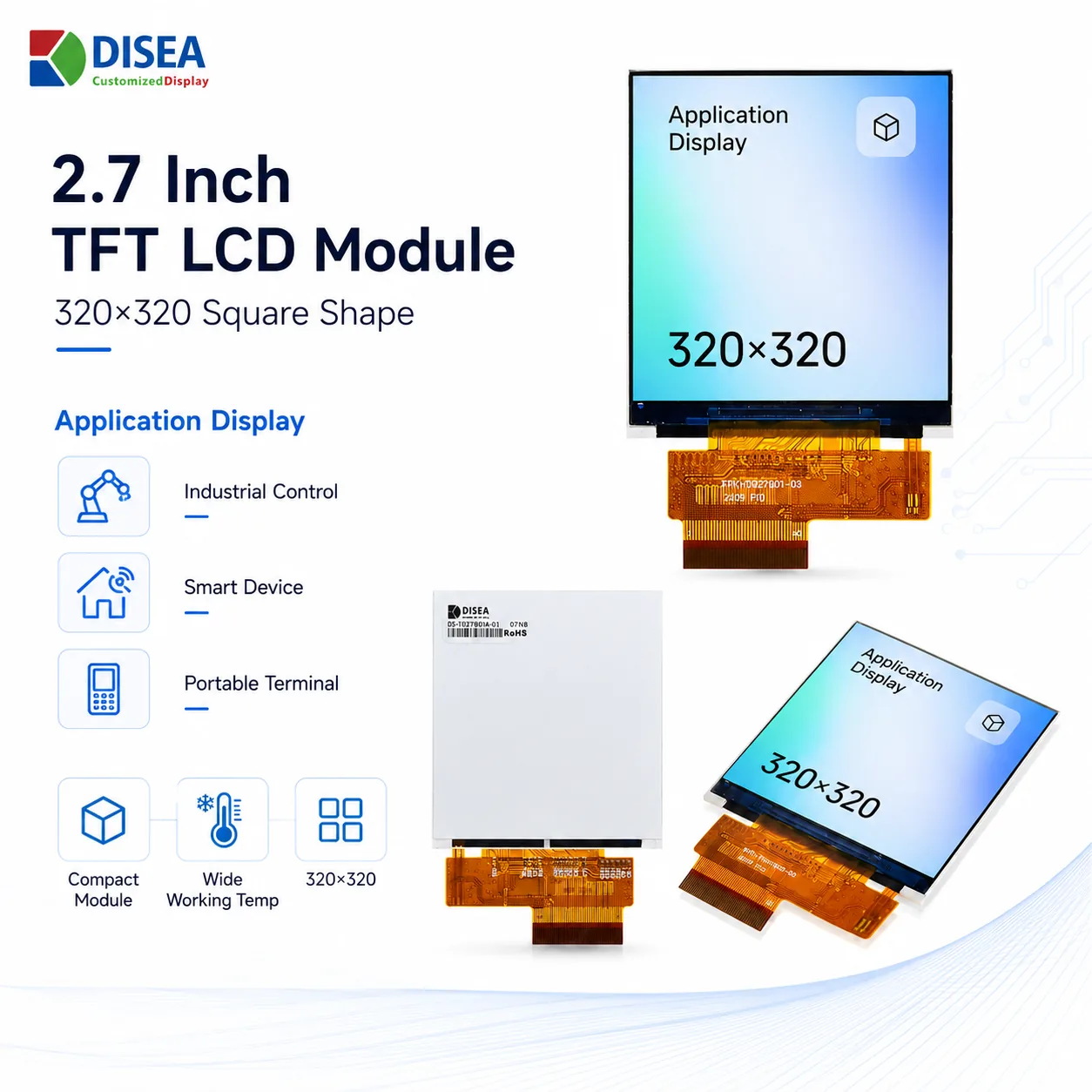

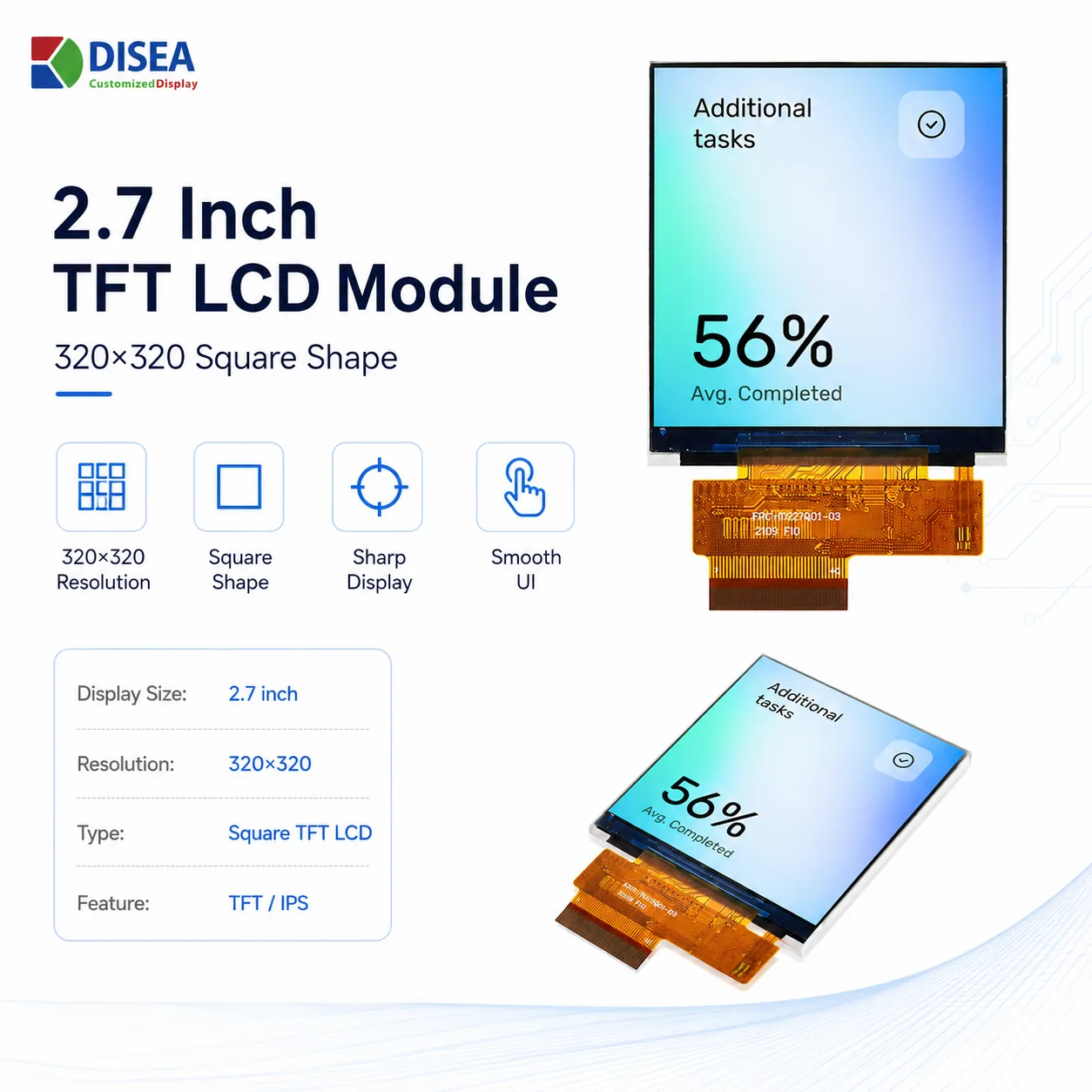

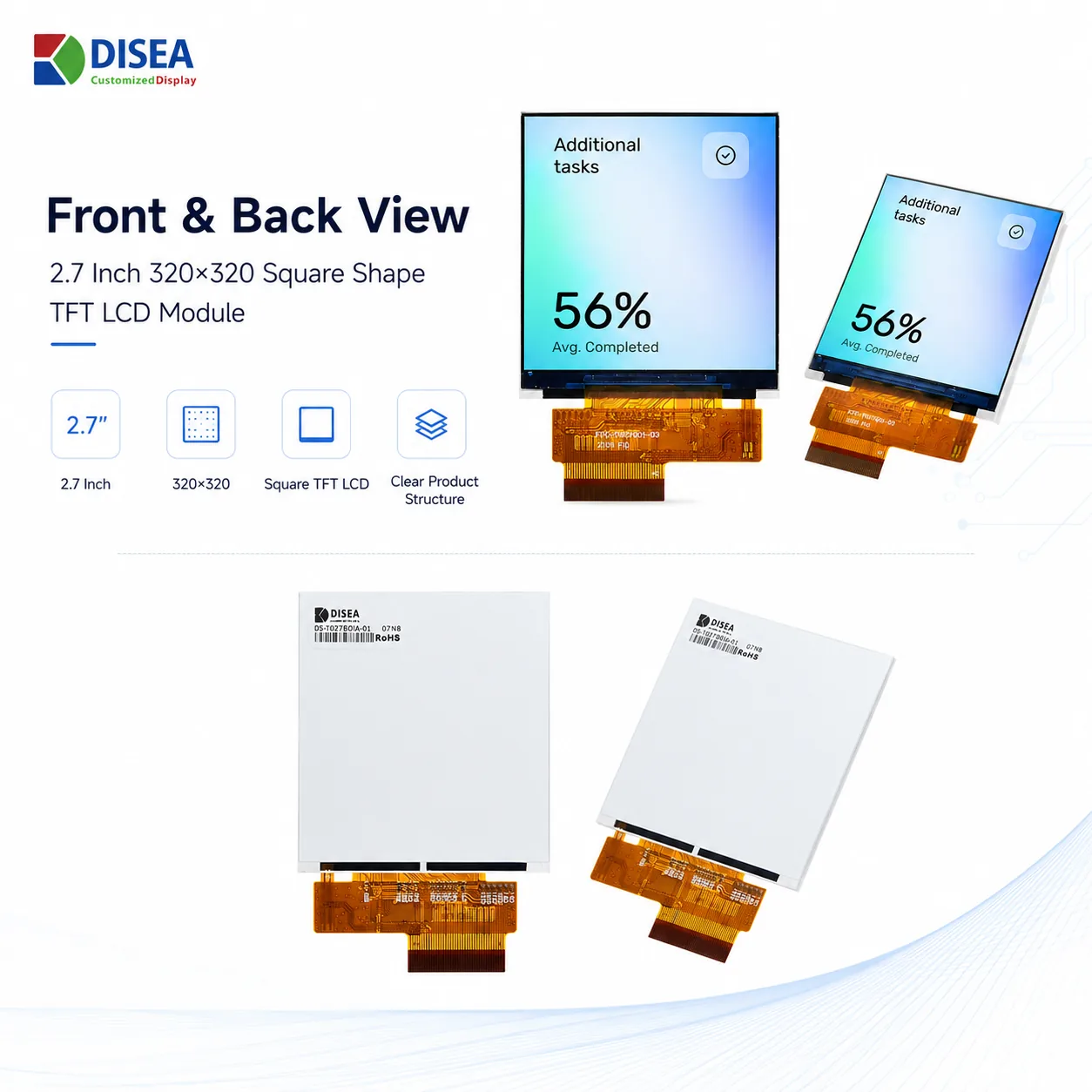

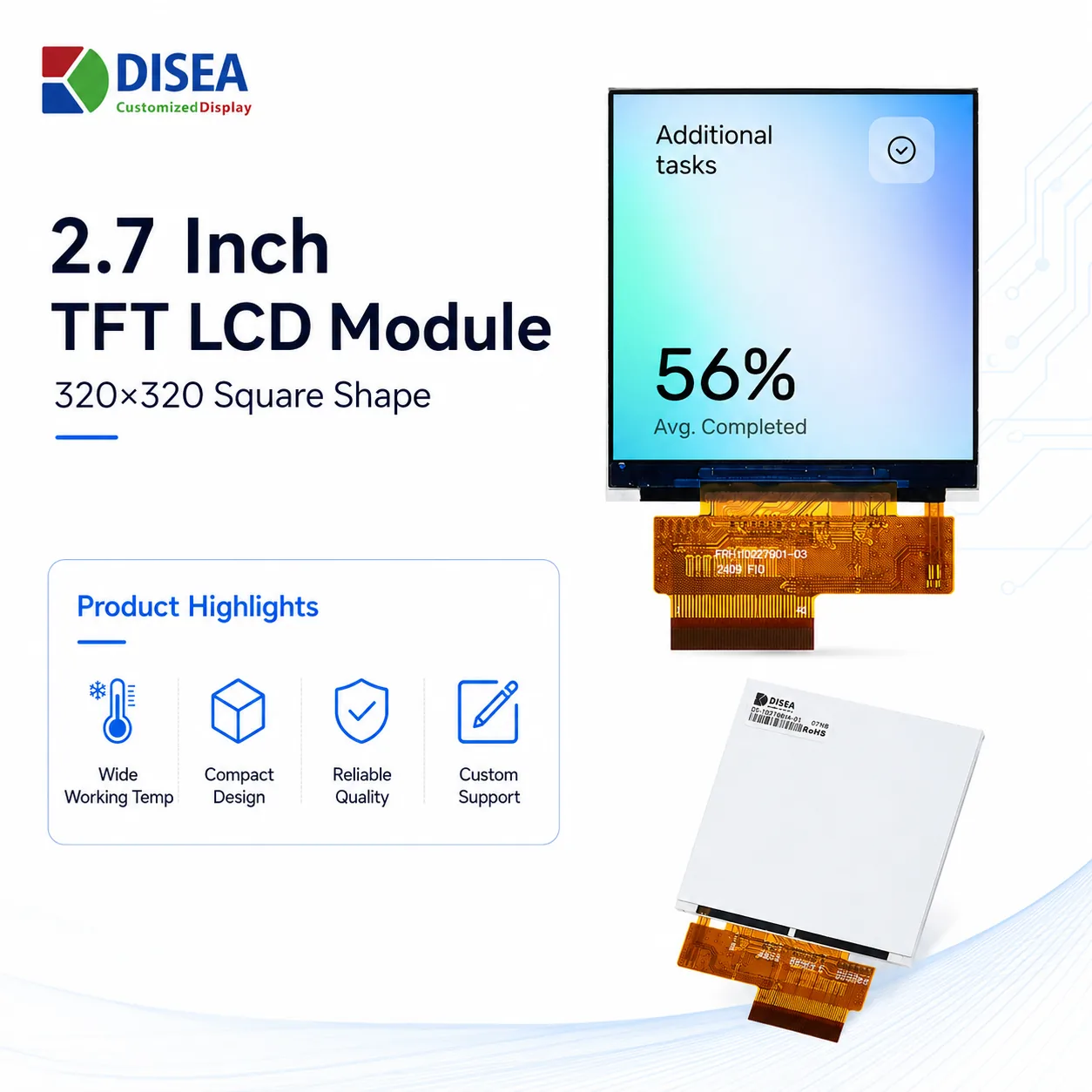

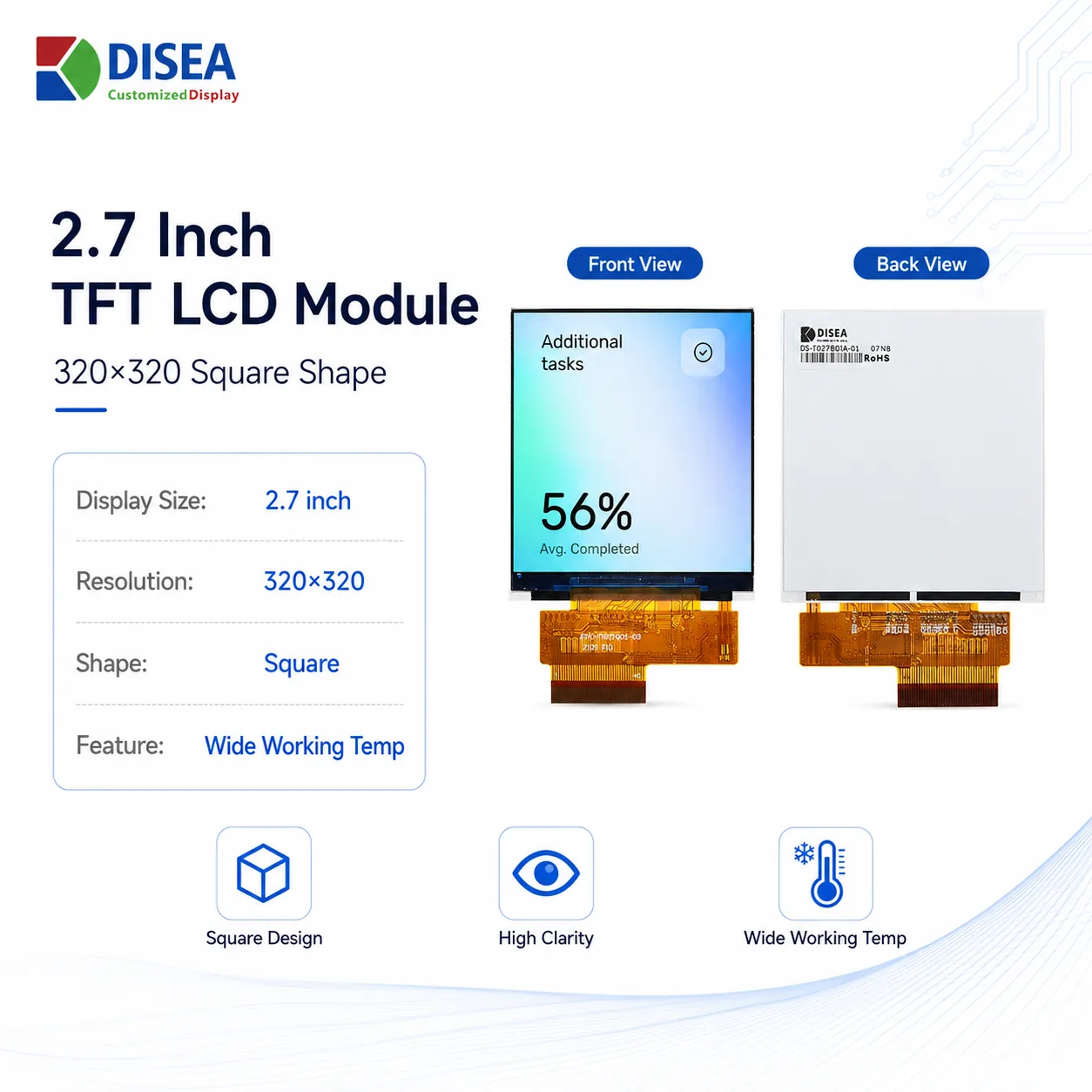

PRODUCT GALLERY
Module views and performance highlights
Images are presented in the supplied product order.
MECHANICAL DRAWING
DS-T027BOIA-01 dimensional specification

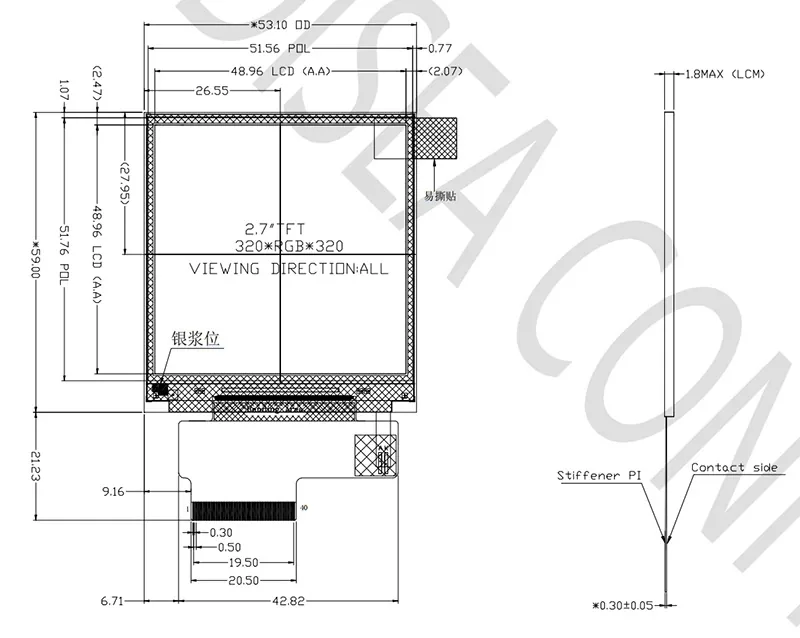

The supplied seventh image identifies the 53.10 x 59.00 mm outline, 48.96 x 48.96 mm active area, 40-pin FPC, contact side and 1.80 mm maximum module thickness. Confirm the latest controlled drawing revision with DISEA before production release.
Request Drawing Confirmation
ENGINEERING SELECTION NOTES
Is DS-T027BOIA-01 the right TFT LCD for your project?
Use the specification and drawing together before PCB, enclosure or sample approval.
DS-T027BOIA-01 combines a 2.7 inch IPS square TFT LCD with 320 x 320 resolution, 700 cd/m² luminance, RGB 16-bit 40-pin interface and no touch panel. Typical application examples include industrial controls, smart devices and portable terminals when the outline, connector position and timing match the host product.
- Controller and interface: ILI9488 with RGB 16-bit, 40 pin; confirm initialization, pin assignment and host timing.
- Optical target: 700 cd/m² luminance and all-direction IPS viewing; validate readability in the installed environment.
- Environment: operating temperature -20 to 70 °C and storage temperature -30 to 80 °C.
- Mechanical release: request the latest controlled drawing before fixing the PCB, bezel, FPC route or connector.
