Small mechanical footprint
13.50 × 27.95 × 1.87 mm outline dimensions support compact handheld, wearable and portable equipment designs.
In Stock

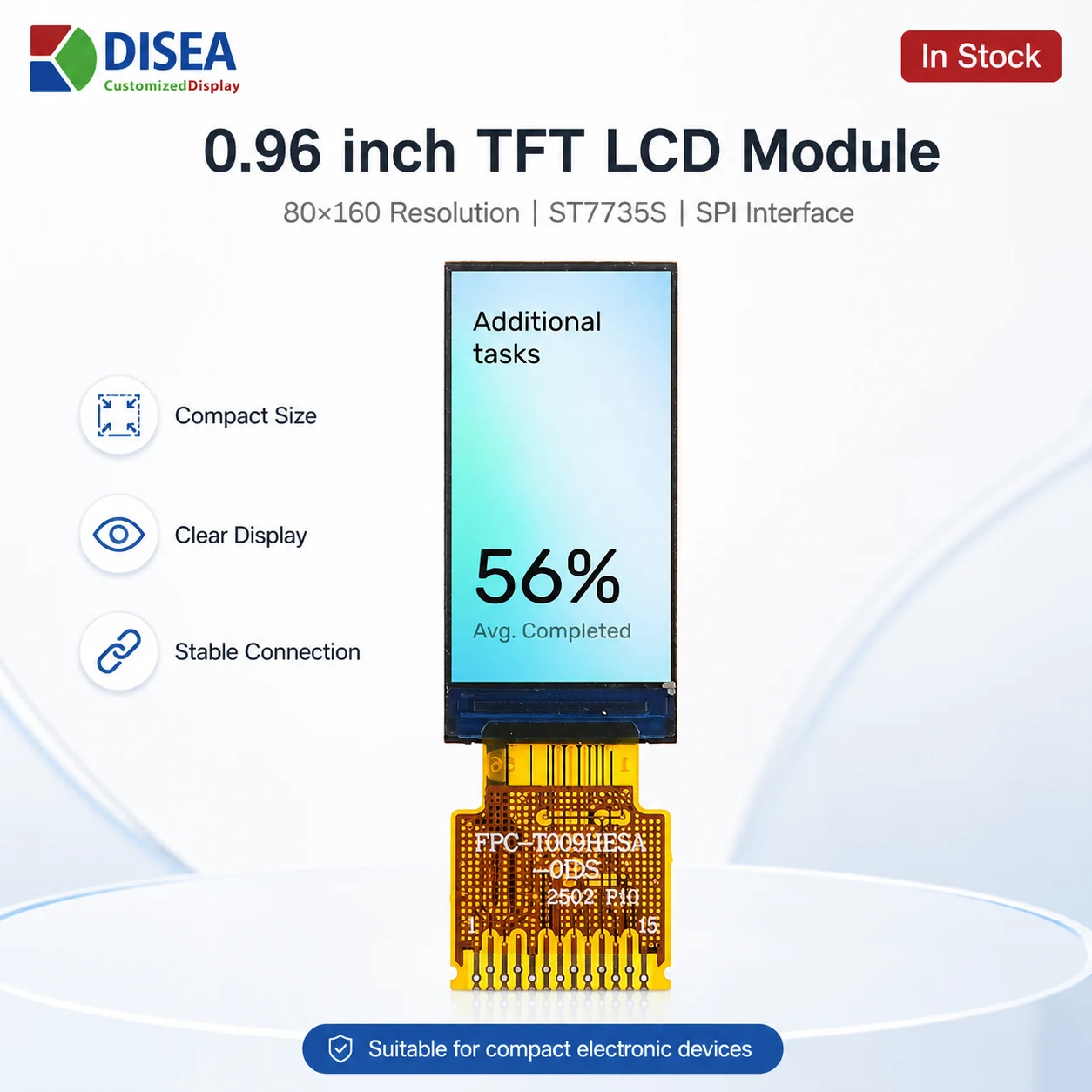

0.96 INCH IPS TFT LCD MODULE
0.96 inch 80x160 IPS TFT LCD Module DS-T009HESA-01
A compact portrait IPS display module for space-constrained embedded products. DS-T009HESA-01 combines 80×160 resolution, an ST7735S driver and a 4-SPI 13-pin interface in a 1.87 mm slim profile.

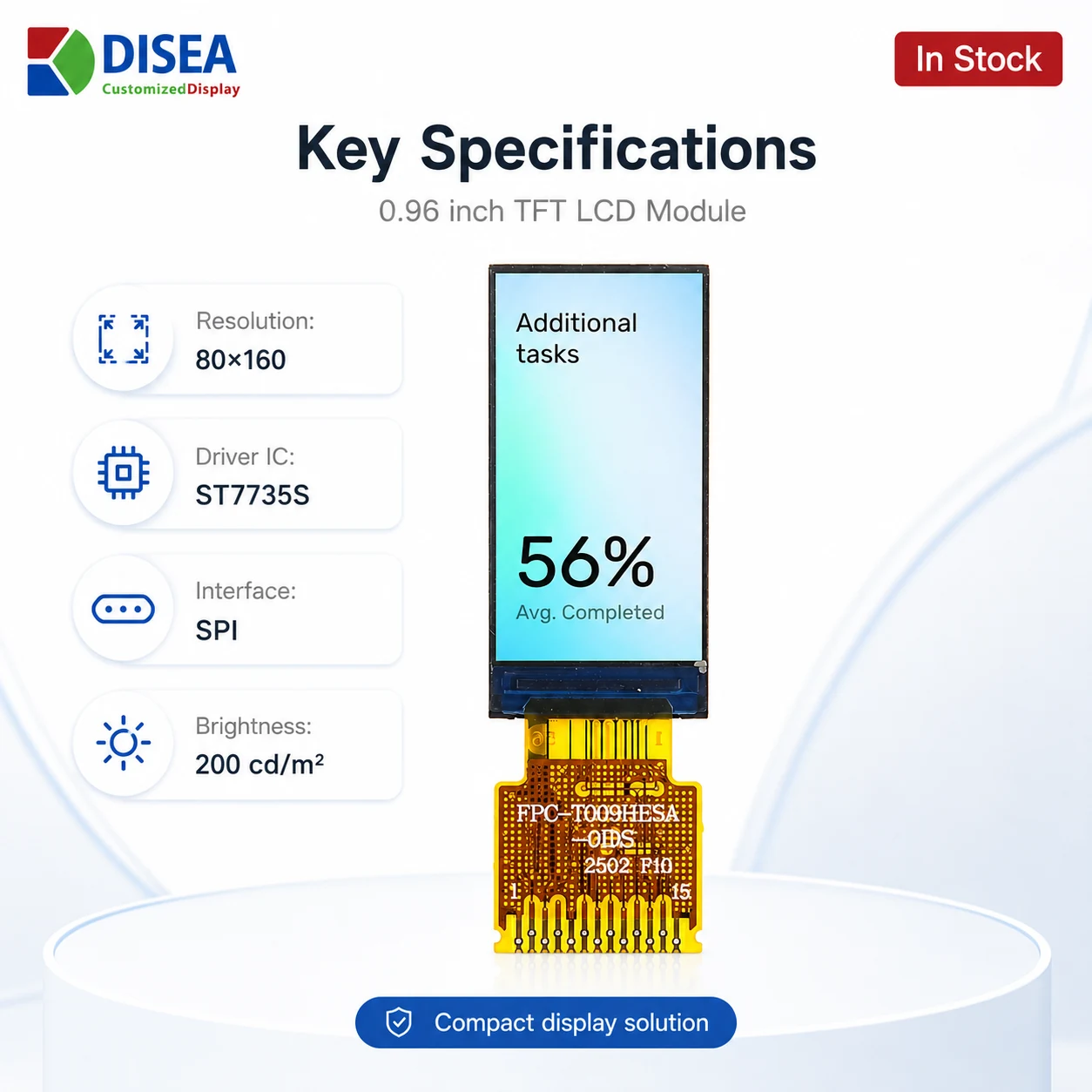

Model: DS-T009HESA-01
0.96 inDisplay Size
80×160Resolution
ST7735SDriver IC
4-SPI13-pin Interface
200 cd/m²Luminance
PRODUCT ADVANTAGES
Compact display performance for embedded designs
IPS viewing performance
The IPS LCD structure provides clear image presentation for portrait user interfaces and information displays.

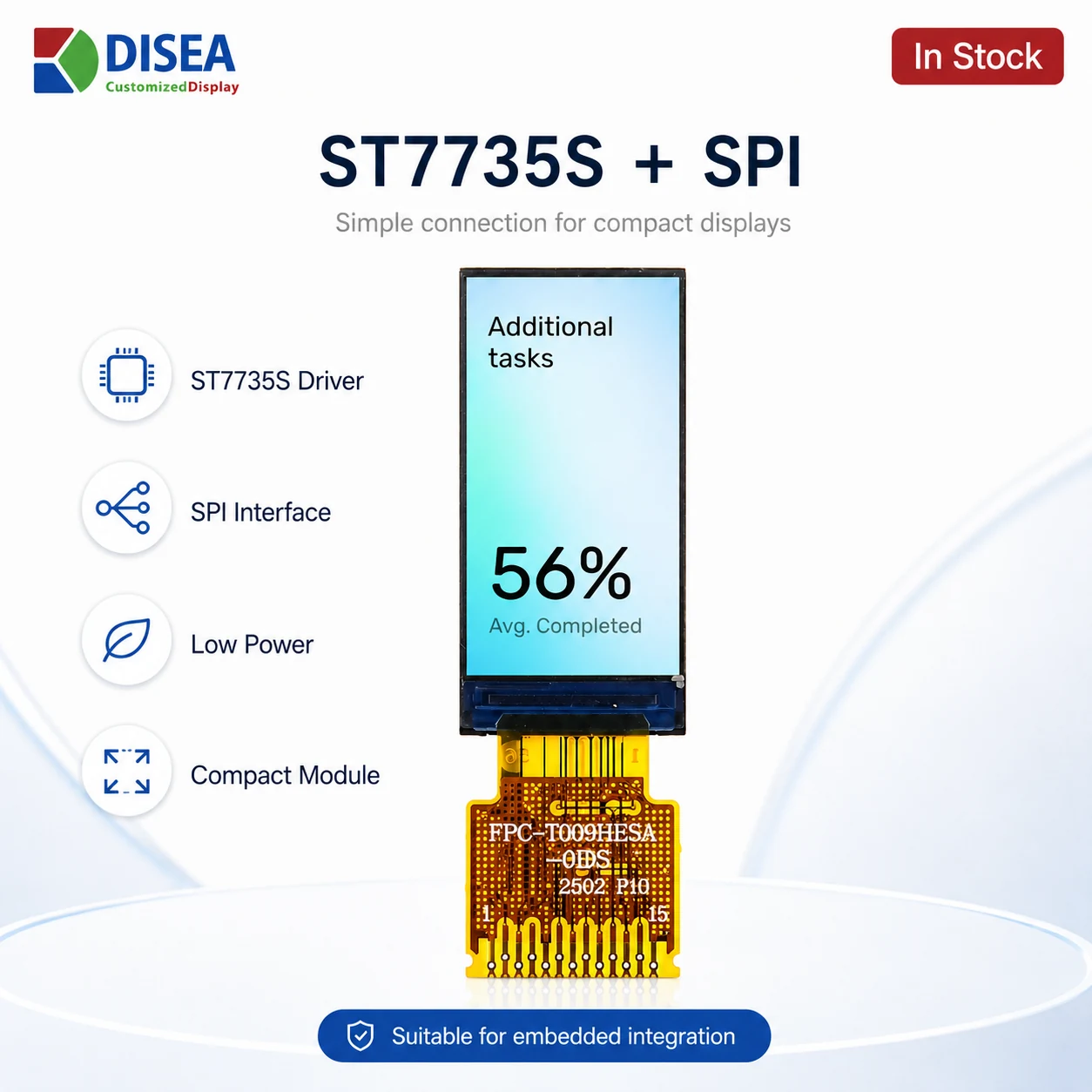

Simple SPI integration
ST7735S driver and 4-SPI 13-pin interface help simplify control-board integration for low-pin-count embedded systems.
Industrial temperature range
Specified for −20 to 70 °C operation and −30 to 80 °C storage for a broad range of compact electronics applications.

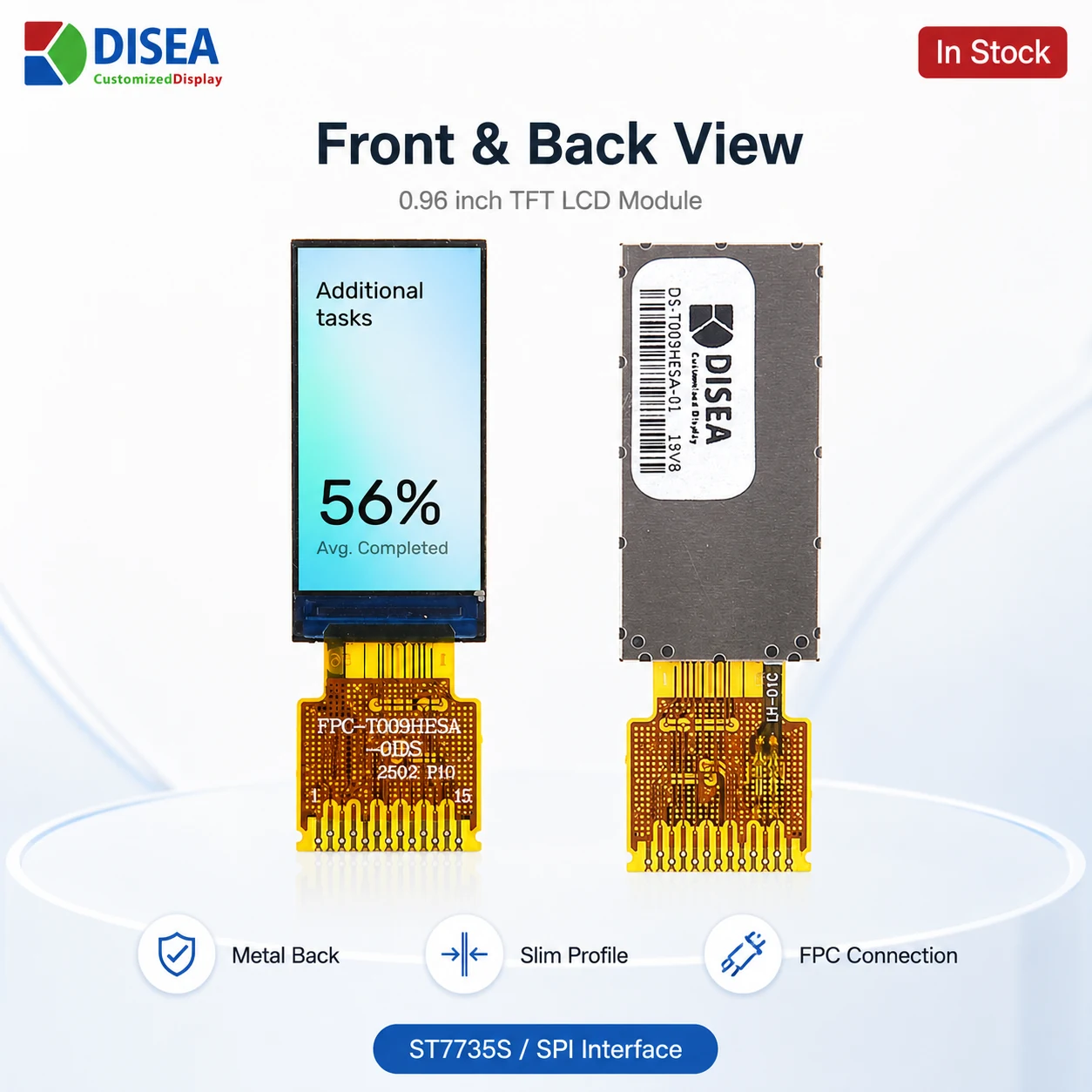

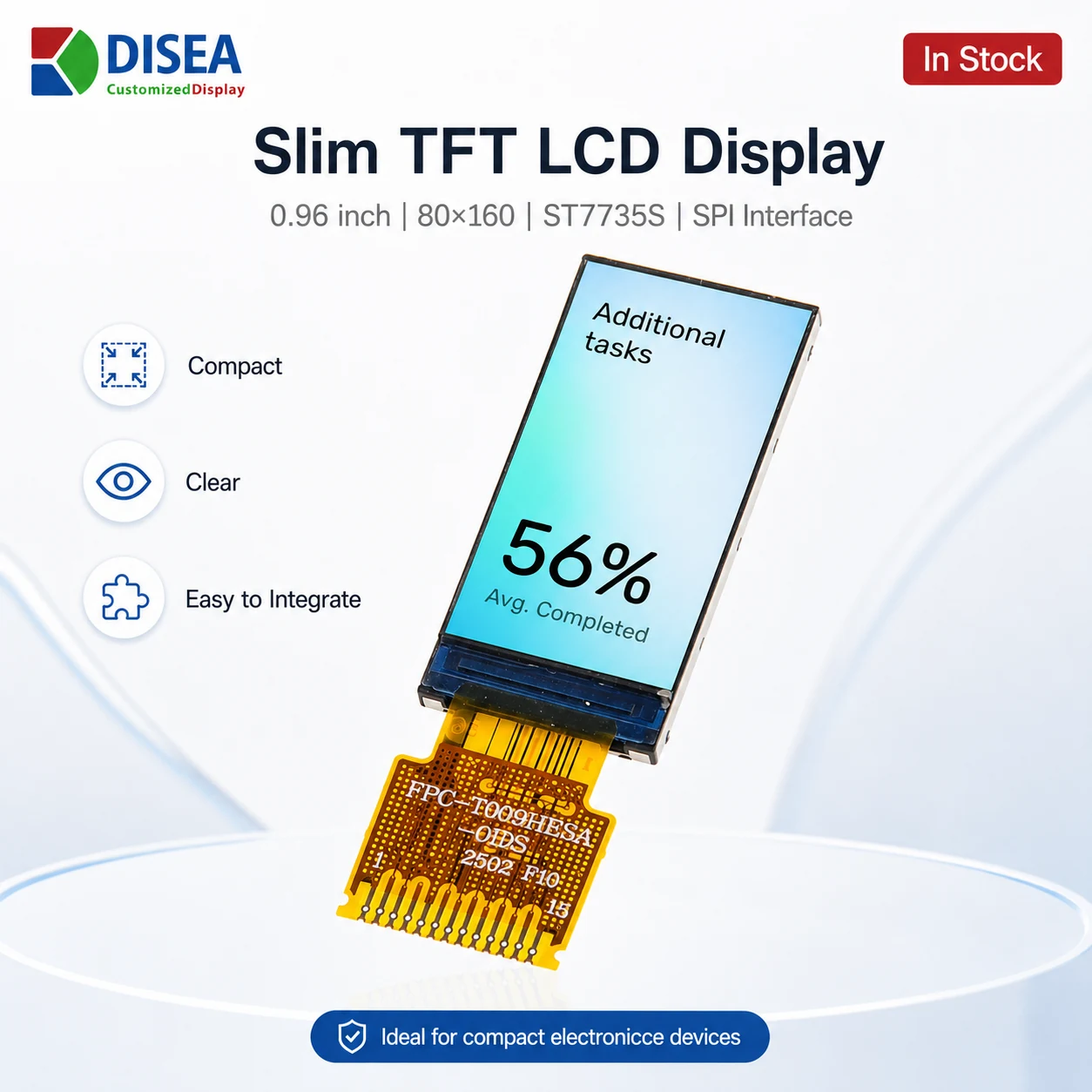

PRODUCT GALLERY
Module views and application highlights
Images are presented in the supplied product order. The first image is the catalog cover image.

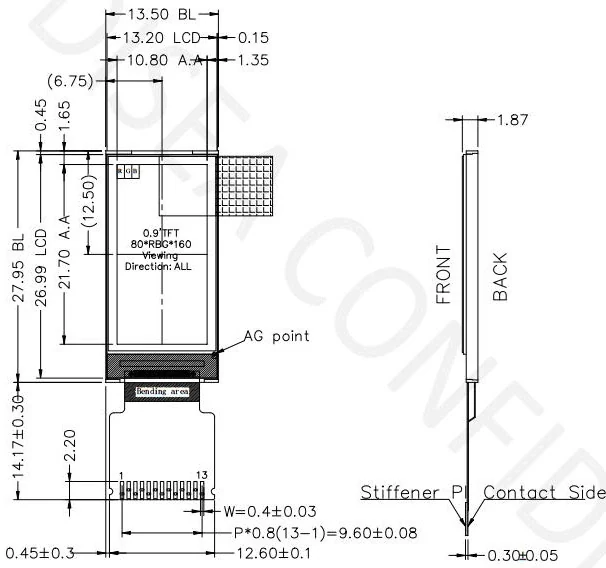

MECHANICAL DRAWING
Product dimensional specification
The supplied mechanical drawing shows the module outline, active area, LCD area, FPC contact side and 1.87 mm thickness. Confirm the final drawing revision with DISEA before production release.
Request Drawing Confirmation
ENGINEERING SELECTION NOTES
Is DS-T009HESA-01 the Right TFT LCD for Your Project?
Use the specification and drawing together before PCB, enclosure or sample approval.

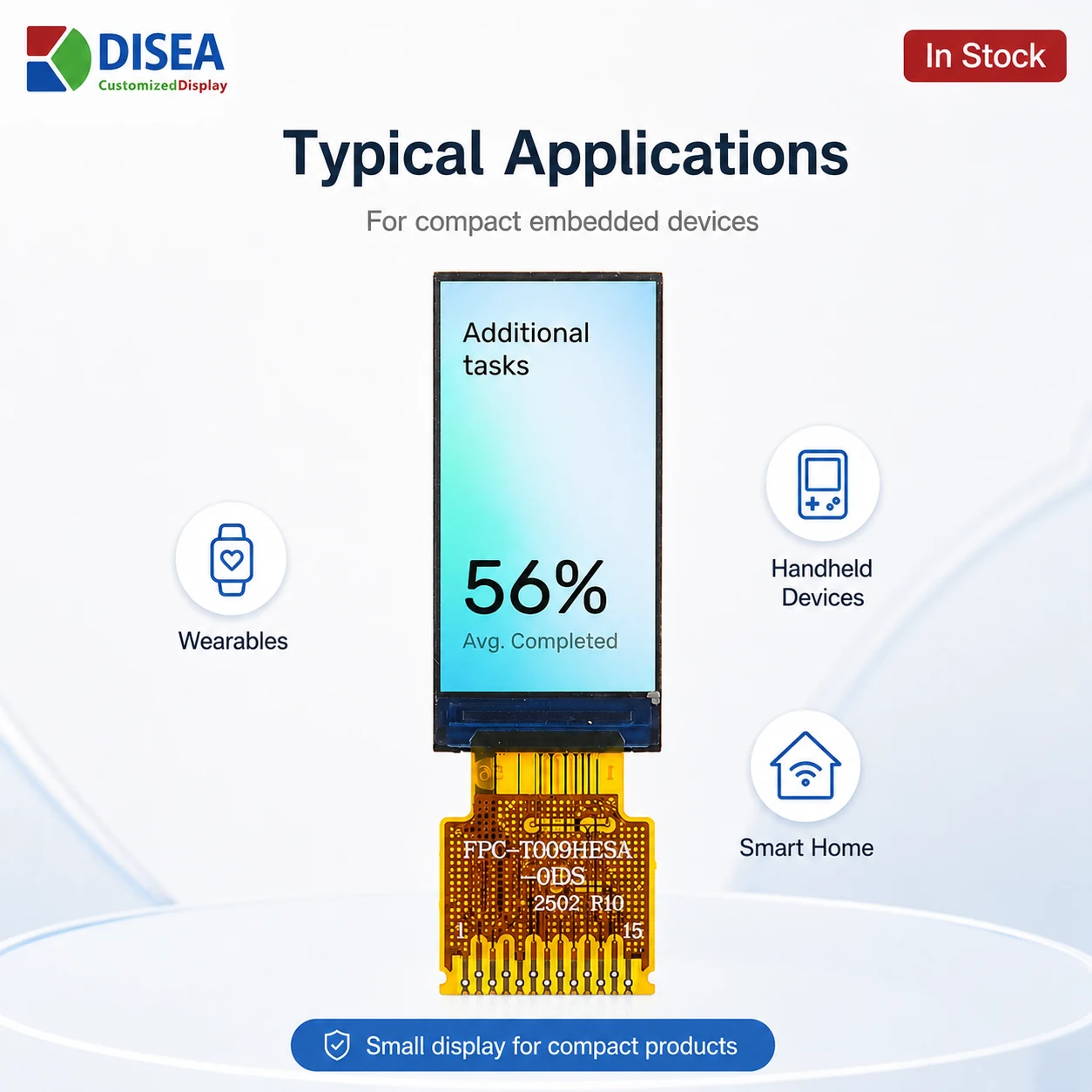

DS-T009HESA-01 combines a 0.96 inch IPS with 80 × 160 resolution, 4-SPI, 13 pin interface and No TP. It is a candidate for compact instruments, handheld electronics, controls and embedded devices when the outline, connector position, electrical timing and environmental limits match the host product.
- Controller and interface: ST7735S with 4-SPI, 13 pin; confirm initialization, pin assignment and host compatibility.
- Optical and touch target: 200 cd/m² luminance with No TP; review ambient light, viewing direction and cover requirements.
- Environment: operating temperature −20 to 70 °C; validate the installed thermal and enclosure conditions.
- Mechanical release: request the latest controlled drawing before fixing the PCB, bezel, FPC route or connector.
START YOUR PROJECT
Need a compact 0.96 inch display for your product?
Send your application, display orientation, interface requirements and volume forecast for a technical review.
