1.0 INCH IPS ROUND TFT LCD MODULE
1.0 inch 128x115 IPS Round TFT LCD Module DS-T010BCSA-01
A compact IPS round display for smart control interfaces and space-constrained embedded products. DS-T010BCSA-01 combines a 128×115 circular viewing area, ST7735S driver and SPI or 8-bit MCU interface in a 1.86 mm slim module.
Model: DS-T010BCSA-01
1.0 inDisplay Size
128×115Resolution
IPS RoundLCD Type
ST7735SDriver IC
350 cd/m²Luminance
PRODUCT ADVANTAGES
Round IPS display for compact, refined interfaces
Clear IPS image presentation
The IPS panel supports consistent image presentation for user-facing dials, status screens and graphics in compact electronic products.
Flexible embedded integration
ST7735S driver support with SPI or 8-bit MCU interface and a 24-pin FPC provides practical options for embedded control-board design.
Slim mechanical profile
26.71 × 26.22 × 1.86 mm outline dimensions help reduce enclosure depth while retaining a 24.36 × 21.89 mm active area.
PRODUCT GALLERY
Round module views and application highlights
Images are presented in the supplied product order. The first image is the catalog cover image.
MECHANICAL DRAWING
Product dimensional specification

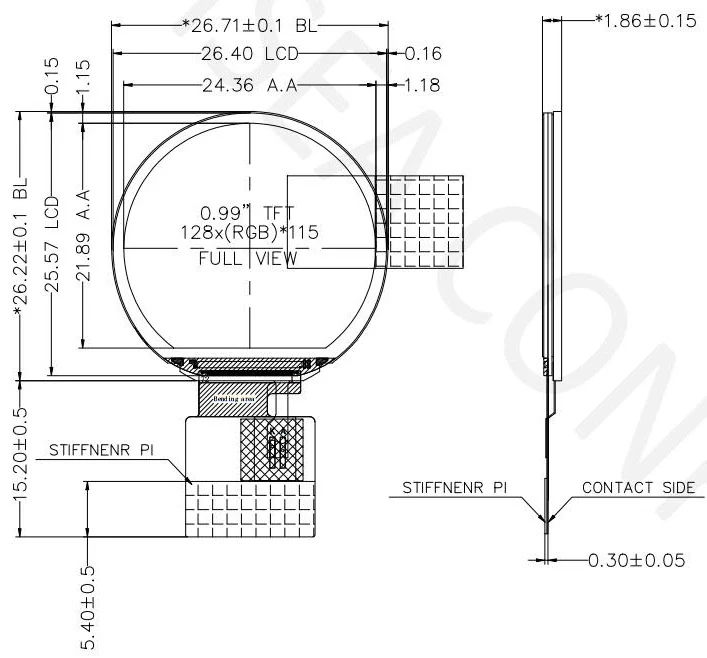

The supplied mechanical drawing shows the 26.71 × 26.22 mm module outline, 24.36 × 21.89 mm active area, FPC contact side and 1.86 mm module thickness. Confirm the final drawing revision with DISEA before production release.
Request Drawing Confirmation
ENGINEERING SELECTION NOTES
Is DS-T010BCSA-01 the Right TFT LCD for Your Project?
Use the specification and drawing together before PCB, enclosure or sample approval.
DS-T010BCSA-01 combines a 1.0 inch IPS Round with 128 × 115 resolution, SPI / 8-bit MCU, 24 pin interface and No TP. It is a candidate for compact instruments, handheld electronics, controls and embedded devices when the outline, connector position, electrical timing and environmental limits match the host product.
- Controller and interface: ST7735S with SPI / 8-bit MCU, 24 pin; confirm initialization, pin assignment and host compatibility.
- Optical and touch target: 350 cd/m² luminance with No TP; review ambient light, viewing direction and cover requirements.
- Environment: operating temperature -20 to 70 °C; validate the installed thermal and enclosure conditions.
- Mechanical release: request the latest controlled drawing before fixing the PCB, bezel, FPC route or connector.
START YOUR PROJECT
Need a compact round display for your product?
Send your application, display orientation, interface requirements and volume forecast for a technical review.
