1.3 INCH IPS ROUND TFT LCD MODULE
1.3 inch 240x240 Circular TFT LCD Module DS-T013HQGA-01
A high-brightness circular IPS display for smart controls, wearables and compact instrument interfaces. DS-T013HQGA-01 combines 240×240 resolution, a GC9A01 driver and SPI or 8-bit MCU interface in a 1.57 mm slim module.
Model: DS-T013HQGA-01
1.3 inDisplay Size
240×240Resolution
IPS RoundLCD Type
GC9A01Driver IC
500 cd/m²Luminance
PRODUCT ADVANTAGES
Bright, round display performance for smart interfaces
High 500 cd/m² luminance
Higher luminance supports clear information presentation in bright indoor environments and portable device applications.
Flexible controller integration
The GC9A01 driver supports SPI or 8-bit MCU interface options through a 22-pin FPC for practical embedded control-board integration.
Slim, compact module
35.60 × 38.10 × 1.57 mm outline dimensions provide a compact profile for circular display designs.
PRODUCT GALLERY

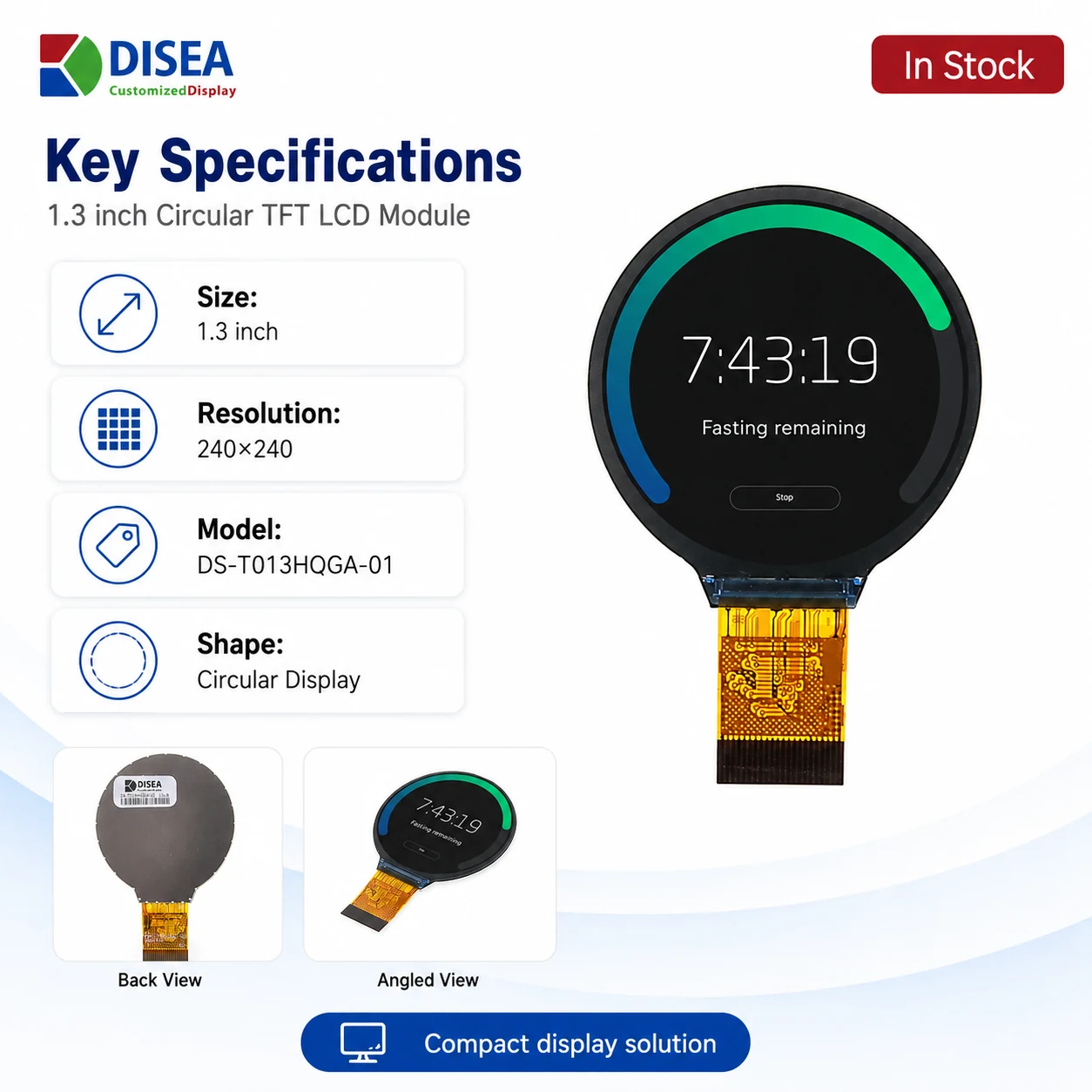

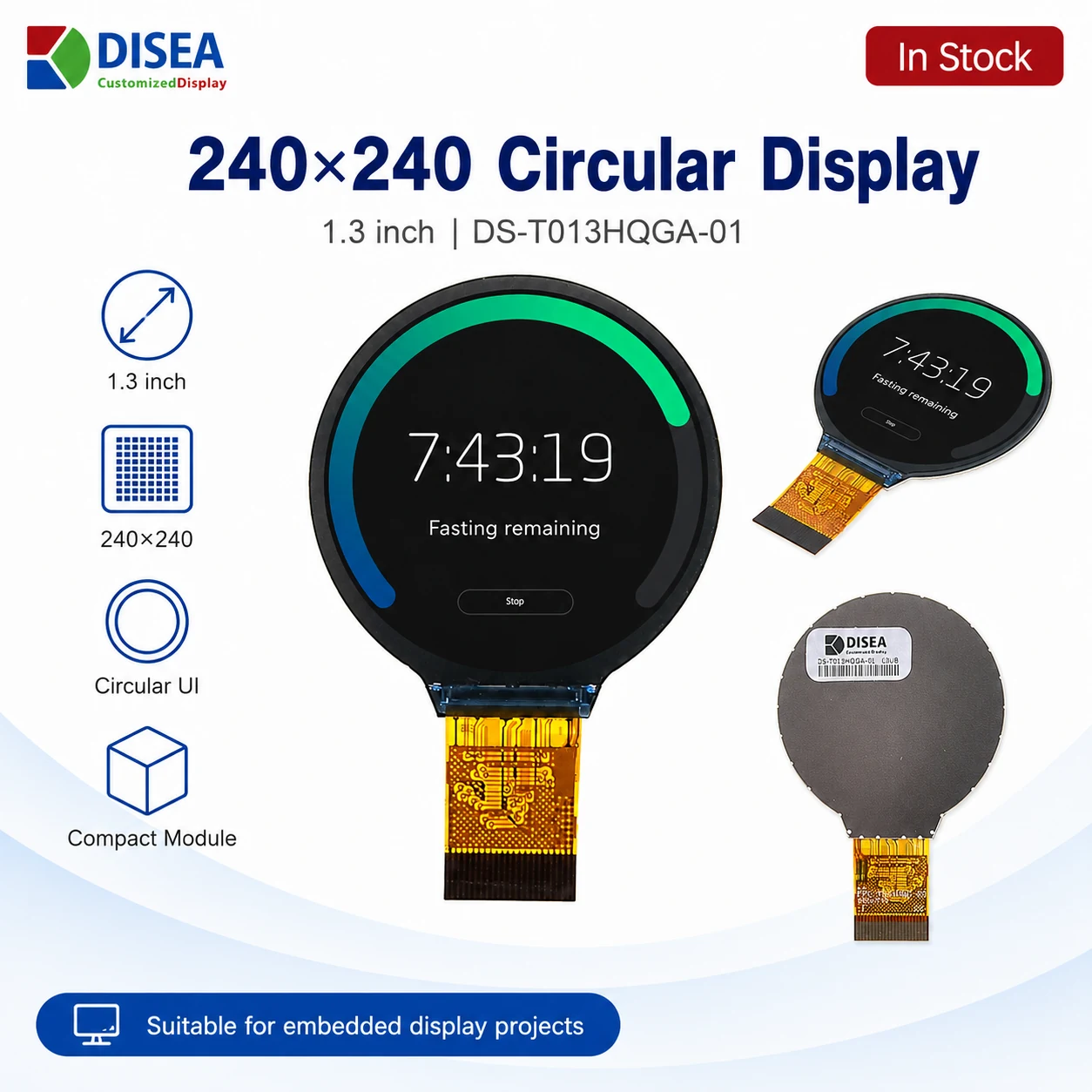

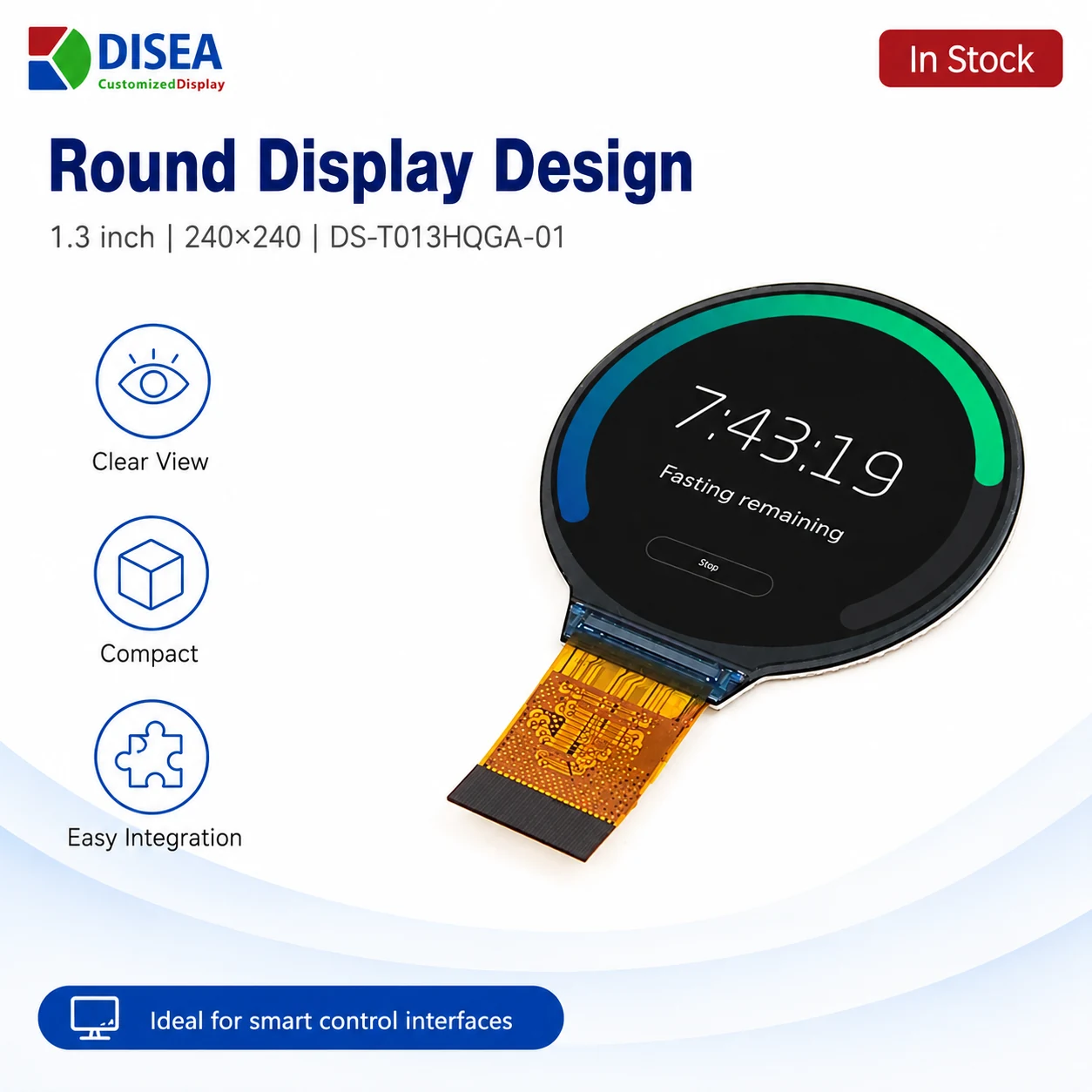

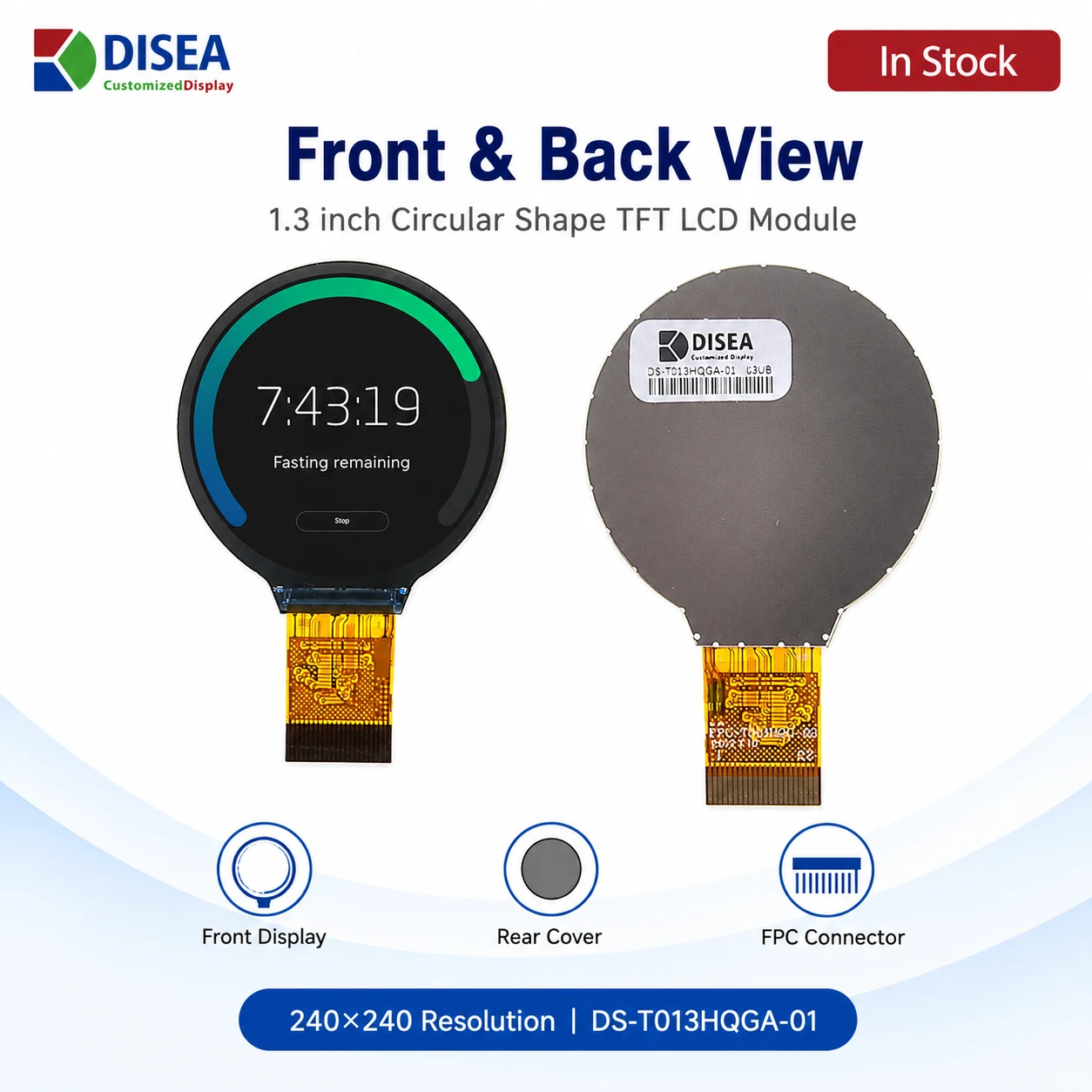

Circular module views and application highlights

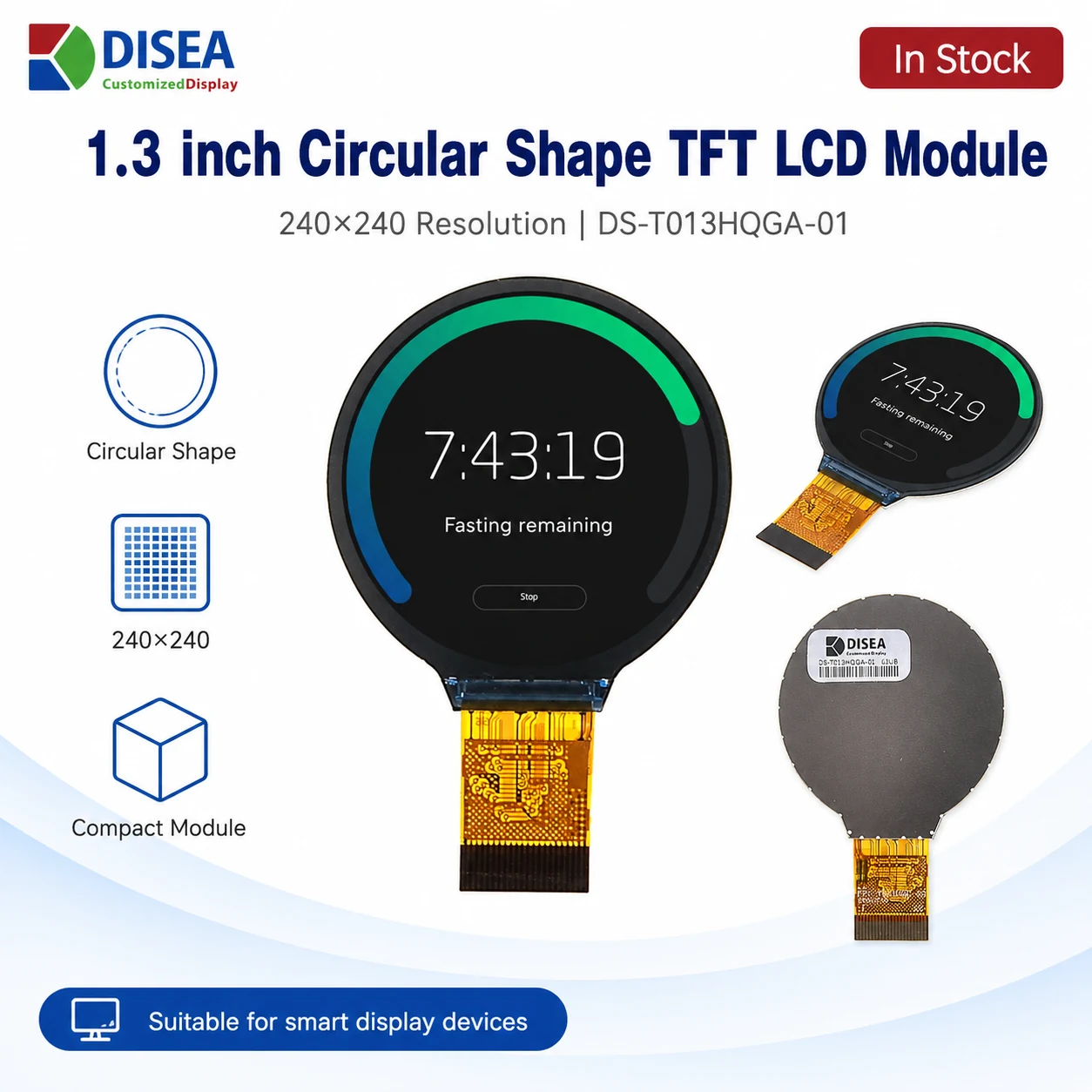

Images are presented in the supplied product order. The first image is the catalog cover image.
MECHANICAL DRAWING
Product dimensional specification

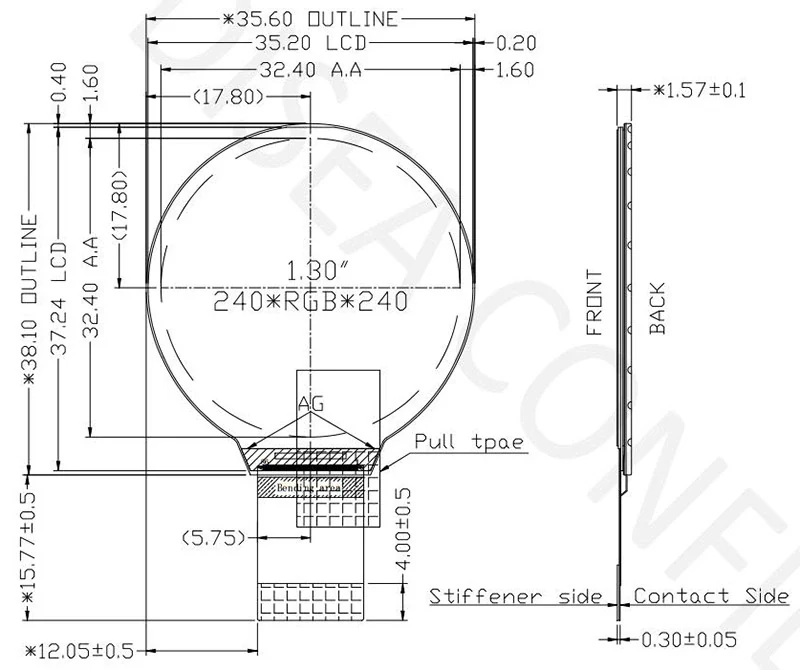

The supplied mechanical drawing shows the 35.60 × 38.10 mm module outline, 32.40 × 32.40 mm active area, FPC contact side and 1.57 mm module thickness. Confirm the final drawing revision with DISEA before production release.
Request Drawing Confirmation
ENGINEERING SELECTION NOTES
Is DS-T013HQGA-01 the Right TFT LCD for Your Project?
Use the specification and drawing together before PCB, enclosure or sample approval.
DS-T013HQGA-01 combines a 1.3 inch IPS Round with 240 × 240 resolution, SPI / 8-bit MCU, 22 pin interface and No TP. It is a candidate for compact instruments, handheld electronics, controls and embedded devices when the outline, connector position, electrical timing and environmental limits match the host product.
- Controller and interface: GC9A01 with SPI / 8-bit MCU, 22 pin; confirm initialization, pin assignment and host compatibility.
- Optical and touch target: 500 cd/m² luminance with No TP; review ambient light, viewing direction and cover requirements.
- Environment: operating temperature -10 to 60 °C; validate the installed thermal and enclosure conditions.
- Mechanical release: request the latest controlled drawing before fixing the PCB, bezel, FPC route or connector.
