1.54 INCH IPS SQUARE TFT LCD DISPLAY
1.54 inch 320x320 Square IPS TFT LCD Display DS-T015BOSA-01
A compact IPS square display for smart-home controls, handheld electronics and embedded interfaces. DS-T015BOSA-01 combines 320x320 resolution, an ST7796 driver and a 1 Lane MIPI interface in a 1.45 mm slim module.
Model: DS-T015BOSA-01
1.54 inDisplay Size
320x320Resolution
IPS SquareLCD Type
ST7796Driver IC
380 cd/m²Luminance
PRODUCT ADVANTAGES
High-resolution square display for compact interfaces
Clear IPS image presentation
The IPS panel provides consistent image presentation for customer-facing smart-home, portable and embedded products.
Modern MIPI interface
The ST7796 driver and 1 Lane MIPI 14-pin interface support efficient integration with compatible embedded processors.
Slim mechanical profile
31.52 x 33.72 x 1.45 mm outline dimensions provide a thin, compact module for space-constrained designs.
PRODUCT GALLERY

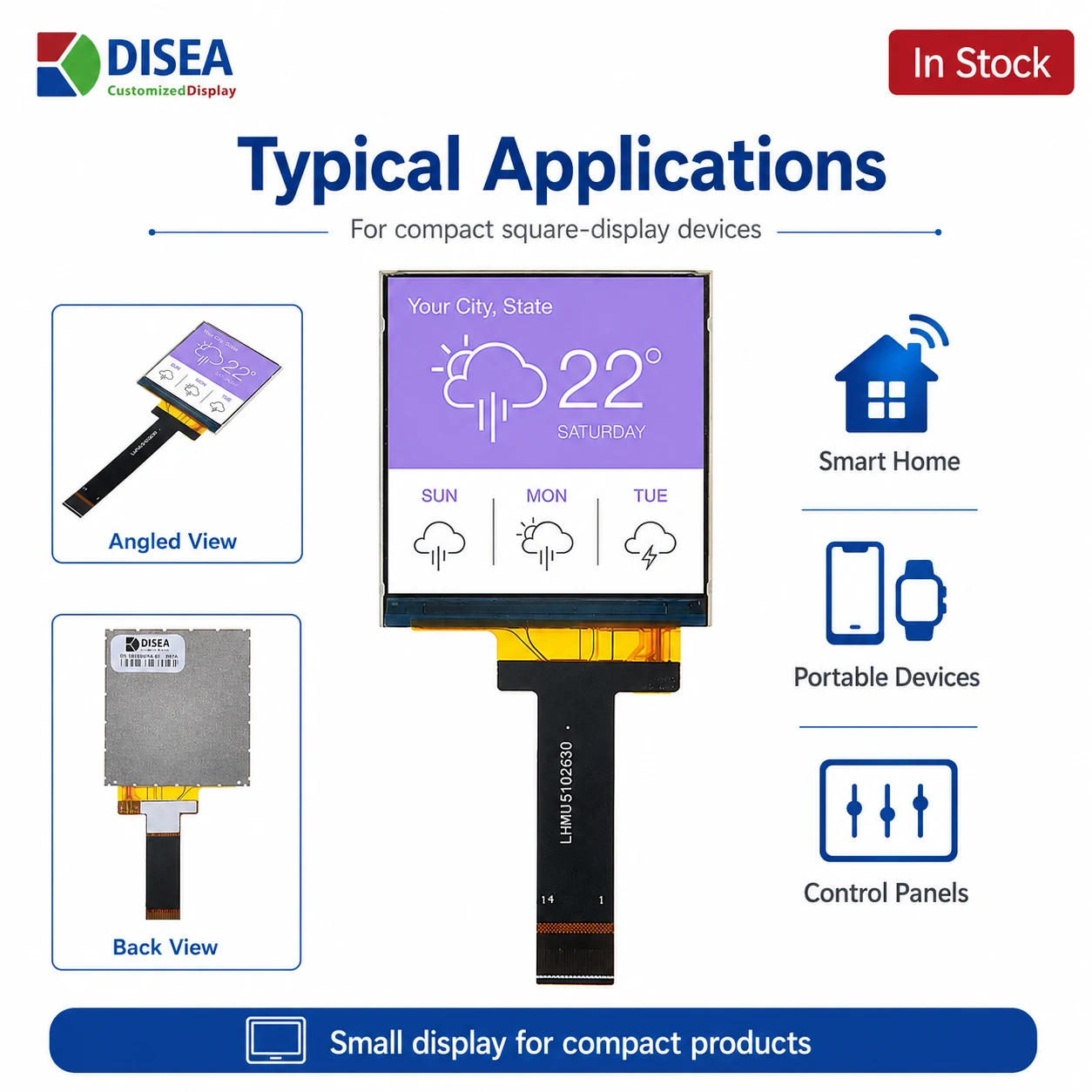

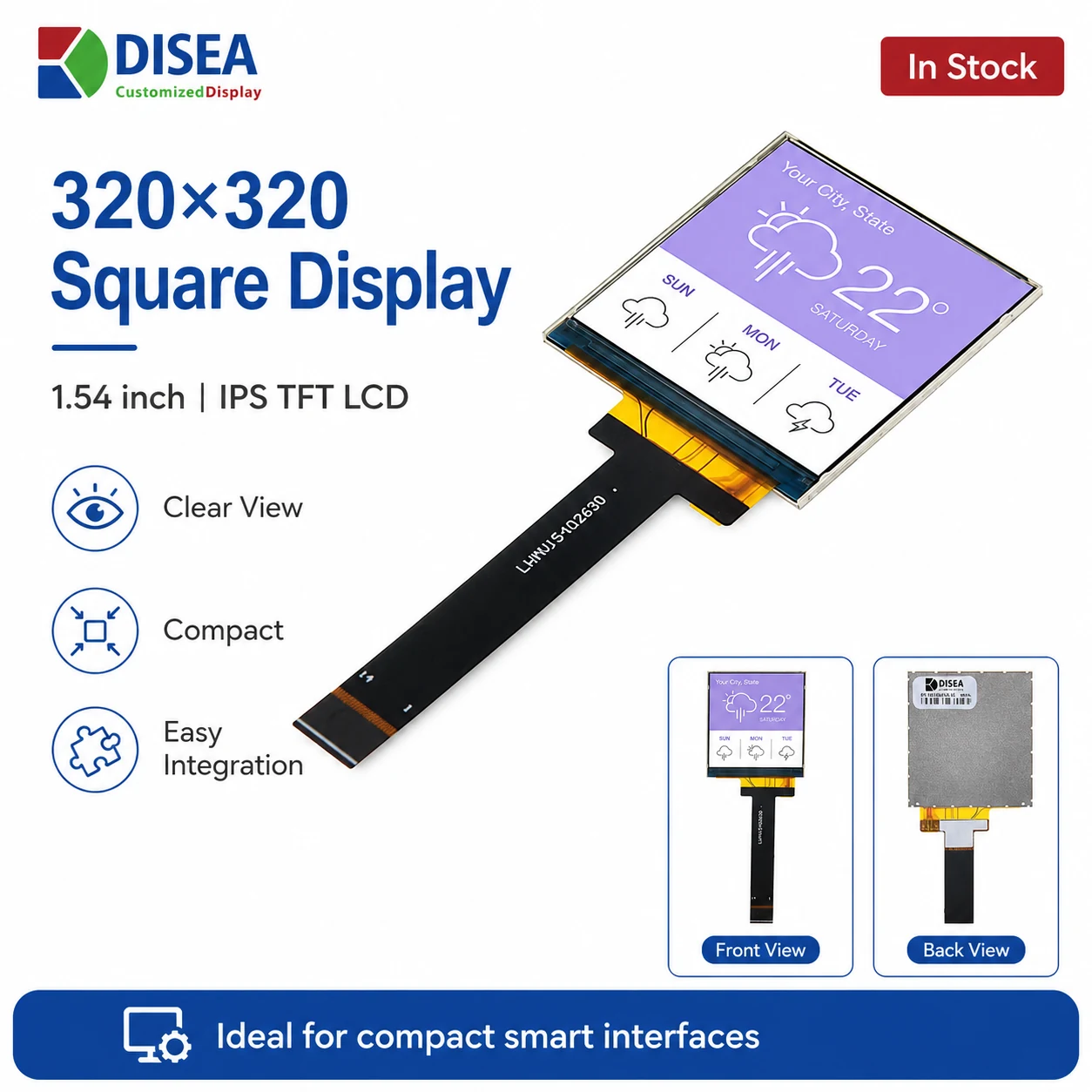

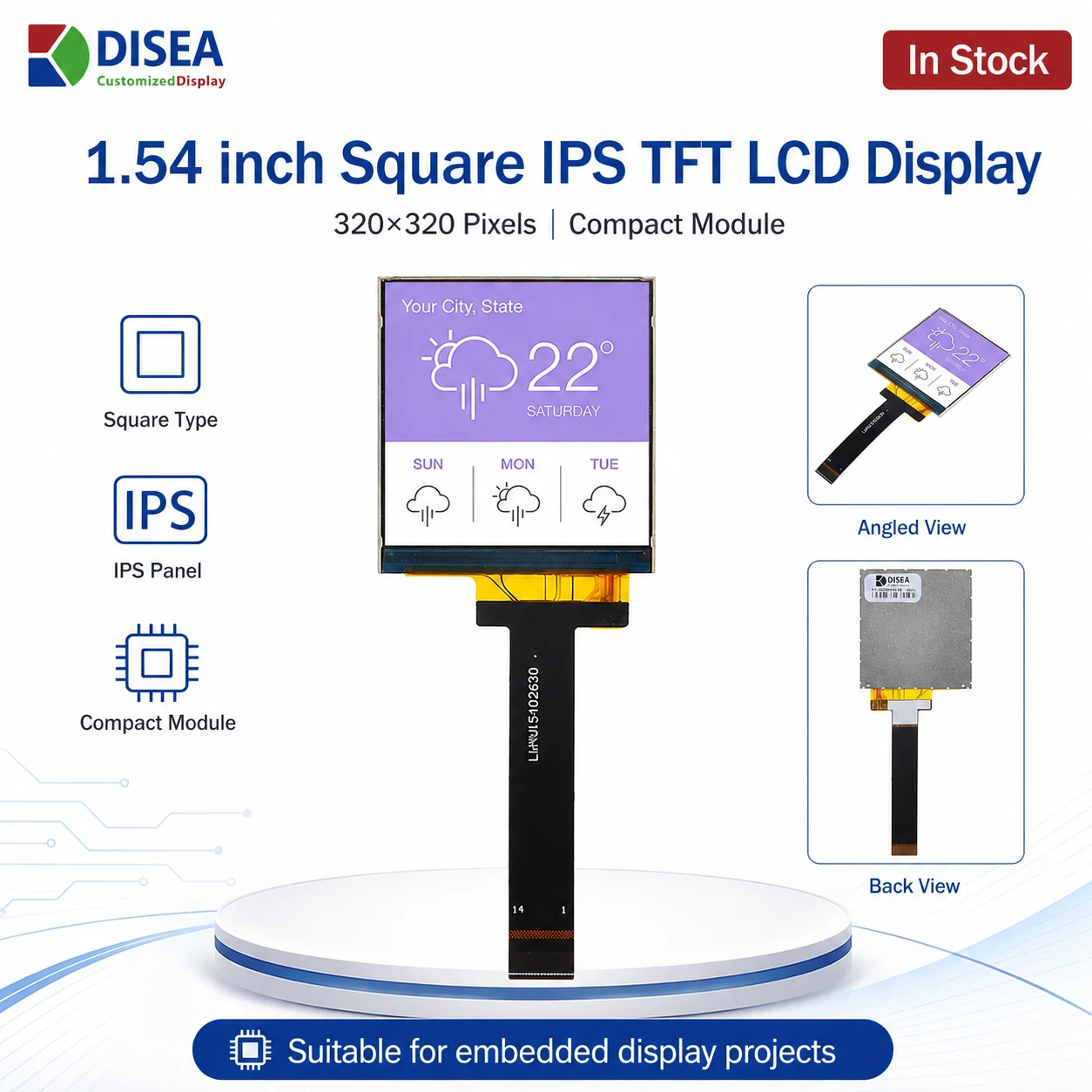

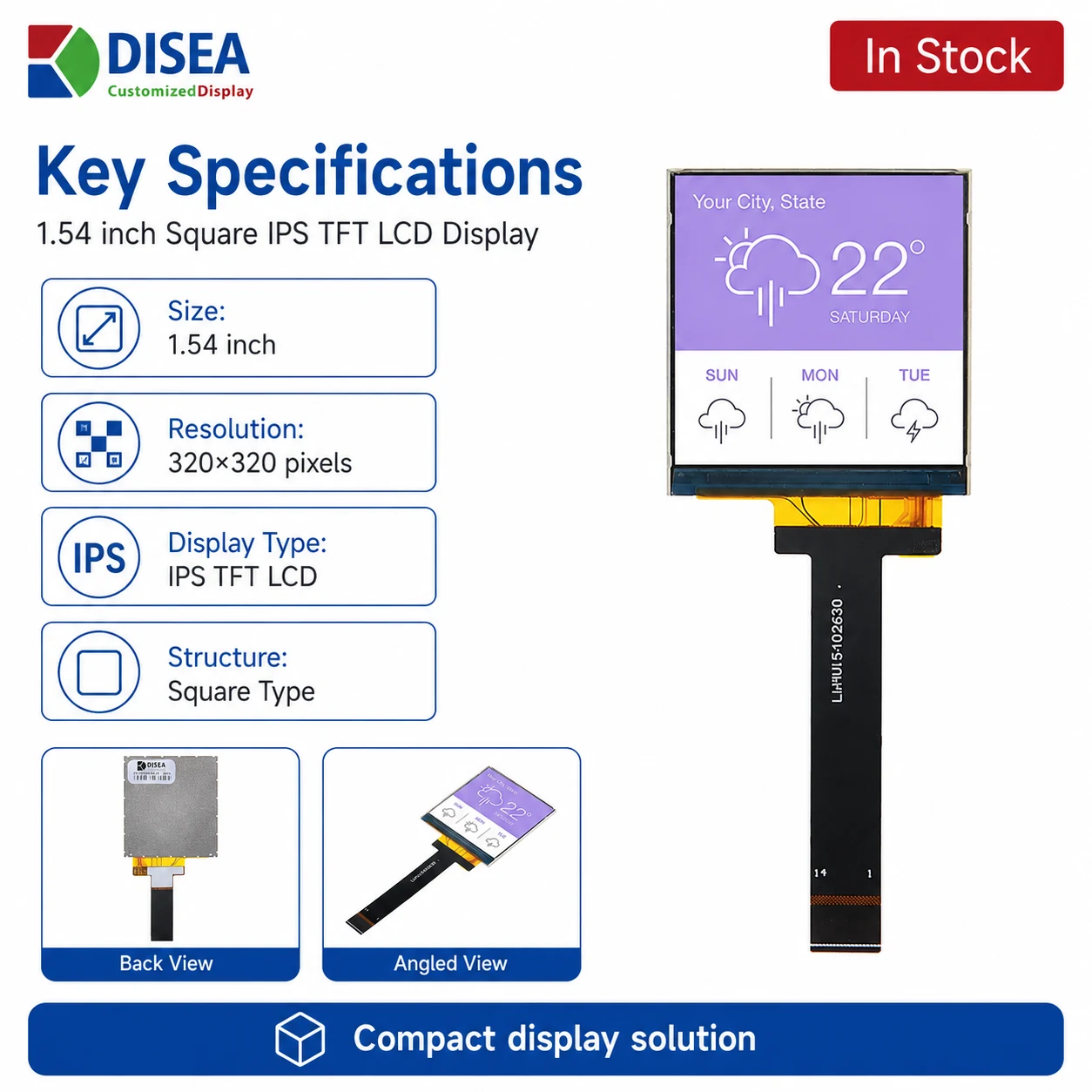

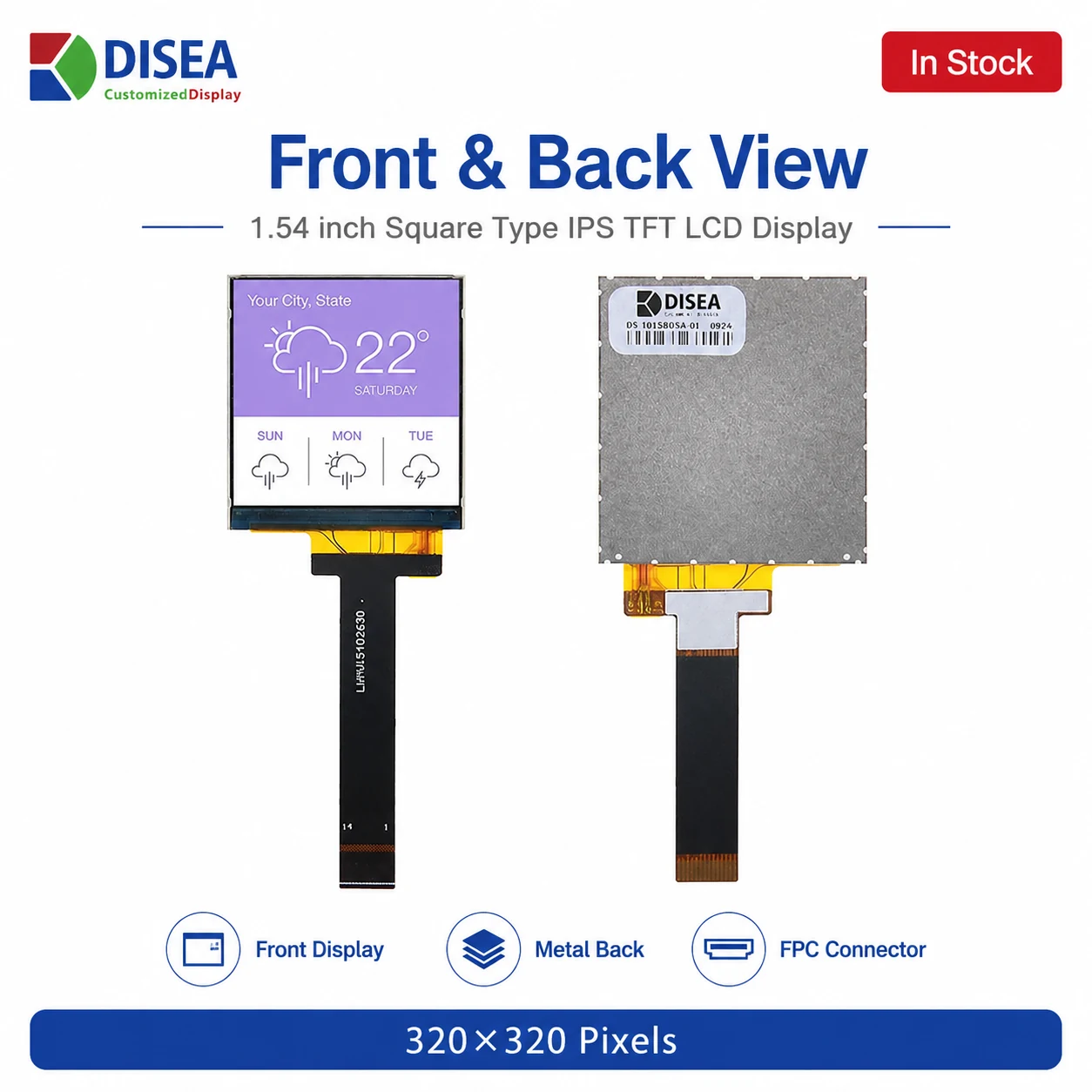

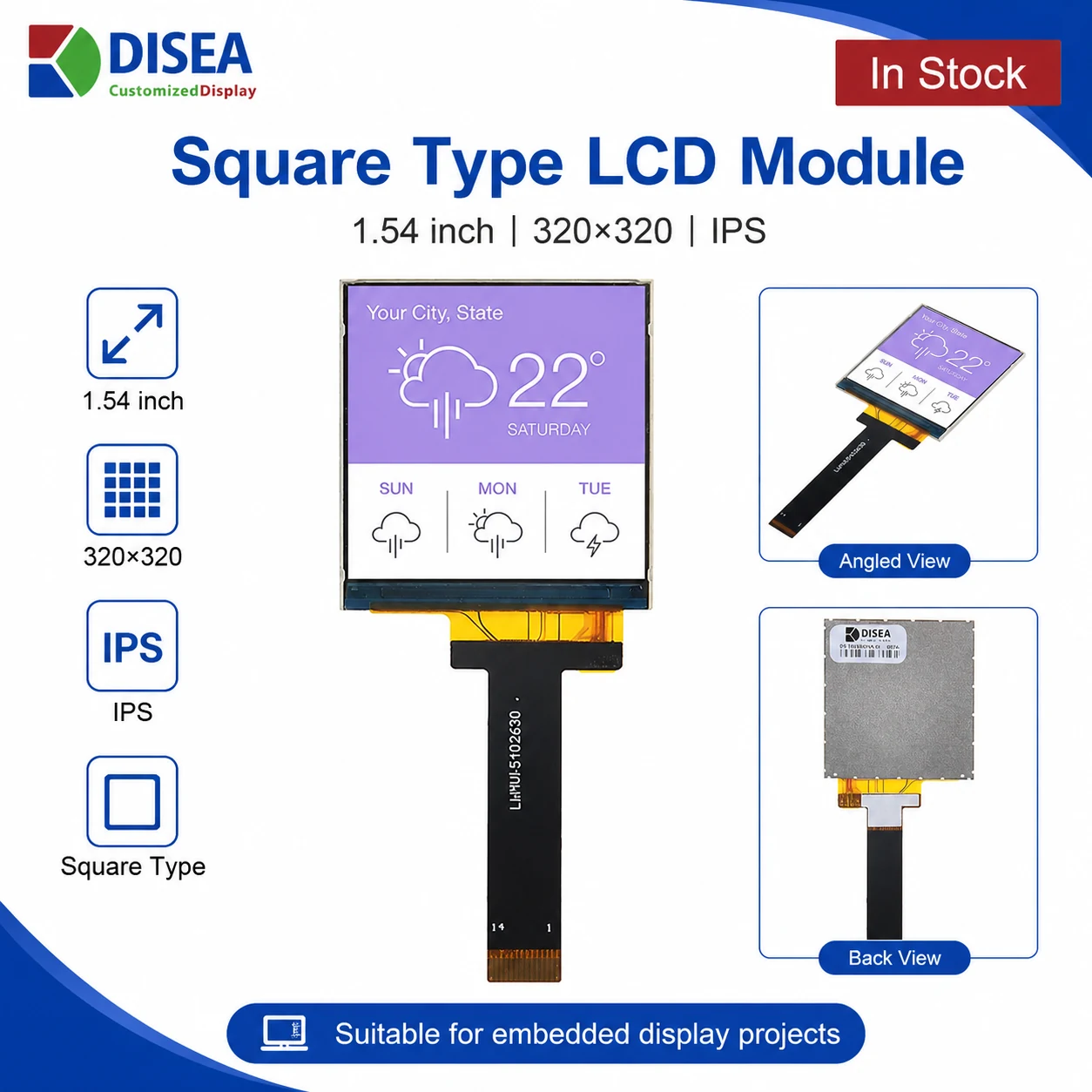

Square module views and application highlights
Images are presented in the supplied product order. The first image is the catalog cover image.
MECHANICAL DRAWING
Product dimensional specification

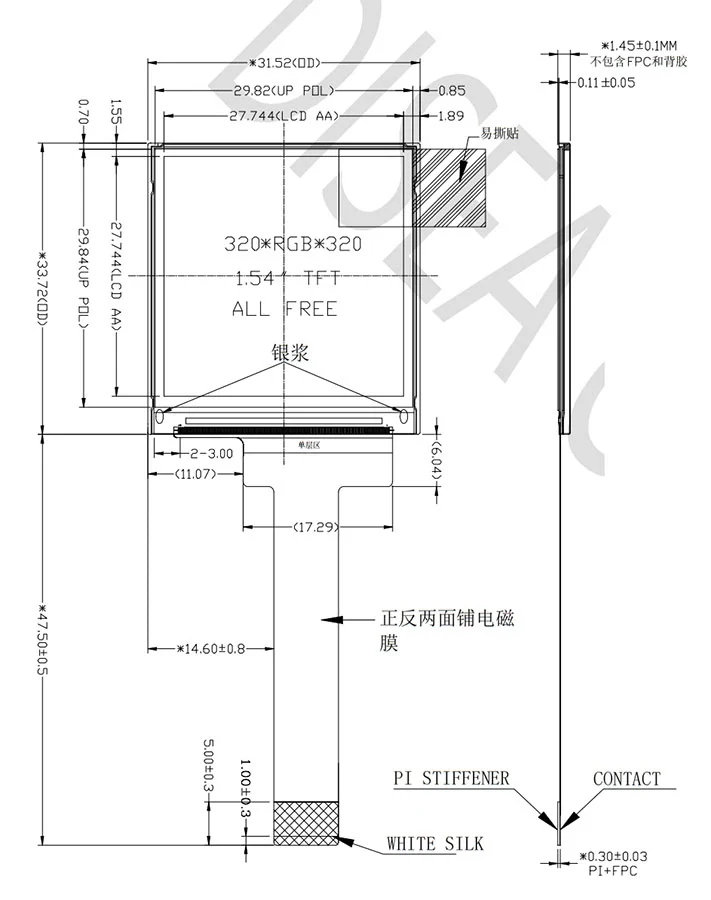

The supplied mechanical drawing shows the 31.52 x 33.72 mm module outline, 27.744 x 27.744 mm active area, FPC contact side and 1.45 mm module thickness. Confirm the final drawing revision with DISEA before production release.
Request Drawing Confirmation
ENGINEERING SELECTION NOTES
Is DS-T015BOSA-01 the Right TFT LCD for Your Project?
Use the specification and drawing together before PCB, enclosure or sample approval.
DS-T015BOSA-01 combines a 1.54 inch IPS Square with 320 x 320 resolution, 1 Lane MIPI, 14 pin interface and No TP. It is a candidate for compact instruments, handheld electronics, controls and embedded devices when the outline, connector position, electrical timing and environmental limits match the host product.
- Controller and interface: ST7796 with 1 Lane MIPI, 14 pin; confirm initialization, pin assignment and host compatibility.
- Optical and touch target: 380 cd/m² luminance with No TP; review ambient light, viewing direction and cover requirements.
- Environment: operating temperature -20 to 70 °C; validate the installed thermal and enclosure conditions.
- Mechanical release: request the latest controlled drawing before fixing the PCB, bezel, FPC route or connector.
START YOUR PROJECT
Need a compact square display for your product?
Send your application, display orientation, interface requirements and volume forecast for a technical review.
