1.77 INCH TN TFT LCD MODULE
1.77 inch 128*160 TFT LCD Module With ILI9163V IC
A compact 1.77 inch TN TFT LCD module for portable controls, handheld instruments and embedded interfaces. DS-T0177SSI-02 combines 128x160 resolution, an ILI9163V driver and an 8-bit MCU interface in a 2.60 mm module.
Model: DS-T0177SSI-02
1.77 inDisplay Size
128x160Resolution
TN TFTLCD Type
ILI9163VDriver IC
220 cd/m²Luminance
PRODUCT ADVANTAGES
ILI9163V MCU interface for compact embedded controls
8-bit MCU interface
The 20-pin 8-bit MCU interface supports direct integration with compatible embedded controllers.
ILI9163V driver IC
The ILI9163V display driver provides a practical control platform for compact color-display designs.
Space-conscious outline
The 34.70 x 46.70 x 2.60 mm module outline suits portable controls, handheld instruments and compact embedded products.
PRODUCT GALLERY

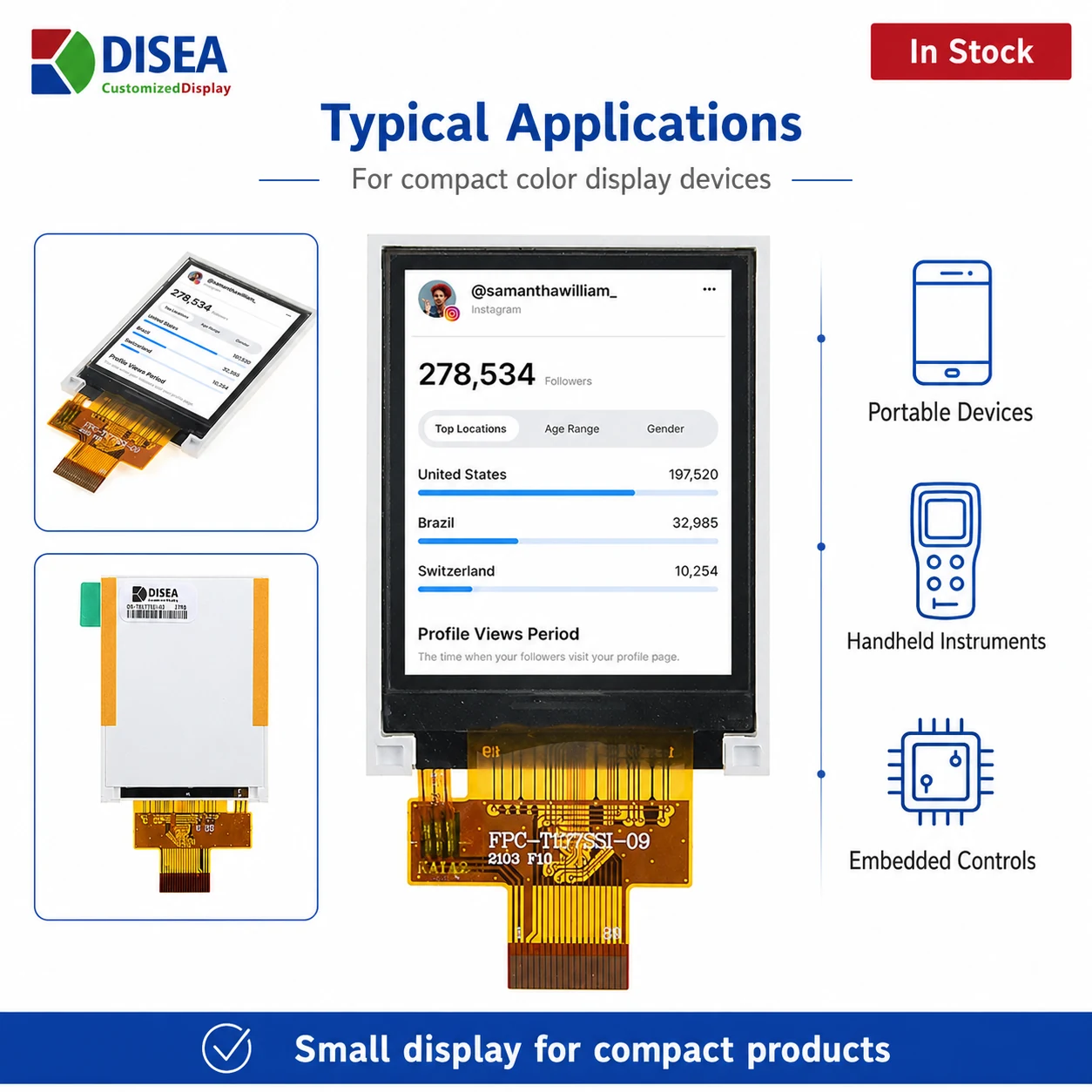

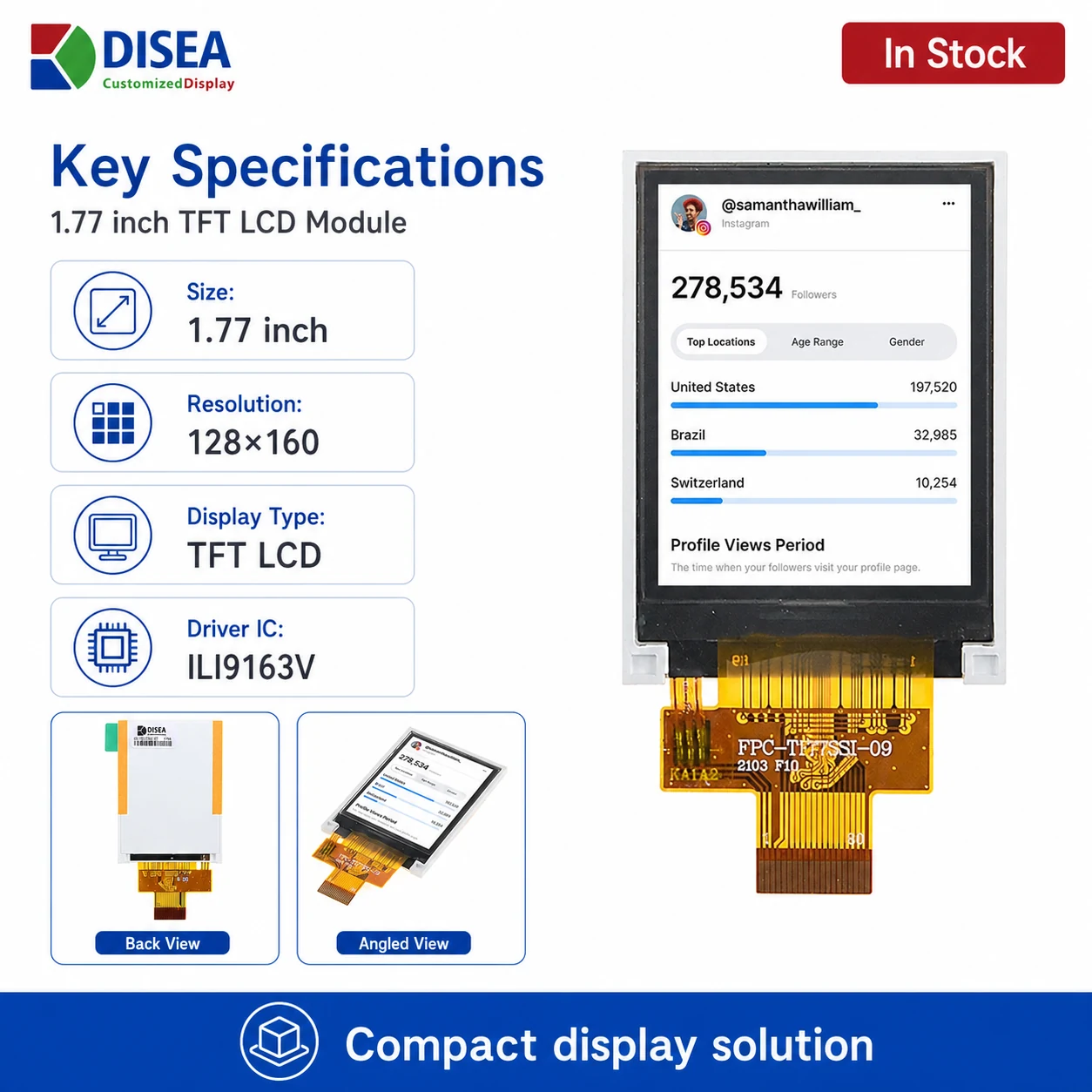

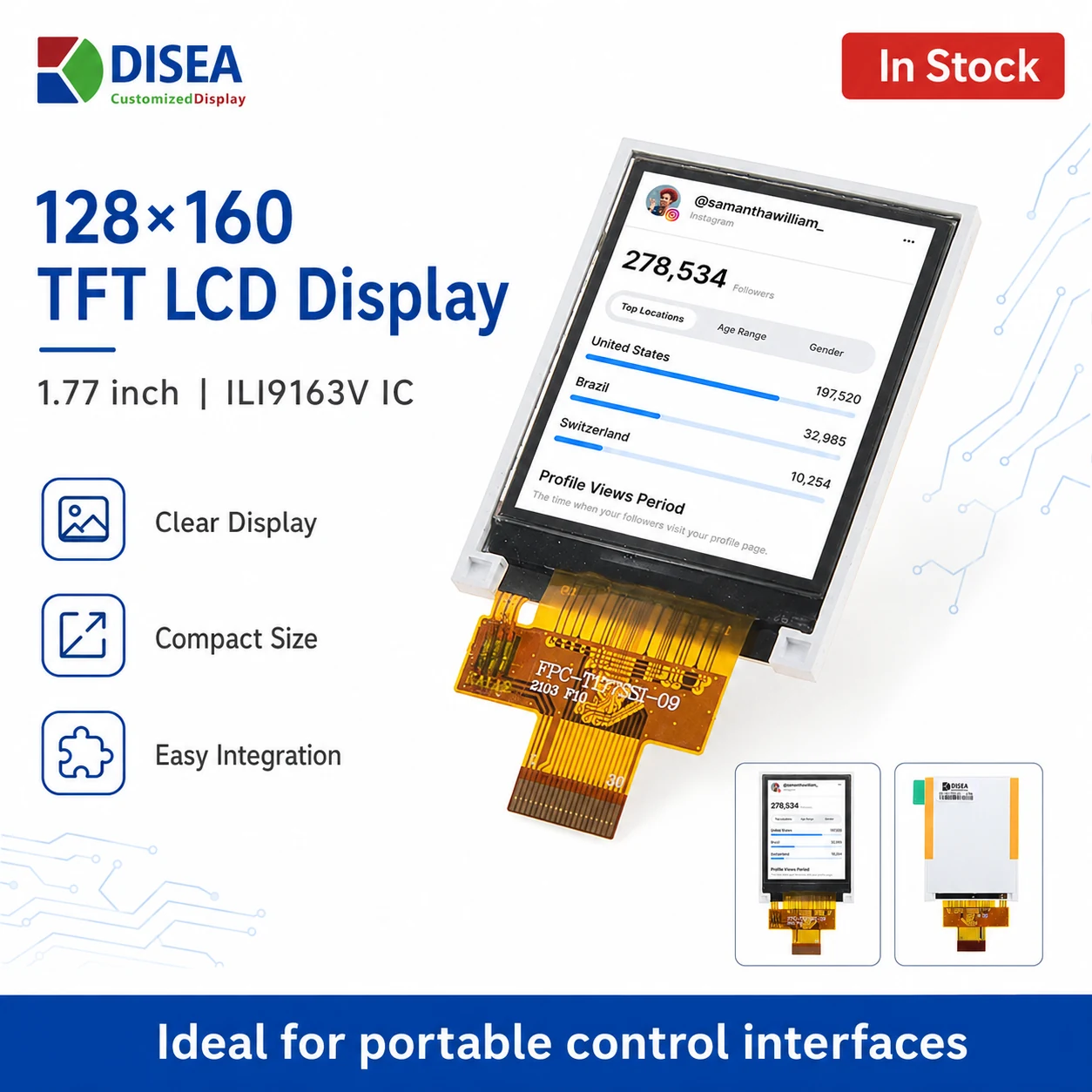

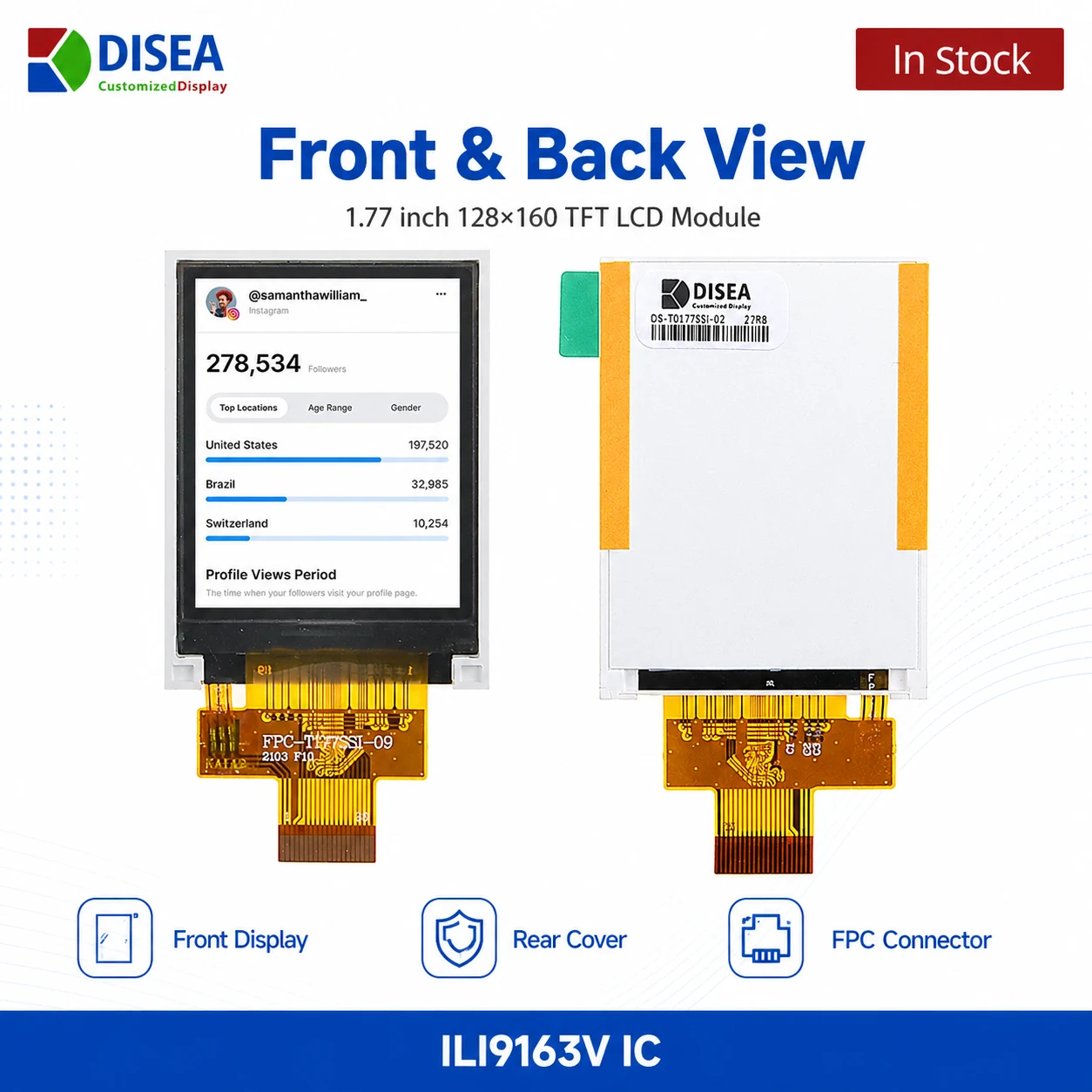

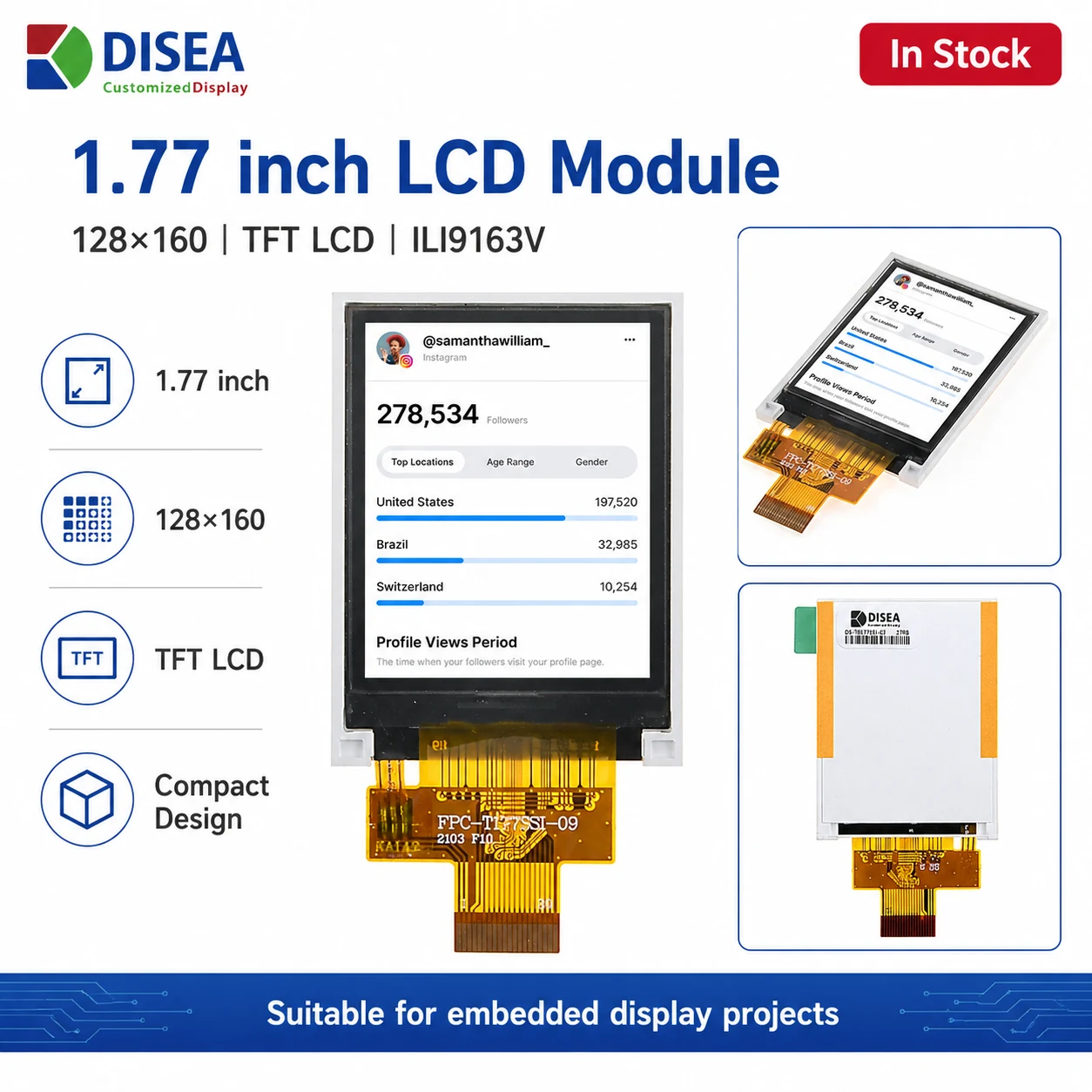

Module views and application highlights

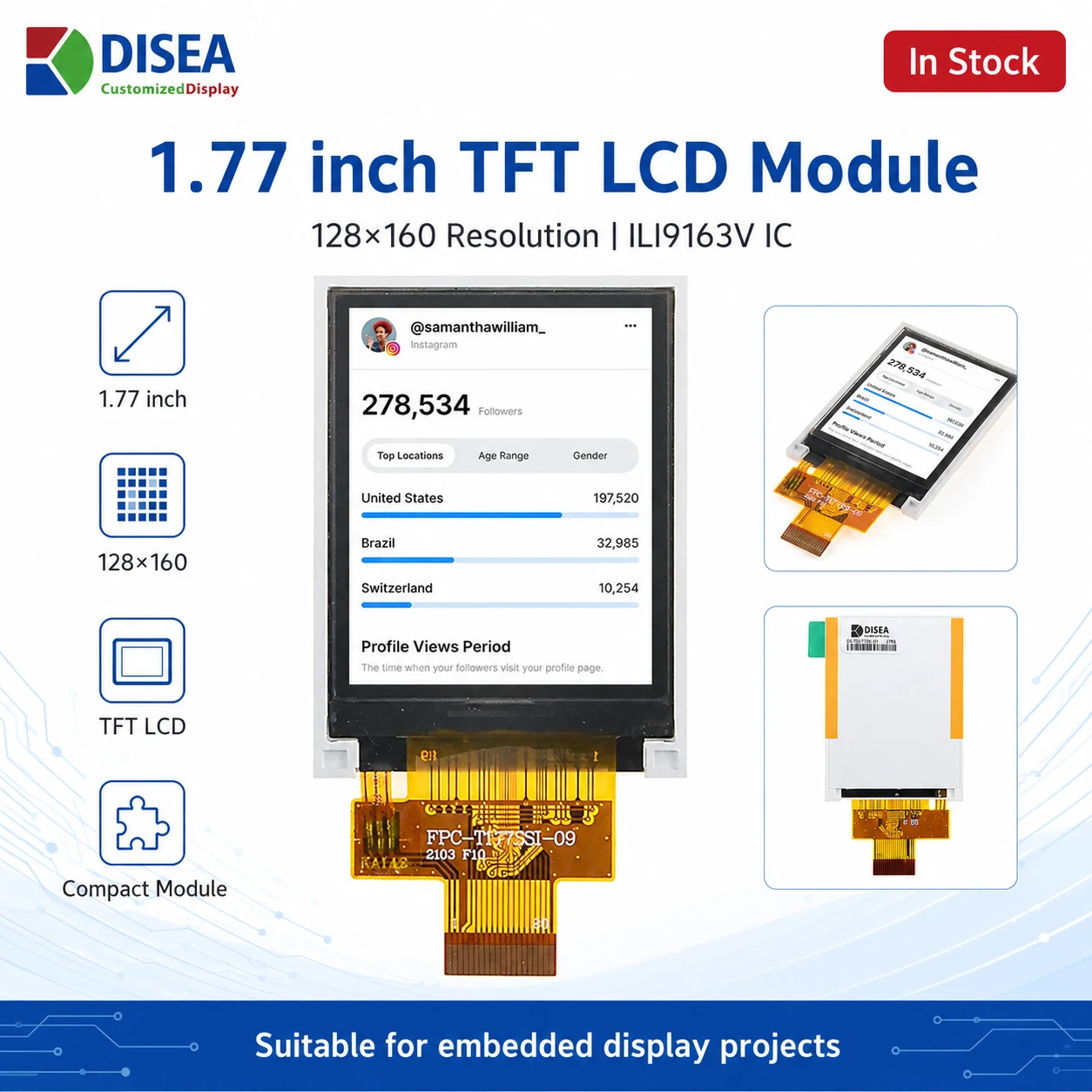

Images are presented in the supplied order. The first image is the catalog cover image.
MECHANICAL DRAWING
Product dimensional specification

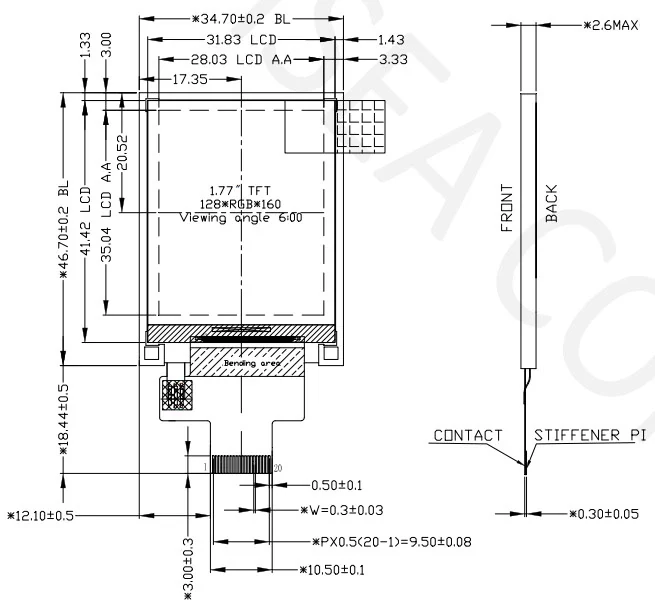

The supplied drawing shows the 34.70 x 46.70 mm module outline, 28.03 x 35.04 mm active area, 20-pin FPC contact side and 2.60 mm maximum thickness. Confirm the final drawing revision with DISEA before production release.
Request Drawing Confirmation
ENGINEERING SELECTION NOTES
Is DS-T0177SSI-02 the Right TFT LCD for Your Project?
Use the specification and drawing together before PCB, enclosure or sample approval.
DS-T0177SSI-02 combines a 1.77 inch TN TFT with 128 x 160 resolution, 8-bit MCU, 20 pin interface and No TP. It is a candidate for compact instruments, handheld electronics, controls and embedded devices when the outline, connector position, electrical timing and environmental limits match the host product.
- Controller and interface: ILI9163V with 8-bit MCU, 20 pin; confirm initialization, pin assignment and host compatibility.
- Optical and touch target: 220 cd/m² luminance with No TP; review ambient light, viewing direction and cover requirements.
- Environment: operating temperature -20 to 70 °C; validate the installed thermal and enclosure conditions.
- Mechanical release: request the latest controlled drawing before fixing the PCB, bezel, FPC route or connector.
START YOUR PROJECT
Need a compact 1.77 inch TFT LCD for your product?
Send your application, display orientation, interface requirements and volume forecast for a technical review.
