1.77 INCH TN TFT LCD MODULE
1.77 inch 128x160 TN TFT LCD Module DS-T0177SSS-01
A compact TN TFT LCD module for handheld controls, instruments and embedded interfaces. DS-T0177SSS-01 combines 128x160 resolution, an ST7735P driver and a 3/4-wire SPI interface in a 2.60 mm module.
Model: DS-T0177SSS-01
1.77 inDisplay Size
128x160Resolution
TN TFTLCD Type
ST7735PDriver IC
220 cd/m²Luminance
PRODUCT ADVANTAGES
Compact TN display for embedded controls
3/4 Wire SPI interface
The 12-pin 3/4 Wire SPI interface supports streamlined integration with compatible embedded controllers.
ST7735P driver IC
The ST7735P display driver provides a practical platform for compact color-display designs.
Space-conscious module outline
The 34.70 x 46.70 x 2.60 mm outline is suited to handheld controls and other space-constrained product designs.
PRODUCT GALLERY
Module views and application highlights
Images are presented in the supplied product order. The first image is the catalog cover image.
MECHANICAL DRAWING
Product dimensional specification

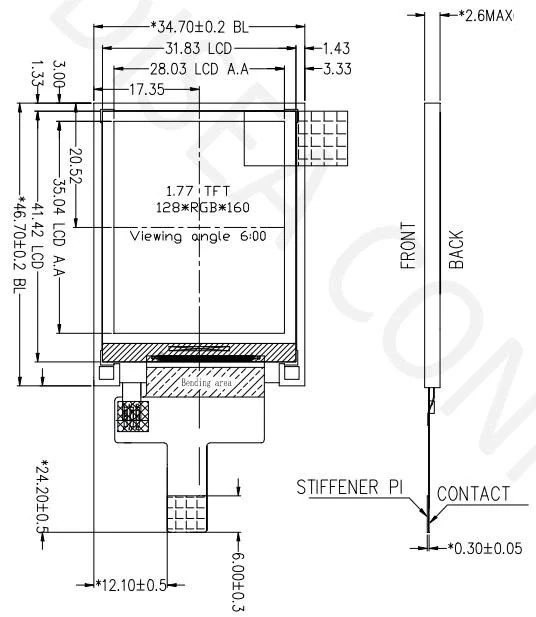

The supplied mechanical drawing shows the 34.70 x 46.70 mm module outline, 28.03 x 35.04 mm active area, FPC contact side and 2.60 mm maximum module thickness. Confirm the final drawing revision with DISEA before production release.
Request Drawing Confirmation
ENGINEERING SELECTION NOTES
Is DS-T0177SSS-01 the Right TFT LCD for Your Project?
Use the specification and drawing together before PCB, enclosure or sample approval.
DS-T0177SSS-01 combines a 1.77 inch TN TFT with 128 x 160 resolution, 3/4 Wire SPI, 12 pin interface and No TP. It is a candidate for compact instruments, handheld electronics, controls and embedded devices when the outline, connector position, electrical timing and environmental limits match the host product.
- Controller and interface: ST7735P with 3/4 Wire SPI, 12 pin; confirm initialization, pin assignment and host compatibility.
- Optical and touch target: 220 cd/m² luminance with No TP; review ambient light, viewing direction and cover requirements.
- Environment: operating temperature -20 to 70 °C; validate the installed thermal and enclosure conditions.
- Mechanical release: request the latest controlled drawing before fixing the PCB, bezel, FPC route or connector.
START YOUR PROJECT
Need a compact 1.77 inch display for your product?
Send your application, display orientation, interface requirements and volume forecast for a technical review.
