320x240 landscape resolution
A practical format for dashboards, status information and compact control interfaces.
In Stock
2.0 INCH IPS TFT LCD
2.0 inch 320*240 IPS TFT LCD Display with RGB Interface
DS-T020BLIA-01 is a compact landscape IPS TFT LCD for embedded HMI, handheld devices and smart instruments. It combines 320x240 resolution, an ILI9342C controller and flexible RGB, MCU or SPI host integration.
Model: DS-T020BLIA-01
2.0 inDisplay Size
320x240Resolution
IPS TFTLCD Type
ILI9342CController
RGB/MCU/SPIInterface
PRODUCT ADVANTAGES
Compact landscape display with flexible host interfaces
IPS viewing performance
Wide viewing angles and consistent color support portable and embedded applications.
ILI9342C controller
The integrated controller supports reliable display initialization and embedded integration.
RGB, MCU and SPI options
The 45-pin FPC supports multiple host-interface choices for different processor platforms.

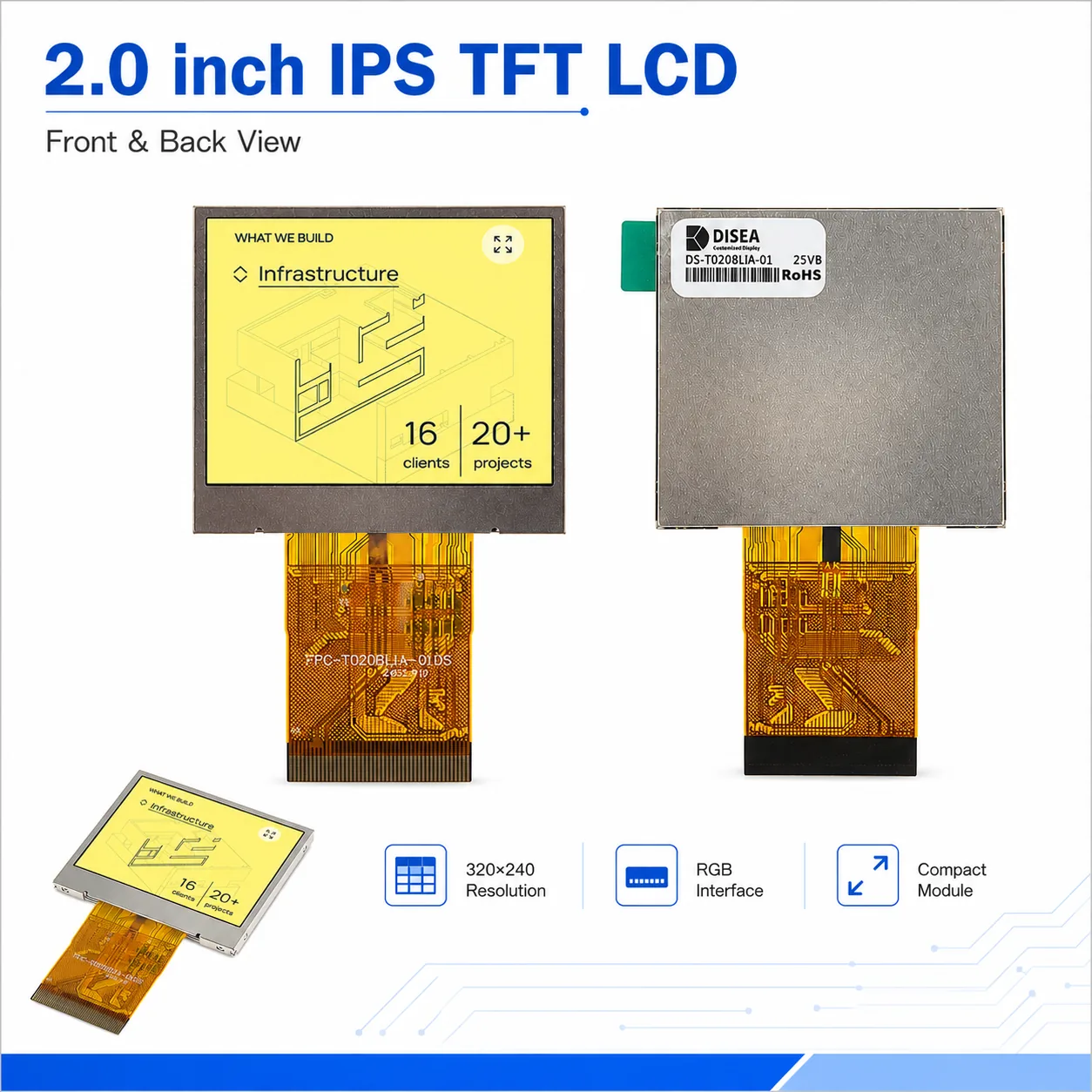

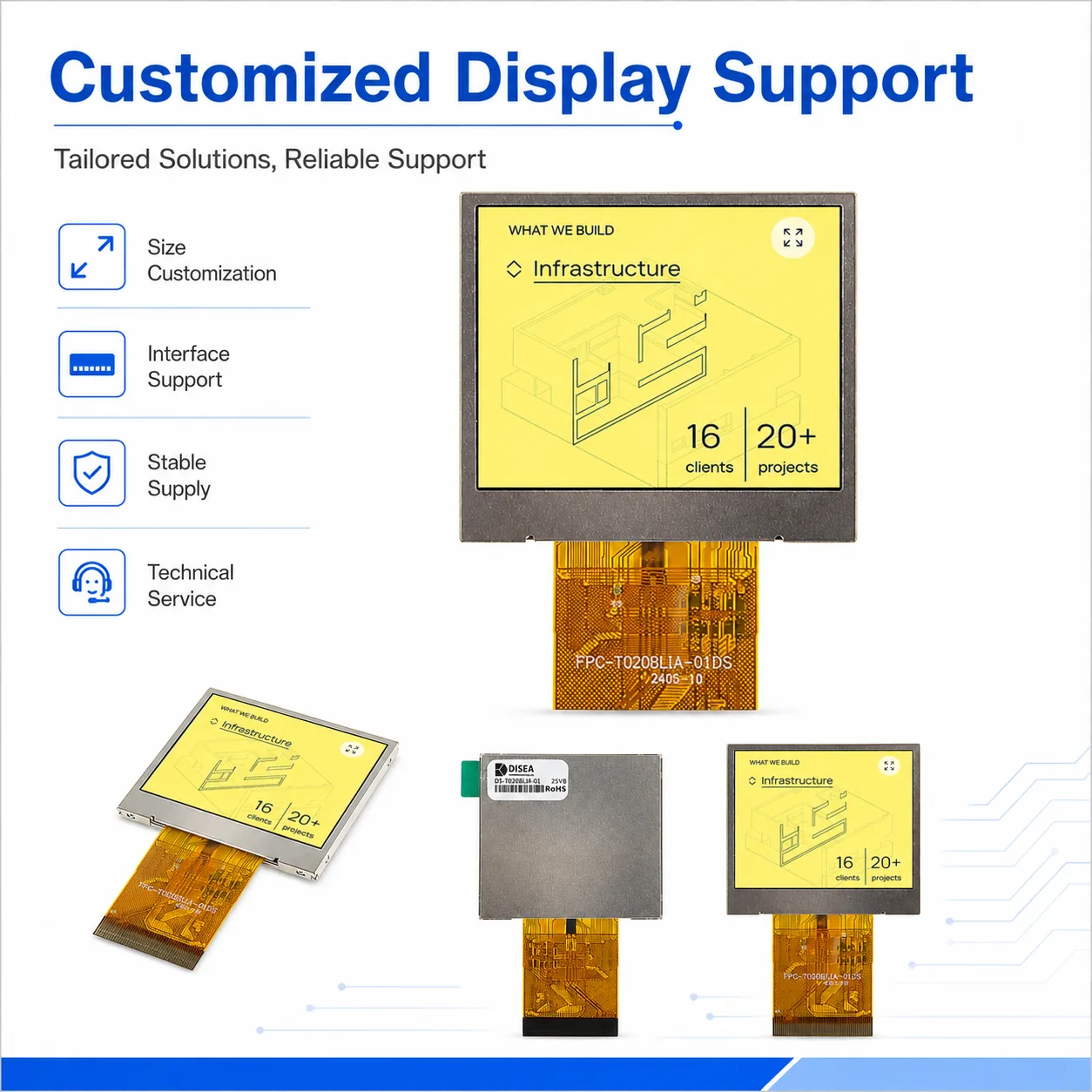

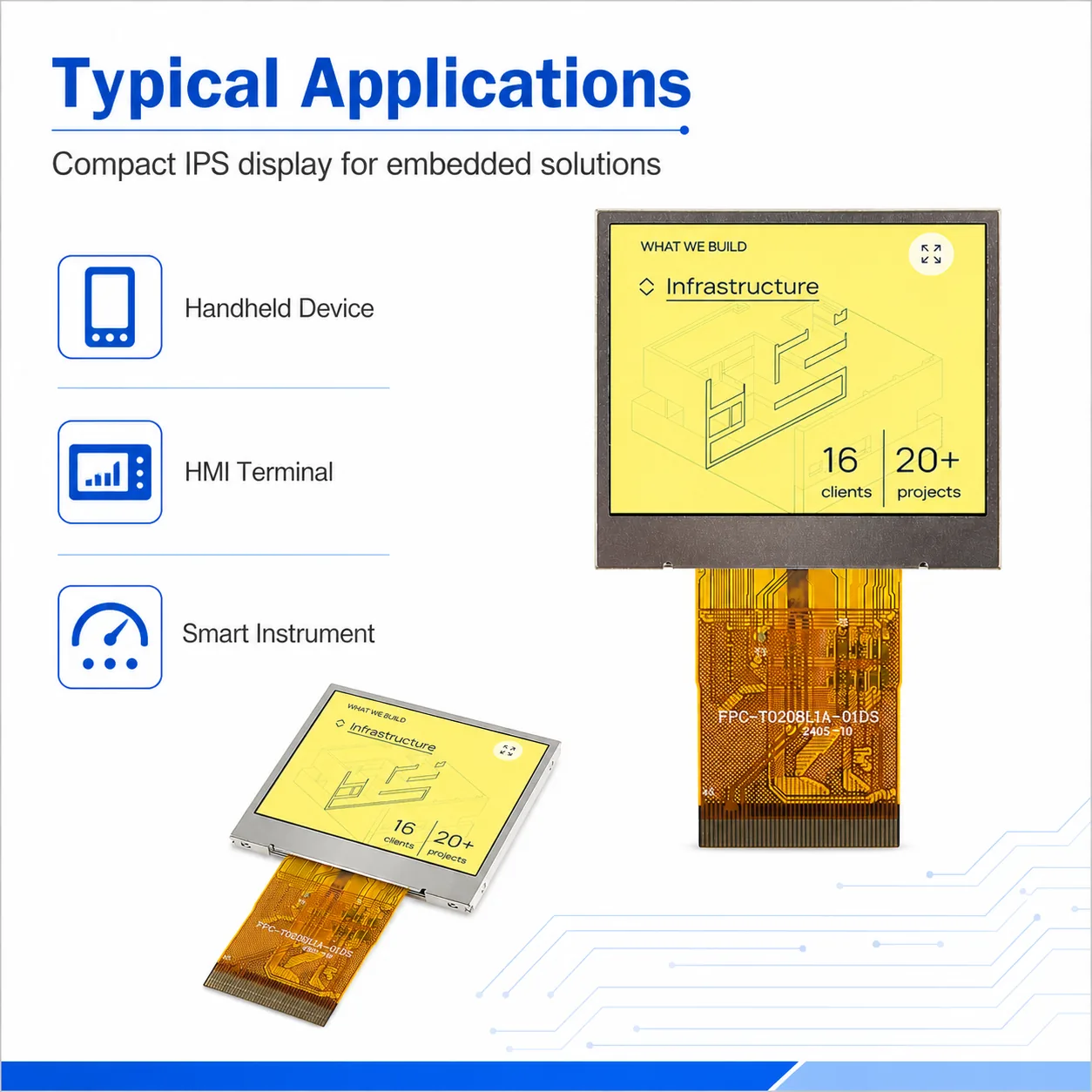

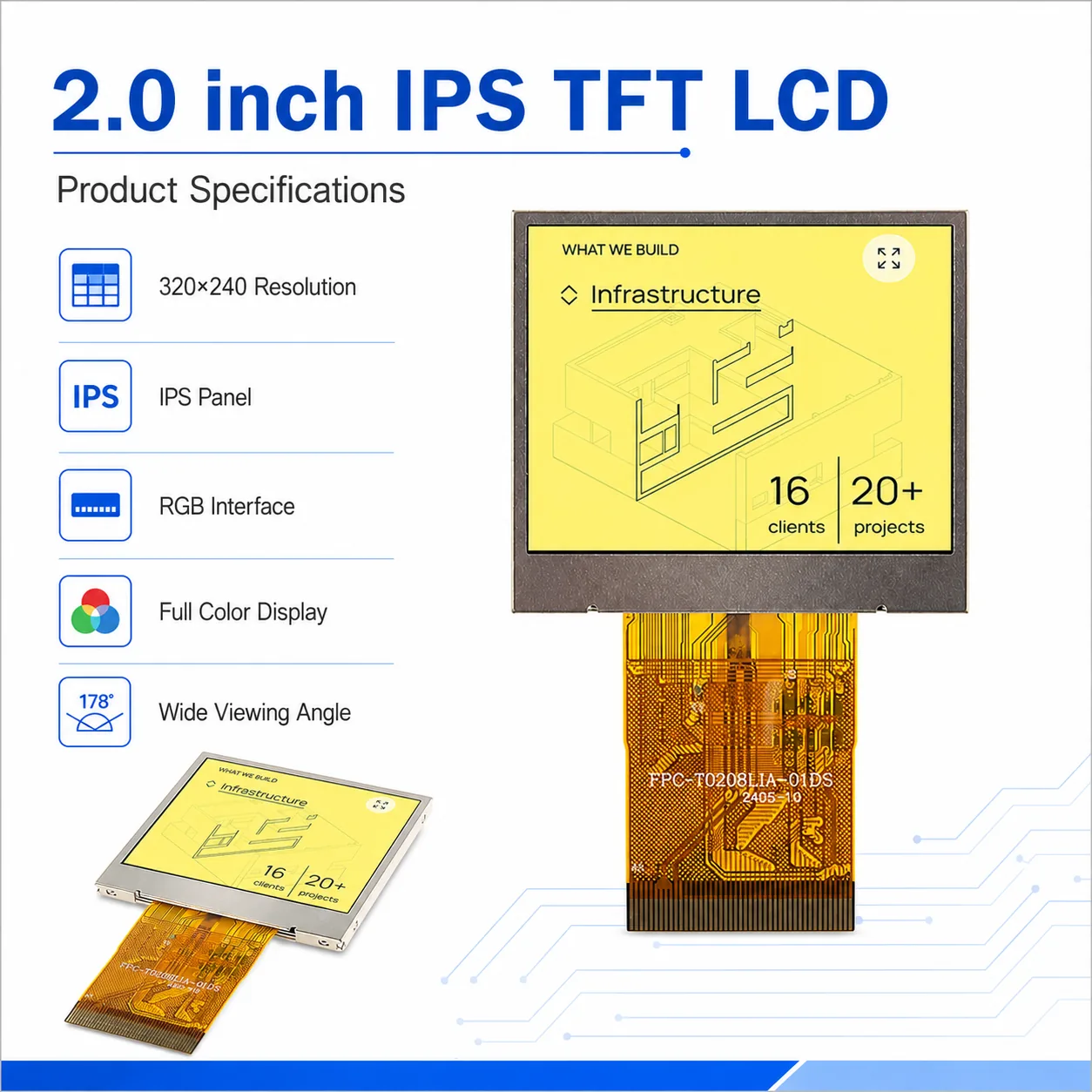

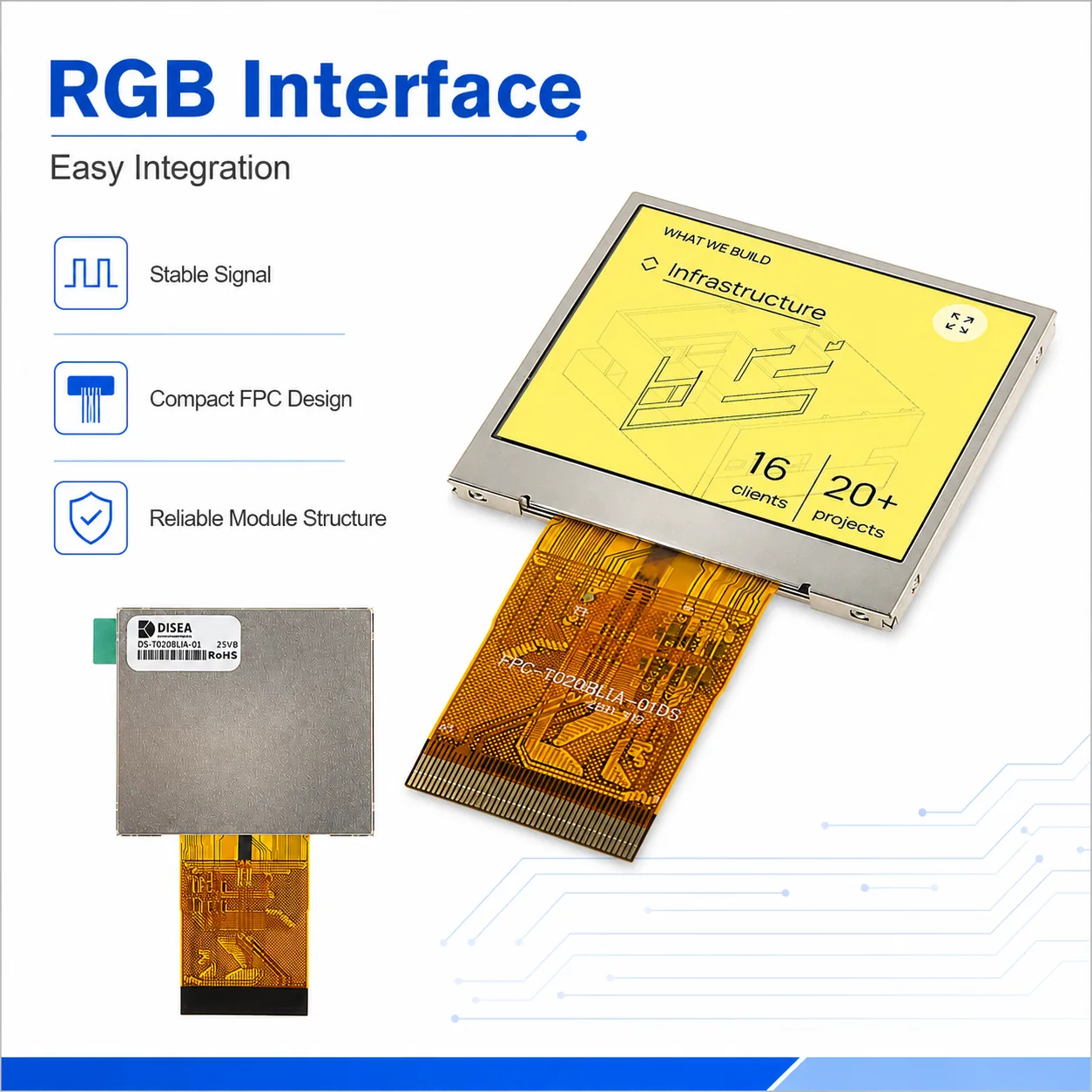

PRODUCT GALLERY
Module views and integration highlights
Images are presented in the supplied product order.

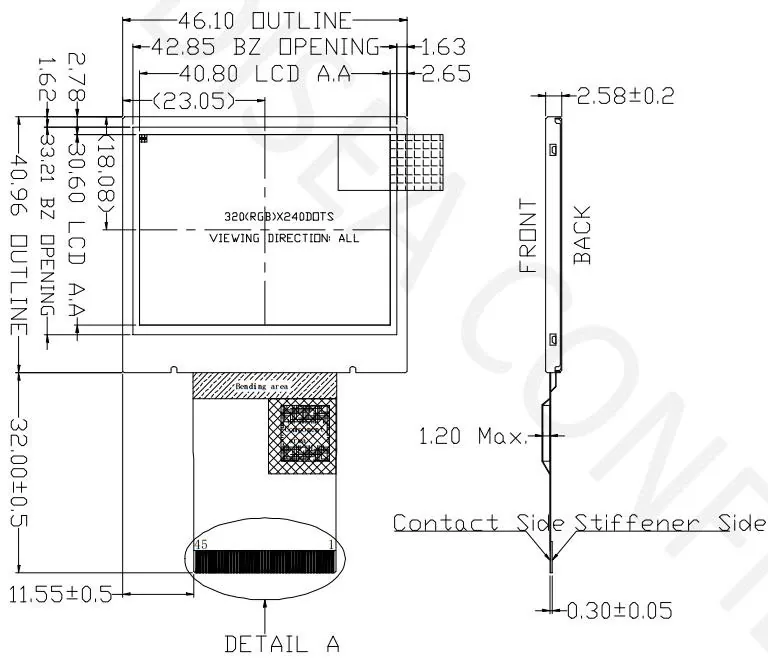

MECHANICAL DRAWING
DS-T020BLIA-01 dimensional specification
The supplied drawing shows the 46.10 x 40.96 mm outline, 40.80 x 30.60 mm active area, 45-pin FPC and 2.58 mm nominal thickness. Confirm the latest controlled drawing revision with DISEA before production release.
Request Drawing Confirmation
ENGINEERING SELECTION NOTES
Is DS-T020BLIA-01 the right TFT LCD for your project?
Use the specification and drawing together before PCB, enclosure or sample approval.
DS-T020BLIA-01 combines a 2.0 inch IPS TFT LCD with 320 x 240 resolution, RGB/MCU/SPI 45-pin interface and no touch panel. It is suitable for compact HMI, instruments and embedded controls when the outline, connector position and electrical timing match the host product.
- Controller and interface: ILI9342C with RGB/MCU/SPI, 45 pin; confirm initialization, pin assignment and host compatibility.
- Optical target: 250 cd/m² luminance and IPS viewing; review ambient-light requirements.
- Environment: operating temperature -20 to 70 °C; validate installed thermal conditions.
- Mechanical release: request the latest controlled drawing before fixing the PCB, bezel, FPC route or connector.
START YOUR PROJECT
Need a compact 2.0 inch IPS display?
Send your application, interface requirements and volume forecast for a technical review.
