2.1 INCH IPS ROUND TFT LCD
2.1'' Sunlight-Readable IPS Round TFT LCD Display
DS-T021BCSA-02 is a compact round IPS TFT LCD for smart controls, portable devices and industrial equipment. It combines 480x480 resolution, 600 cd/m² luminance, an ST7701S controller and an RGB 24-bit host interface.
Model: DS-T021BCSA-02
2.1 inDisplay Size
480x480Resolution
IPS RoundLCD Type
600 cd/m²Luminance
RGB 24-bitInterface
PRODUCT ADVANTAGES
Sunlight-readable round display for compact interfaces
600 cd/m² luminance
Higher luminance supports improved visibility in bright indoor and daylight-exposed environments.
IPS viewing performance
Wide viewing angles and consistent color support products viewed from changing directions.
RGB 24-bit integration
The 40-pin FPC and ST7701S controller support direct full-color embedded display integration.

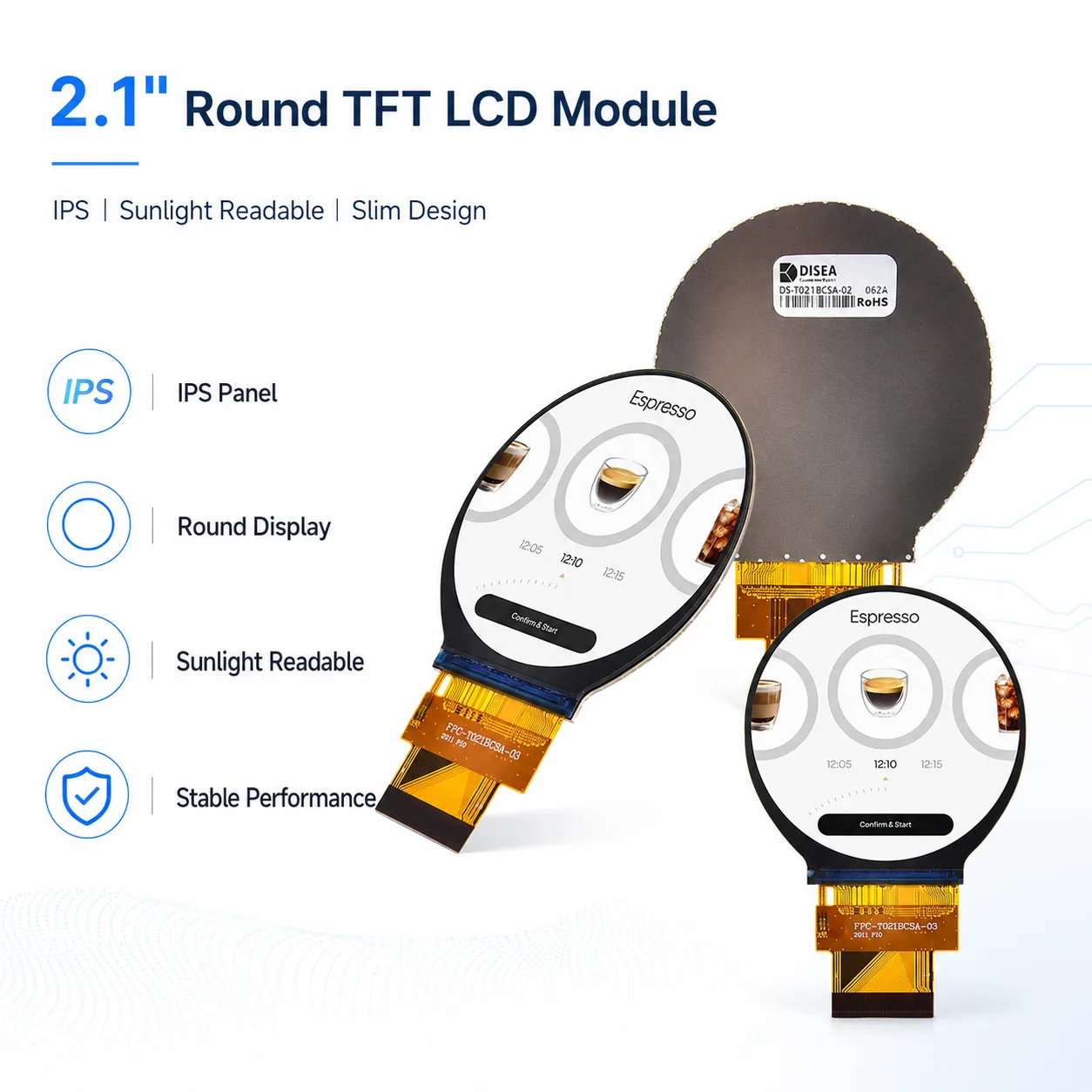

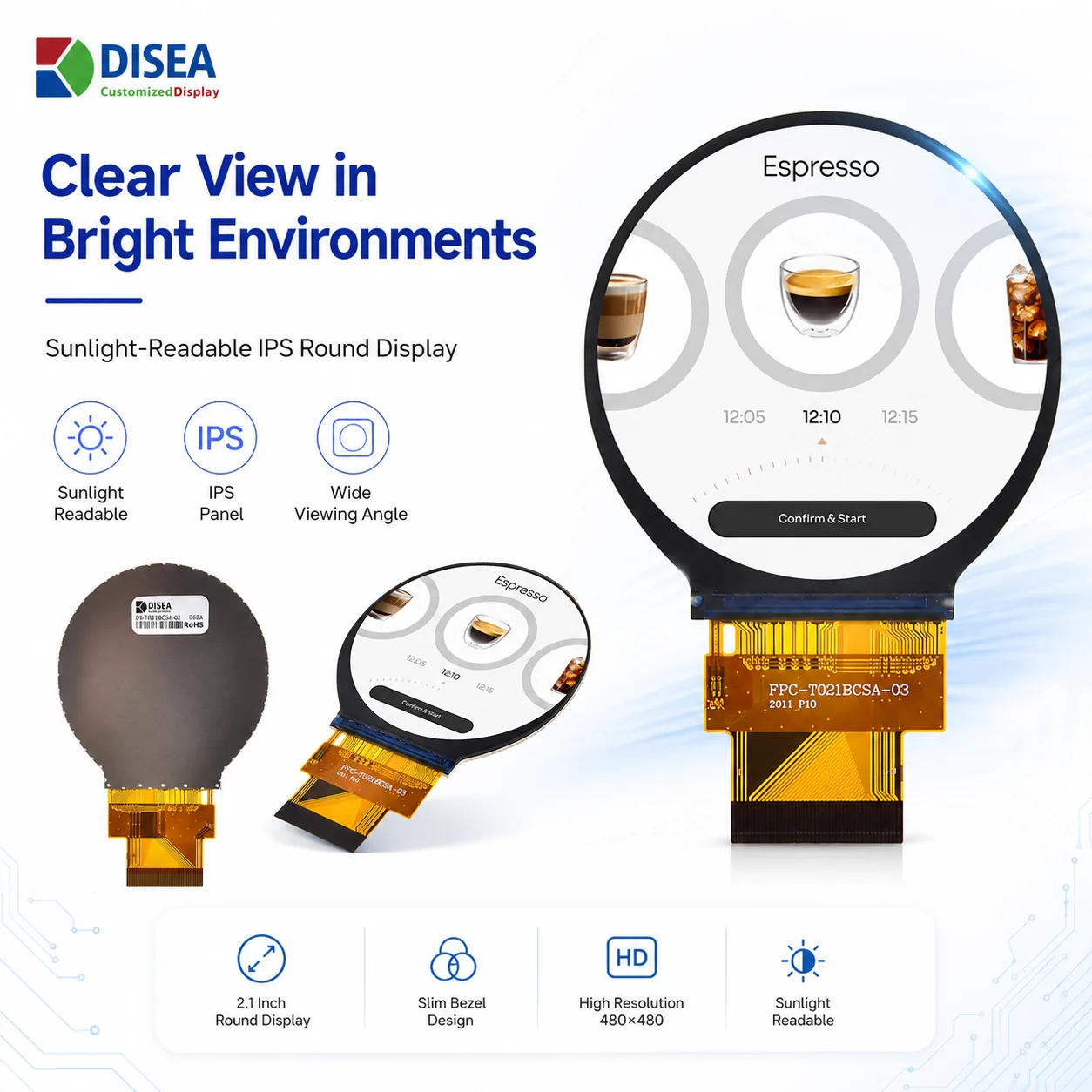

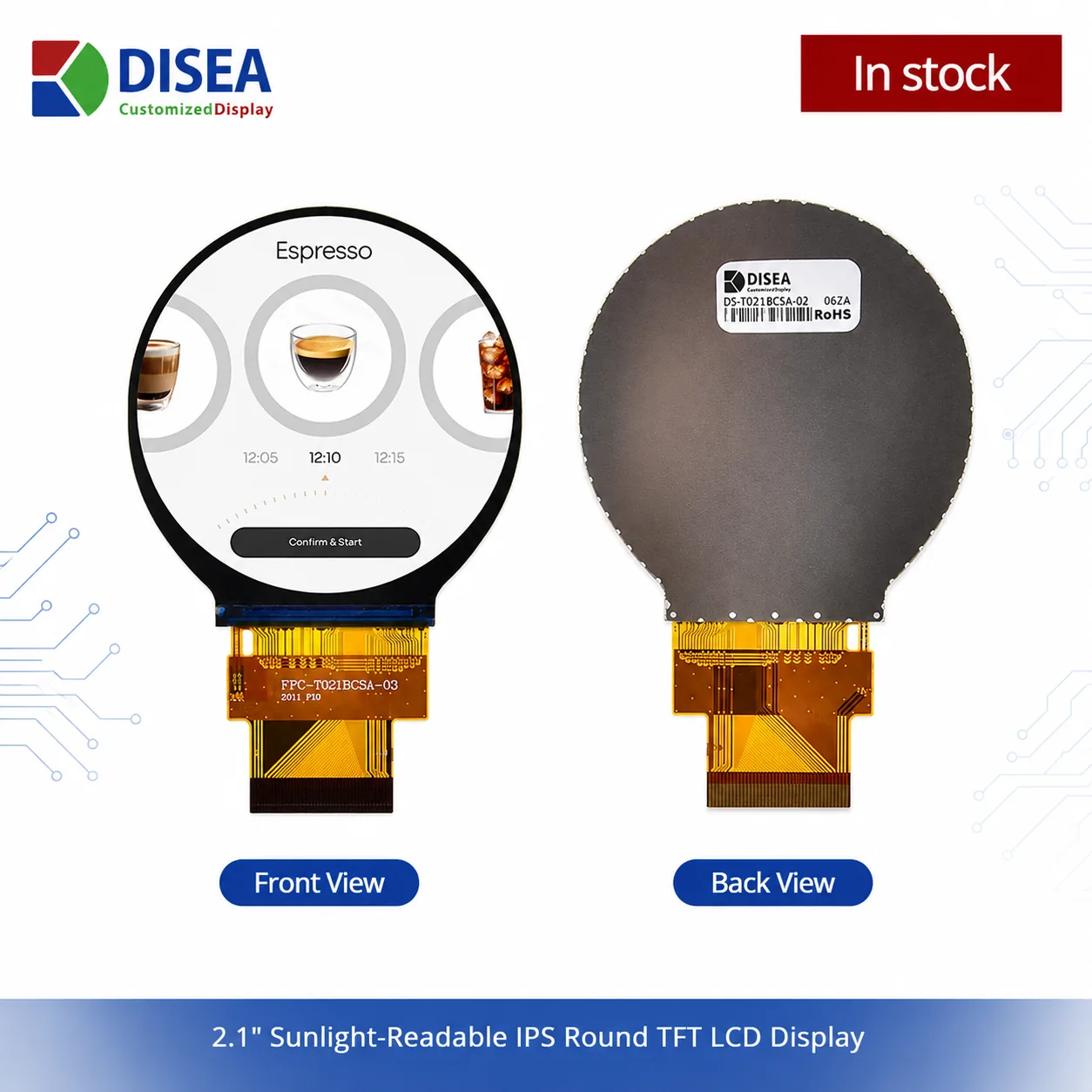

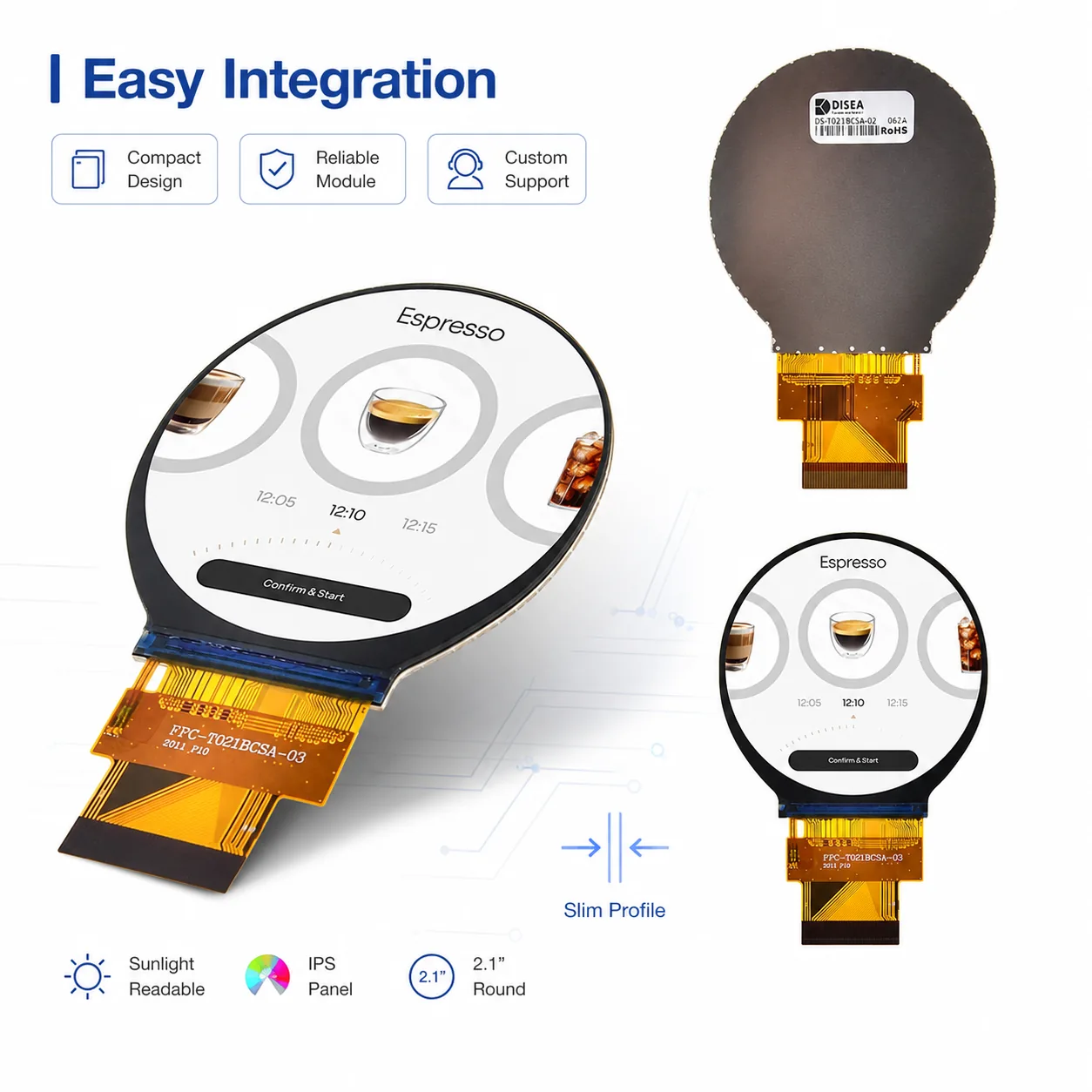

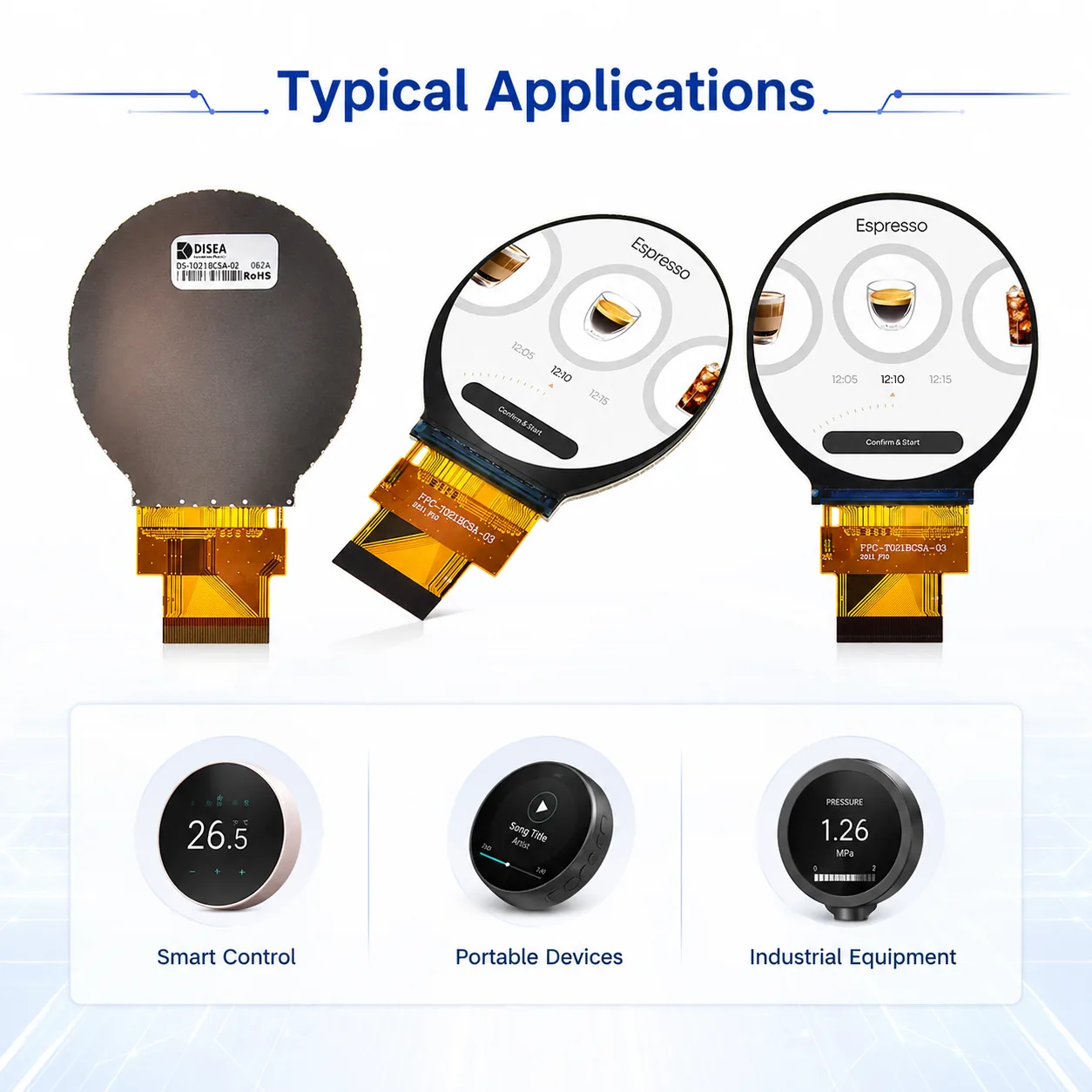

PRODUCT GALLERY
Round module views and integration highlights
Images are presented in the supplied product order.
MECHANICAL DRAWING
DS-T021BCSA-02 dimensional specification

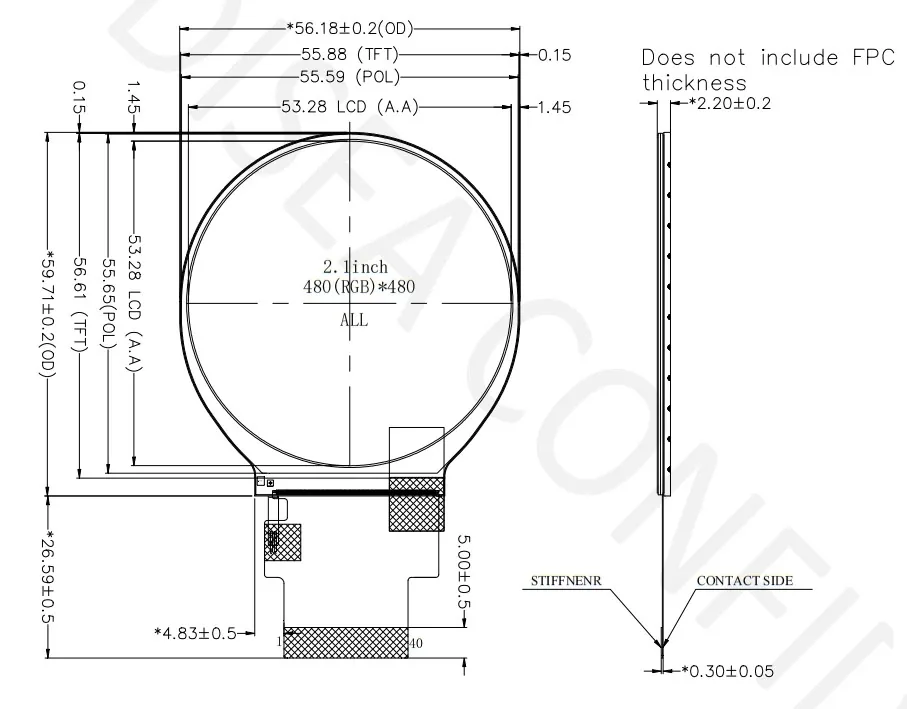

The supplied drawing shows the 56.18 x 59.71 mm outline, 53.28 x 53.28 mm active area, 40-pin FPC and 2.20 mm nominal module thickness excluding the FPC. Confirm the latest controlled drawing revision with DISEA before production release.
Request Drawing Confirmation
ENGINEERING SELECTION NOTES
Is DS-T021BCSA-02 the right round TFT LCD for your project?
Use the specification and drawing together before PCB, enclosure or sample approval.
DS-T021BCSA-02 combines a 2.1 inch IPS round TFT LCD with 480 x 480 resolution, 600 cd/m² luminance, RGB 24-bit 40-pin interface and no touch panel. It is suitable for smart controls, portable devices and compact industrial interfaces when the outline, connector position and electrical timing match the host product.
- Controller and interface: ST7701S with RGB 24-bit, 40 pin; confirm initialization, pin assignment and host compatibility.
- Optical target: 600 cd/m² luminance and IPS viewing; validate readability in the installed environment.
- Environment: operating temperature -20 to 70 °C; validate installed thermal conditions.
- Mechanical release: request the latest controlled drawing before fixing the PCB, bezel, FPC route or connector.
