480x360 resolution
A practical landscape format for compact menus, control interfaces and status information.
In Stock
2.3 INCH IPS TFT LCD MODULE
2.3 inch 480*360 IPS TFT LCD Module With ST7701S IC
DS-T023BCSA-01 is a compact IPS TFT LCD module for portable devices, control panels and handheld equipment. It combines 480x360 resolution, 500 cd/m² luminance, an ST7701S controller and a 2-lane MIPI host interface.

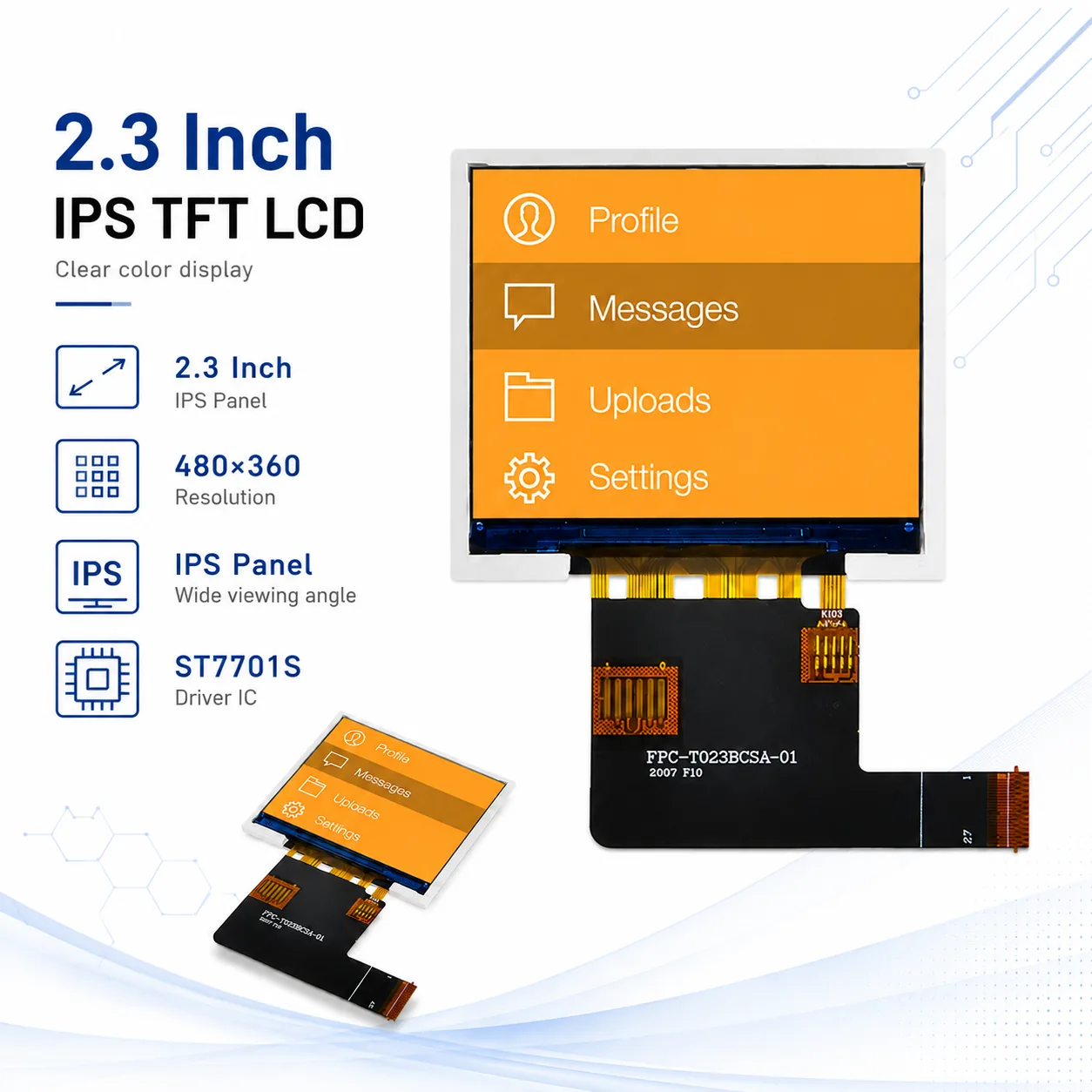

Model: DS-T023BCSA-01
2.3 inDisplay Size
480x360Resolution
IPS TFTLCD Type
ST7701SController
2-Lane MIPIInterface
PRODUCT ADVANTAGES
Compact IPS module with MIPI integration
IPS viewing performance
Wide viewing angles and consistent color support portable and embedded applications.

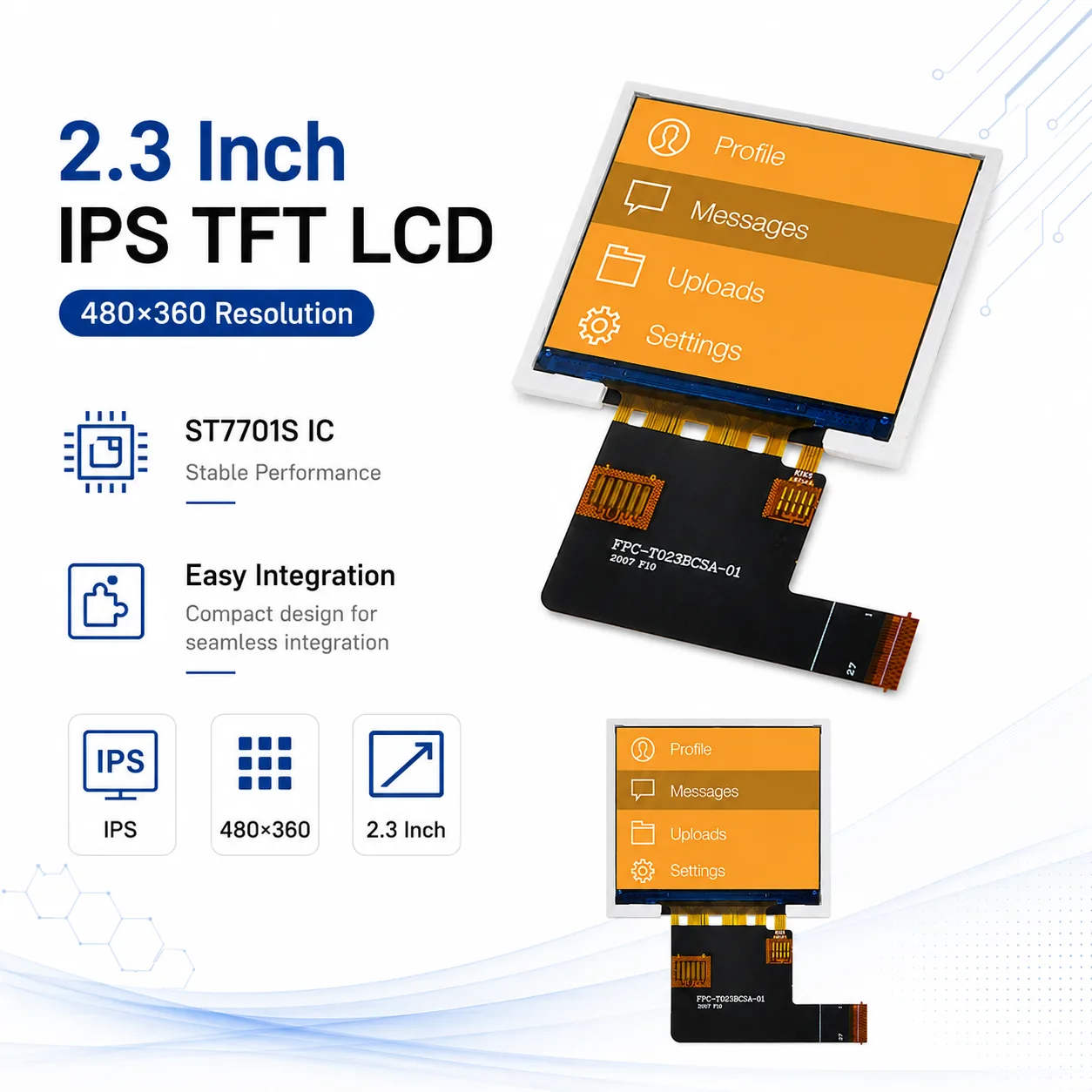

ST7701S controller
The integrated controller supports stable full-color display operation and embedded initialization.
2-lane MIPI interface
The 27-pin FPC supports compact high-speed host integration for compatible processors.

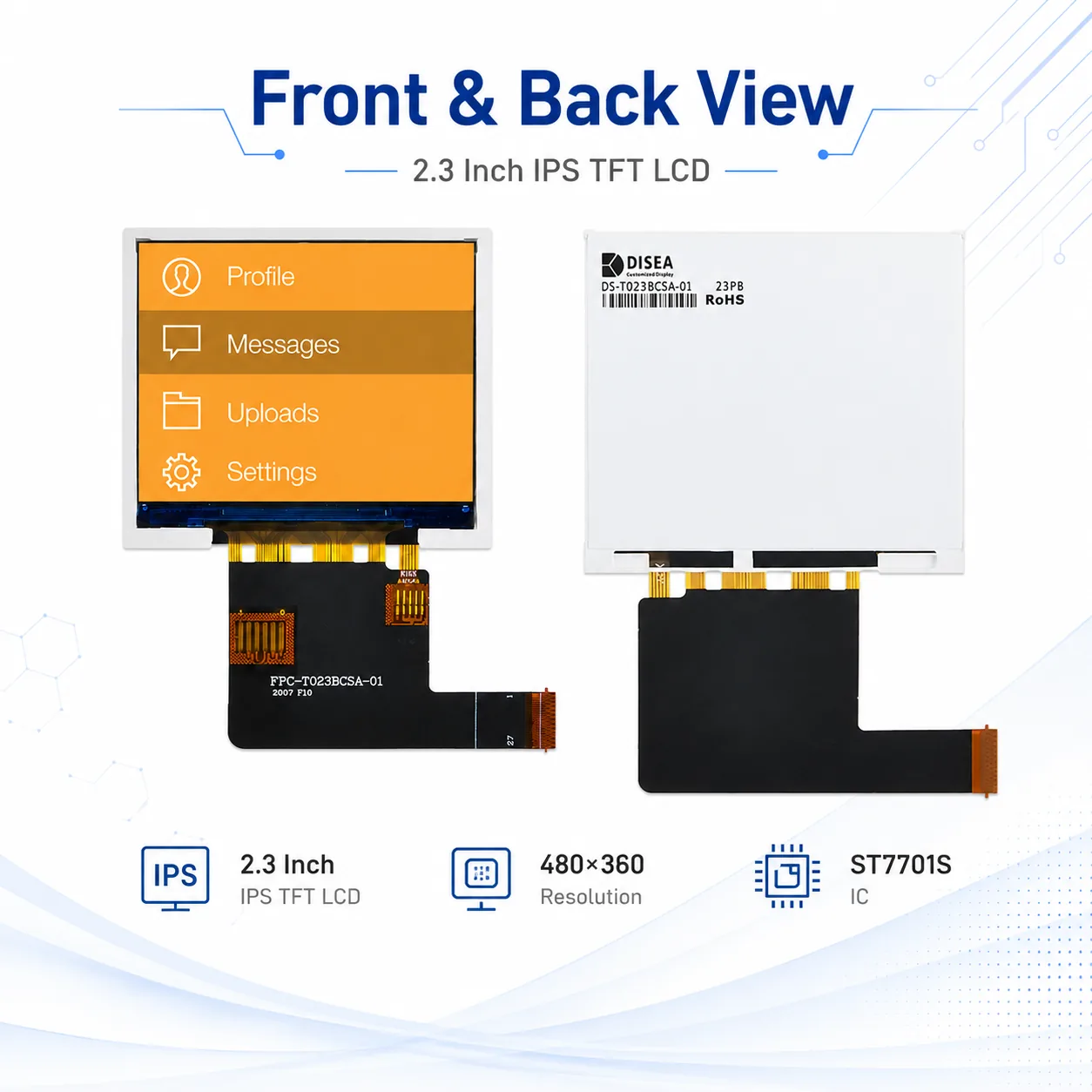

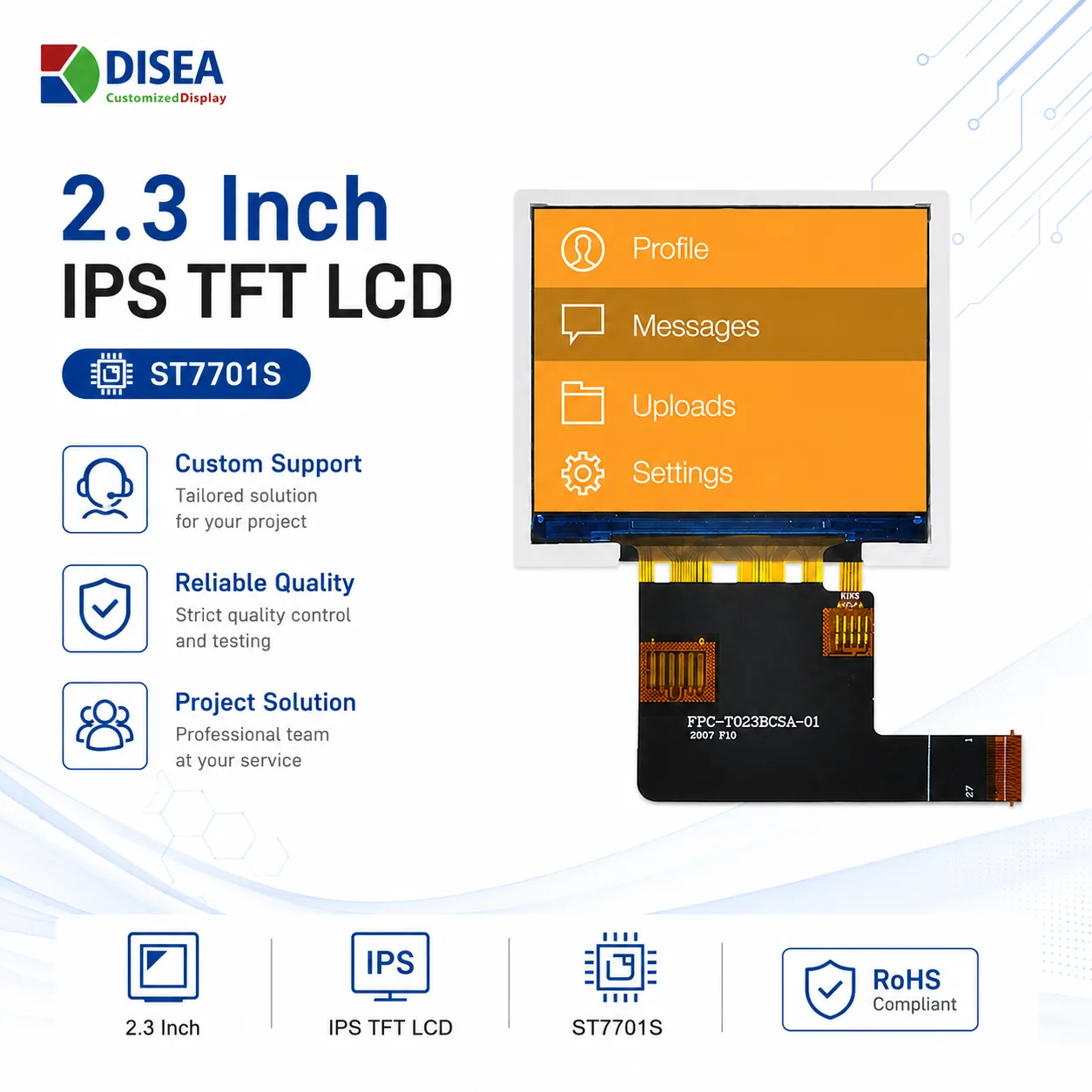

PRODUCT GALLERY
Module views and integration highlights
Images are presented in the supplied product order.

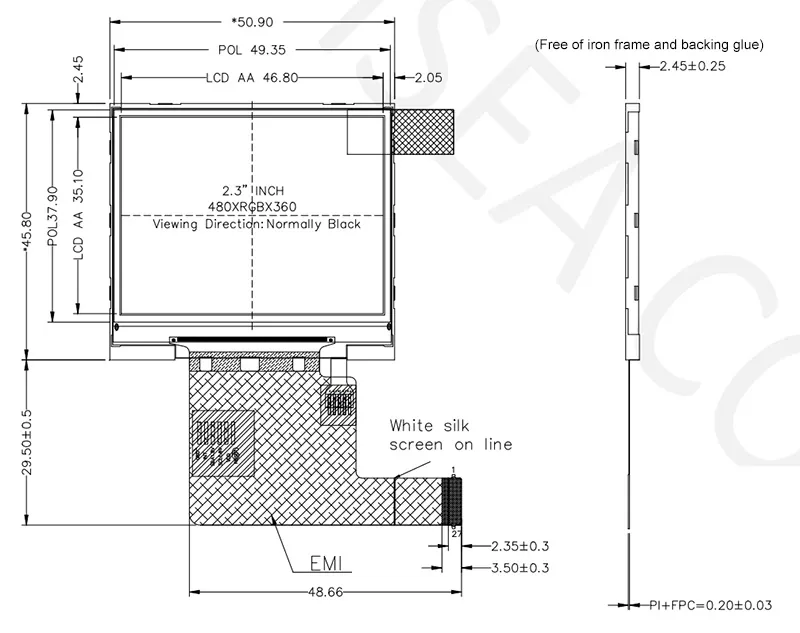

MECHANICAL DRAWING
DS-T023BCSA-01 dimensional specification
The supplied drawing shows the 50.90 x 45.80 mm outline, 46.80 x 35.10 mm active area, 27-pin FPC and 2.45 mm nominal module thickness. Confirm the latest controlled drawing revision with DISEA before production release.
Request Drawing Confirmation
ENGINEERING SELECTION NOTES
Is DS-T023BCSA-01 the right TFT LCD for your project?
Use the specification and drawing together before PCB, enclosure or sample approval.

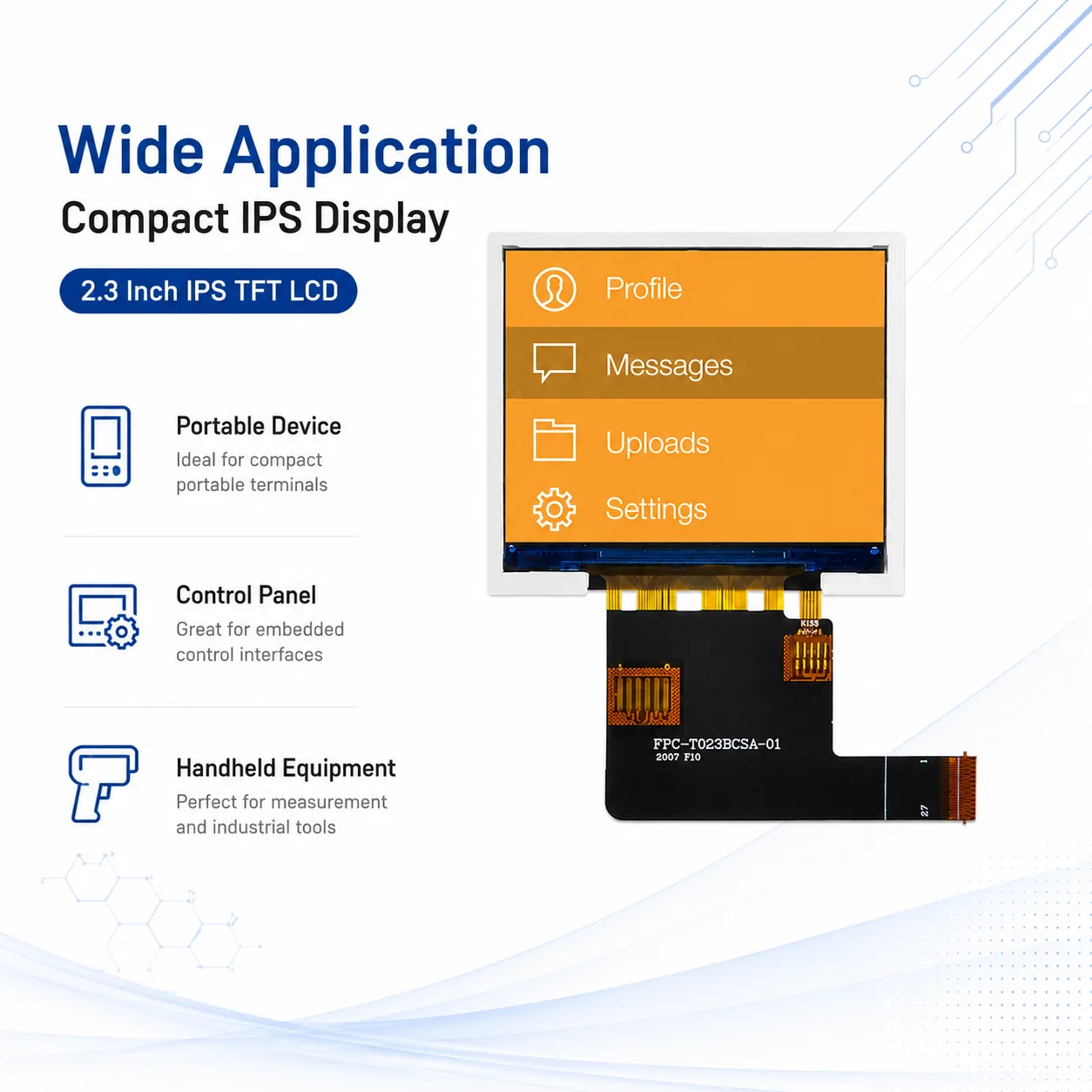

DS-T023BCSA-01 combines a 2.3 inch IPS TFT LCD with 480 x 360 resolution, 500 cd/m² luminance, 2-lane MIPI 27-pin interface and no touch panel. It is suitable for portable devices, control panels and handheld equipment when the outline, connector position and electrical timing match the host product.
- Controller and interface: ST7701S with 2-lane MIPI, 27 pin; confirm initialization, pin assignment and host compatibility.
- Optical target: 500 cd/m² luminance and IPS viewing; review ambient-light requirements.
- Environment: operating temperature -20 to 70 °C; validate installed thermal conditions.
- Mechanical release: request the latest controlled drawing before fixing the PCB, bezel, FPC route or connector.
