3.5 INCH IPS TFT LCD WITH RTP
3.5 inch 320×480 IPS TFT LCD Module with Resistive Touch Panel
A 3.5 inch portrait IPS TFT LCD module for industrial HMI, portable instruments and embedded control panels. DS-T035BHSA-01P combines 320x480 resolution, a resistive touch panel and flexible RGB, MCU or SPI integration.
Model: DS-T035BHSA-01P
3.5 inDisplay Size
320x480Resolution
IPS TFTLCD Type
RTPTouch Panel
250 cd/m²Luminance
PRODUCT ADVANTAGES
Reliable touch display for industrial interfaces
Integrated resistive touch
The RTP supports reliable operation with a finger, stylus or gloved hand in industrial environments.
Flexible 50-pin interface
RGB, MCU and SPI interface options support integration with a broad range of embedded controllers.
Portrait HMI format
The 320x480 portrait format suits menus, status dashboards and compact equipment control panels.
PRODUCT GALLERY

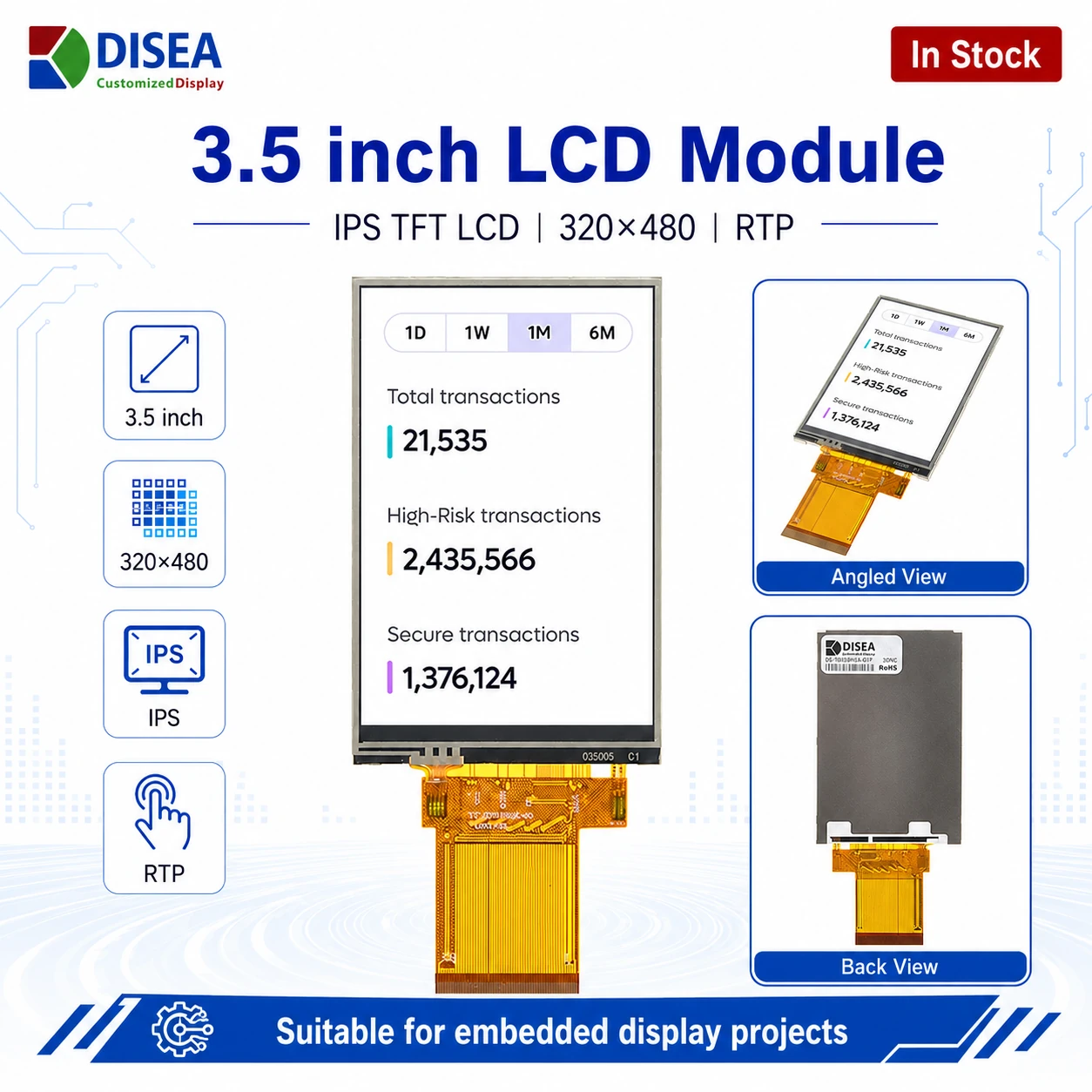

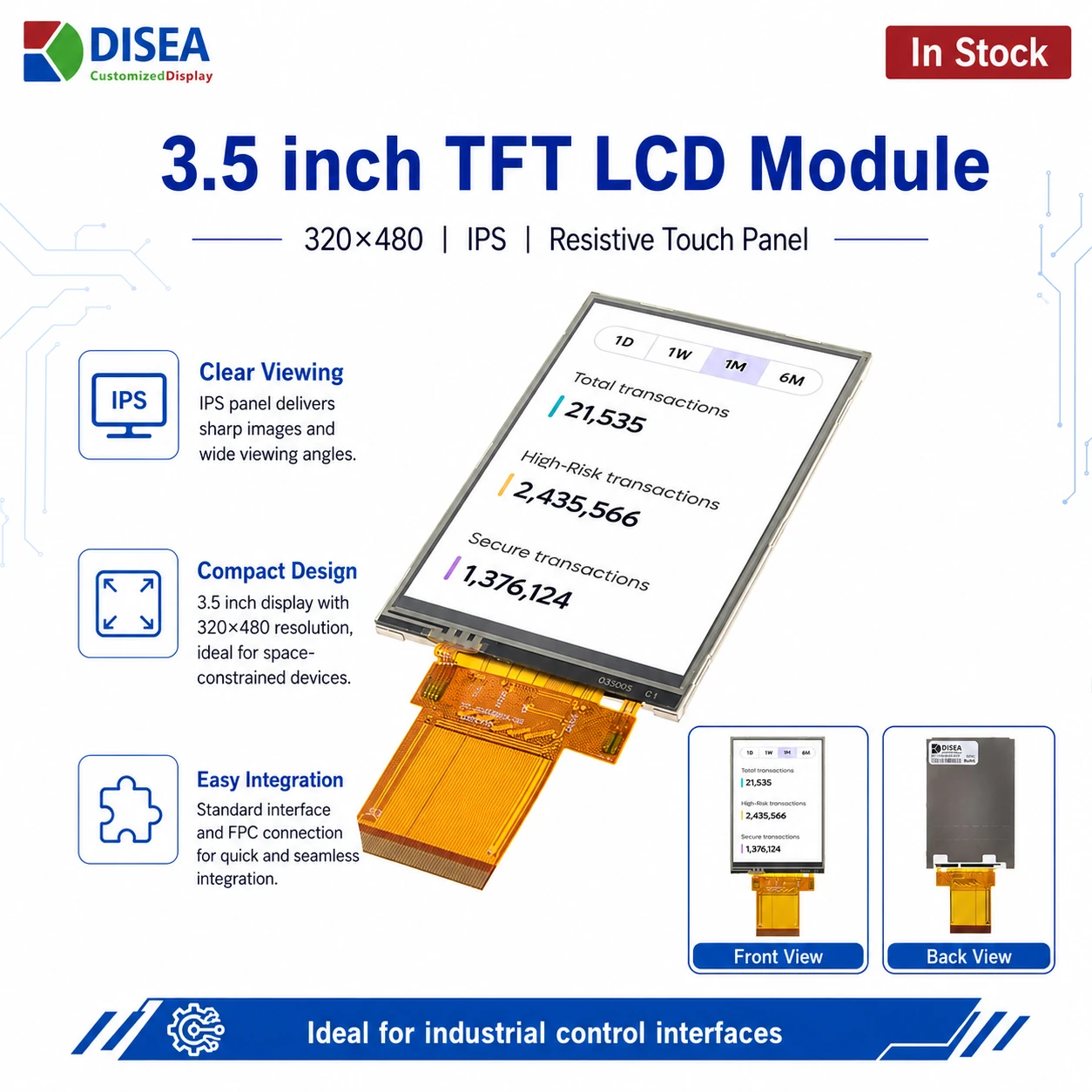

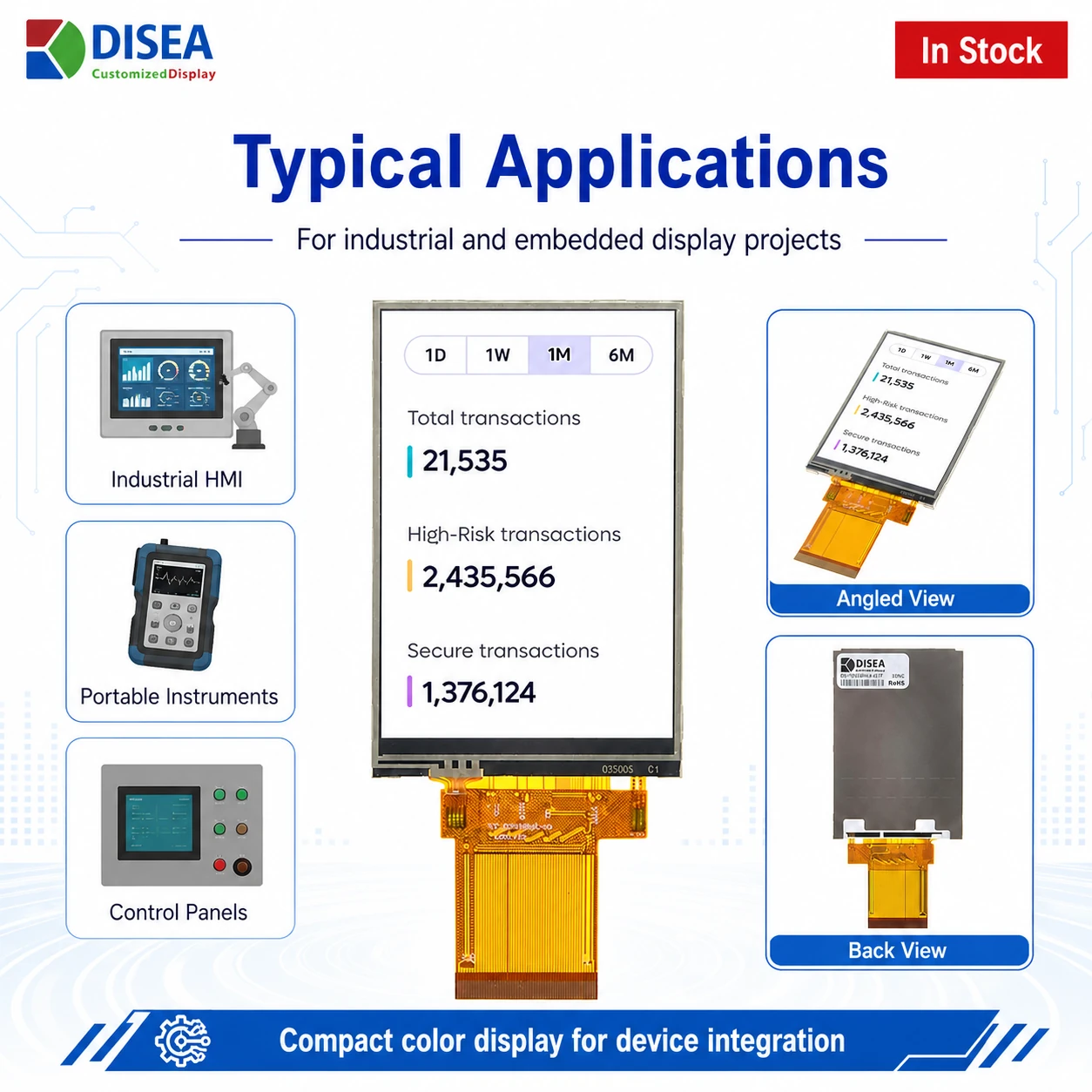

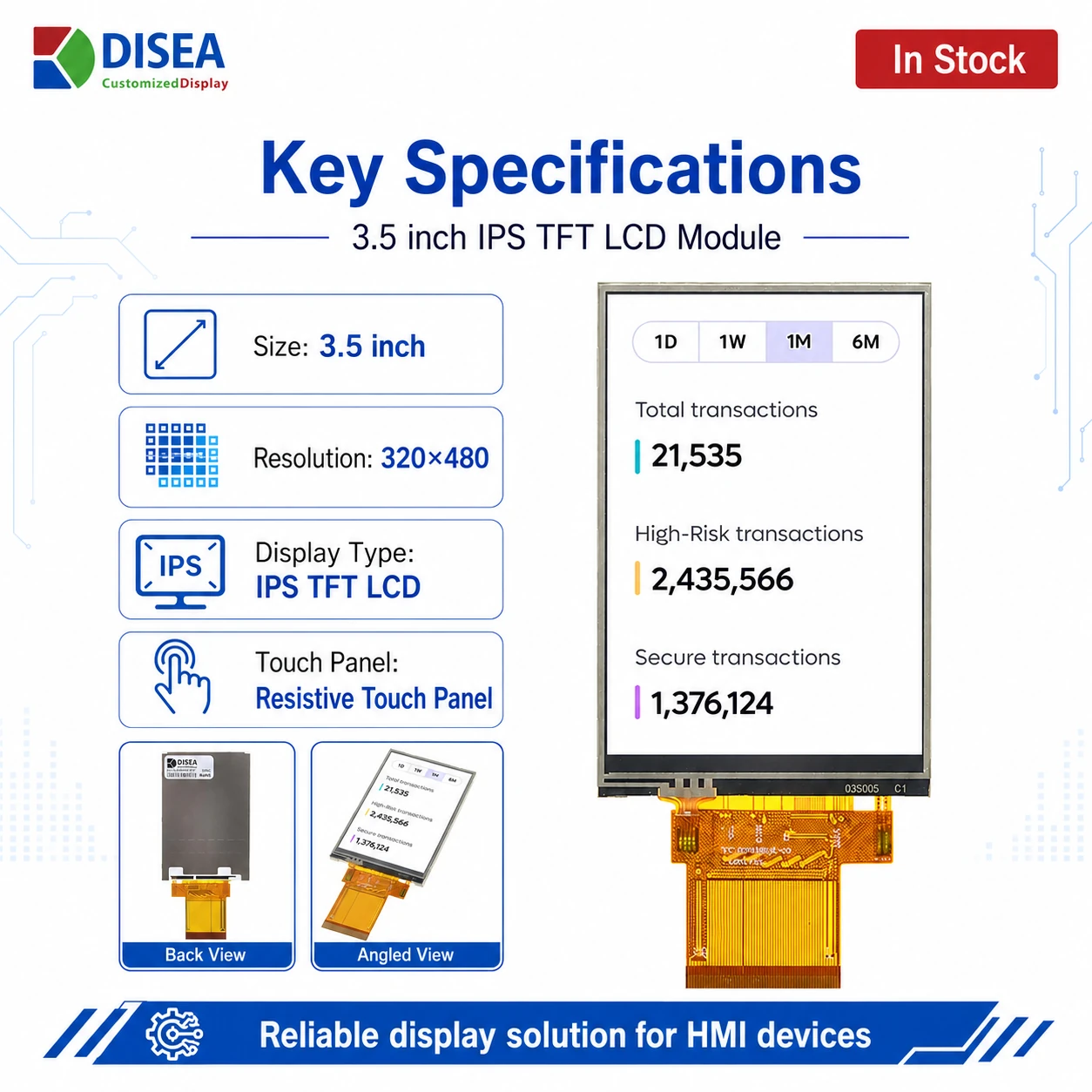

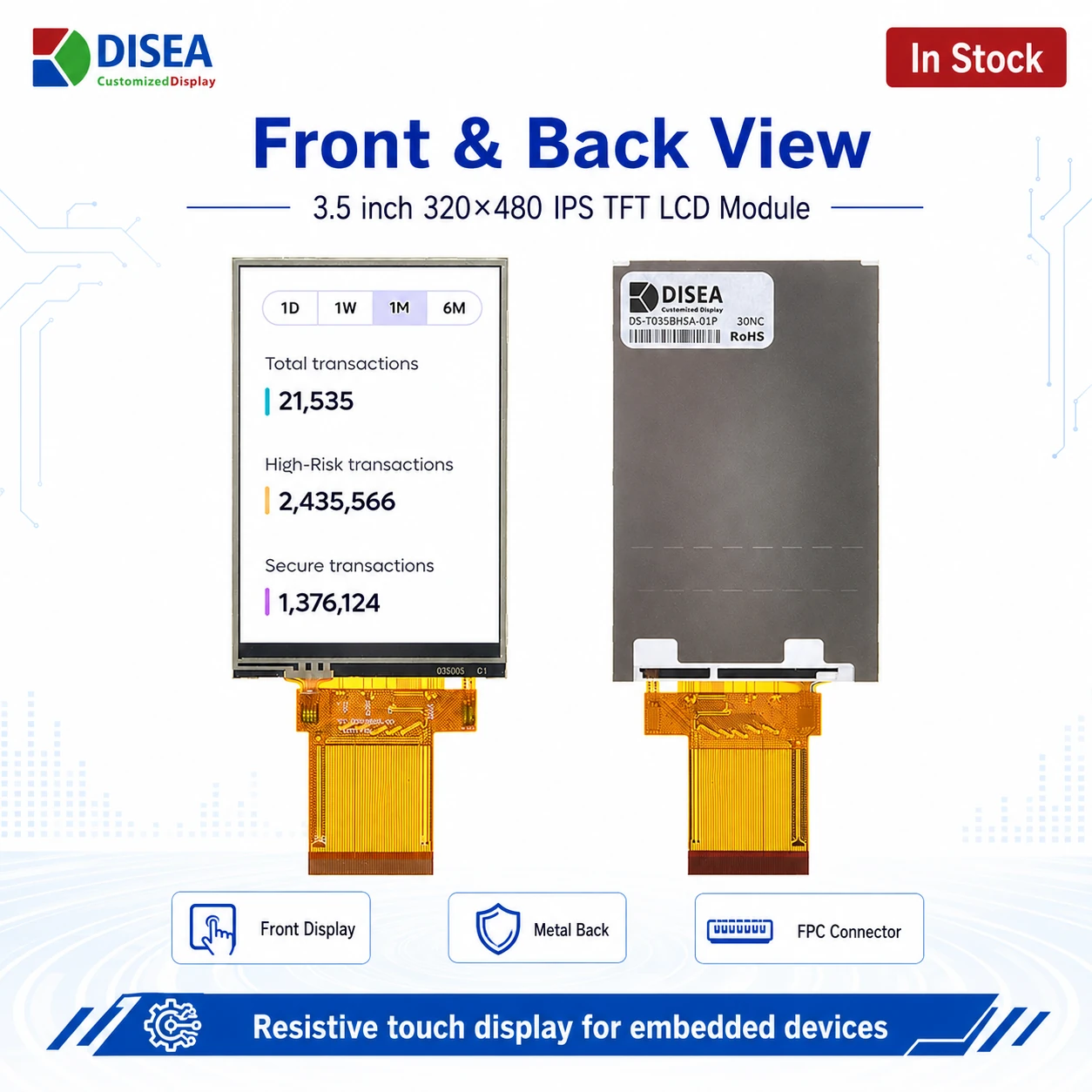

Module views and application highlights
Images are presented in the supplied order. The first image is the catalog cover image.
MECHANICAL DRAWING
Product dimensional specification

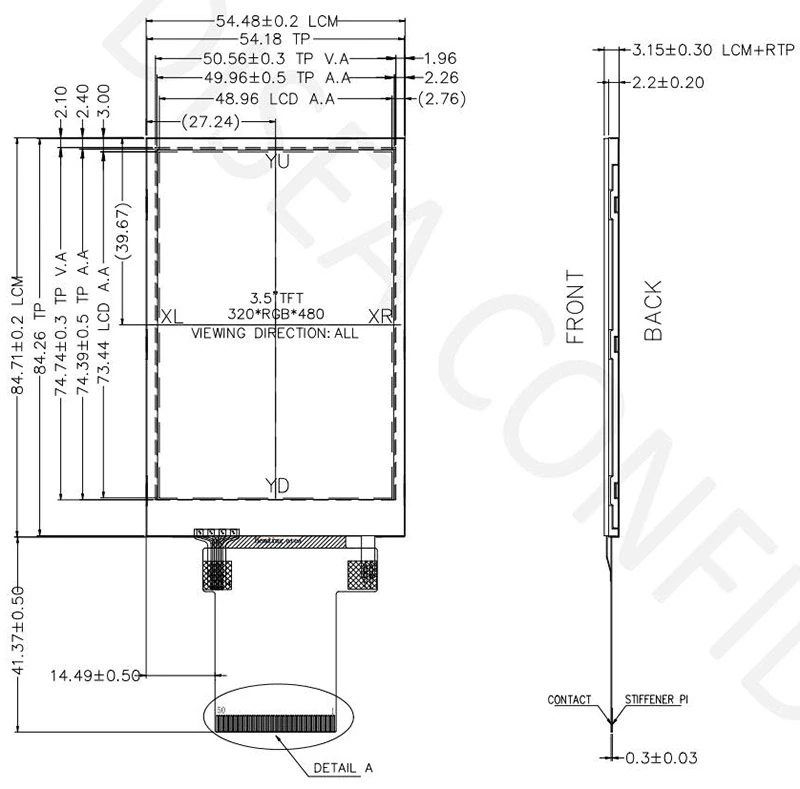

The supplied drawing shows the 54.48 x 84.71 mm LCM outline, 48.96 x 73.44 mm active area, 50-pin FPC and 3.15 mm LCM plus RTP thickness. Confirm the final drawing revision with DISEA before production release.
Request Drawing Confirmation
ENGINEERING SELECTION NOTES
Is DS-T035BHSA-01P the Right TFT LCD for Your Project?
Use the specification and drawing together before PCB, enclosure or sample approval.
DS-T035BHSA-01P combines a 3.5 inch IPS TFT LCD with 320 x 480 resolution, RGB/MCU/SPI, 50 pin interface and Resistive touch panel. It is a candidate for industrial HMI, instruments, medical devices and embedded controls when the outline, connector position, electrical timing and environmental limits match the host product.
- Controller and interface: ST7365P with RGB/MCU/SPI, 50 pin; confirm initialization, pin assignment and host compatibility.
- Optical and touch target: 250 cd/m² luminance with Resistive touch panel; review ambient light, viewing direction and cover requirements.
- Environment: operating temperature -20 to 70 °C; validate the installed thermal and enclosure conditions.
- Mechanical release: request the latest controlled drawing before fixing the PCB, bezel, FPC route or connector.
APPLICATION QUESTIONS
3.5 Inch Resistive-Touch TFT LCD FAQ
Can the resistive touch panel be operated with gloves or a stylus?
Resistive touch responds to pressure, so it can support a stylus and many glove-use cases. The final input method and required activation force should be validated in the installed equipment.
Does the module itself provide an IP sealing rating?
No enclosure sealing rating is claimed for the module alone. Water or dust protection depends on the cover, gasket, bezel, adhesive and enclosure design and must be validated at equipment level.
Which related 3.5 inch modules should be compared?
Compare the 640×480 IPS module with PCAP and the complete 3.5 inch TFT LCD selection page when resolution, touch method or brightness differs.
START YOUR PROJECT
Need a 3.5 inch resistive-touch TFT LCD?
Send your application, interface requirements and volume forecast for a technical review.
