3.5 INCH PCAP TFT LCD MODULE
3.5 inch TN tft lcd display 650 cd/m² High Brightness with Capacitive Touch panel
DS-T035GLH-02CA is a 3.5 inch 320x240 TN TFT LCD module with air-bonded PCAP touch and 650 cd/m² high brightness for industrial HMI, portable devices, medical equipment and control panels.
Model: DS-T035GLH-02CA
3.5 inDisplay Size
320x240Resolution
TN TFTLCD Type
PCAPCapacitive Touch
650 cd/m²Luminance
PRODUCT ADVANTAGES
High-brightness touch display for demanding environments
High-brightness TN panel
650 cd/m² luminance supports brighter operating environments.
RGB 24-bit interface
The 54-pin RGB interface supports embedded display integration.
Compact industrial module
A practical 3.5 inch format for HMI, portable and medical applications.

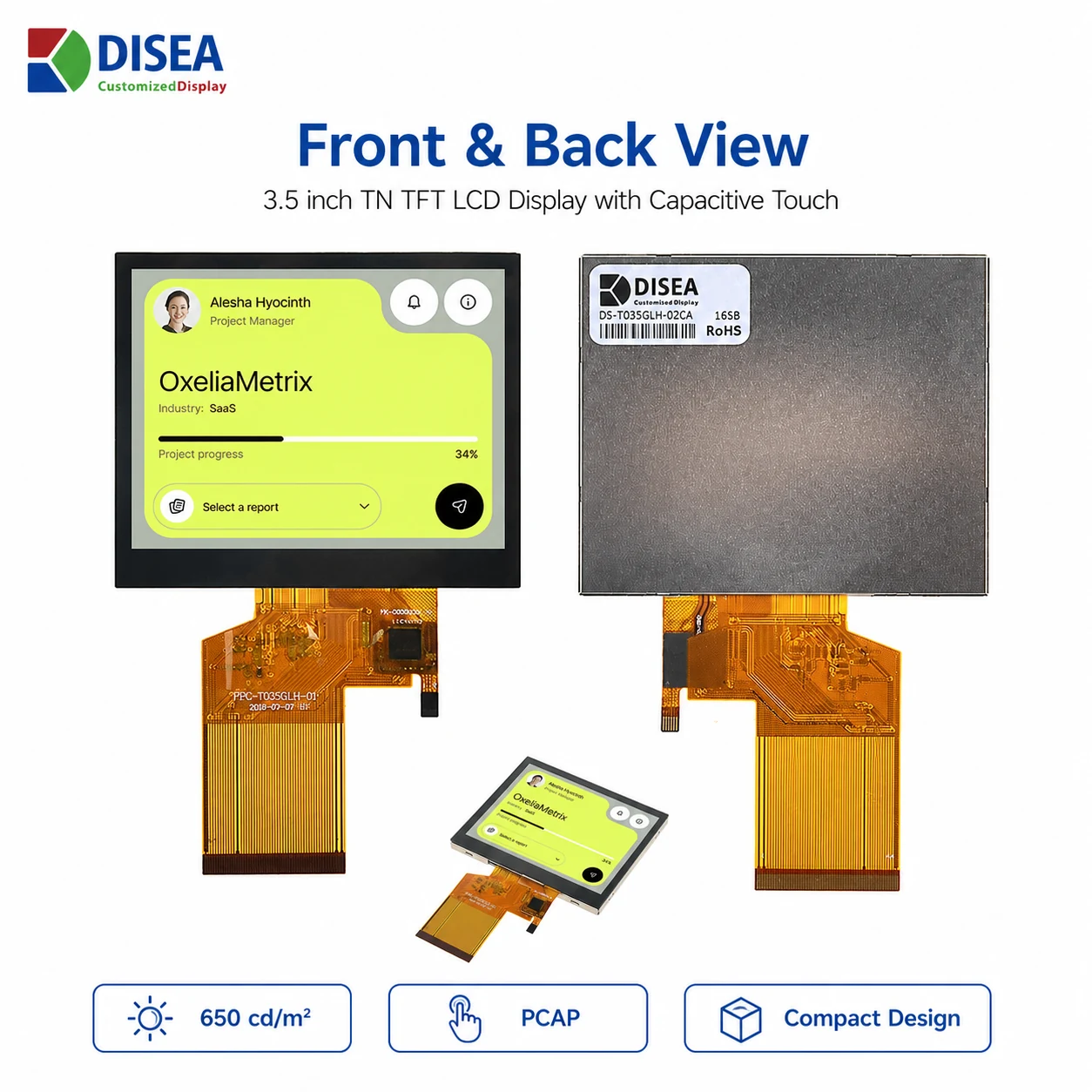

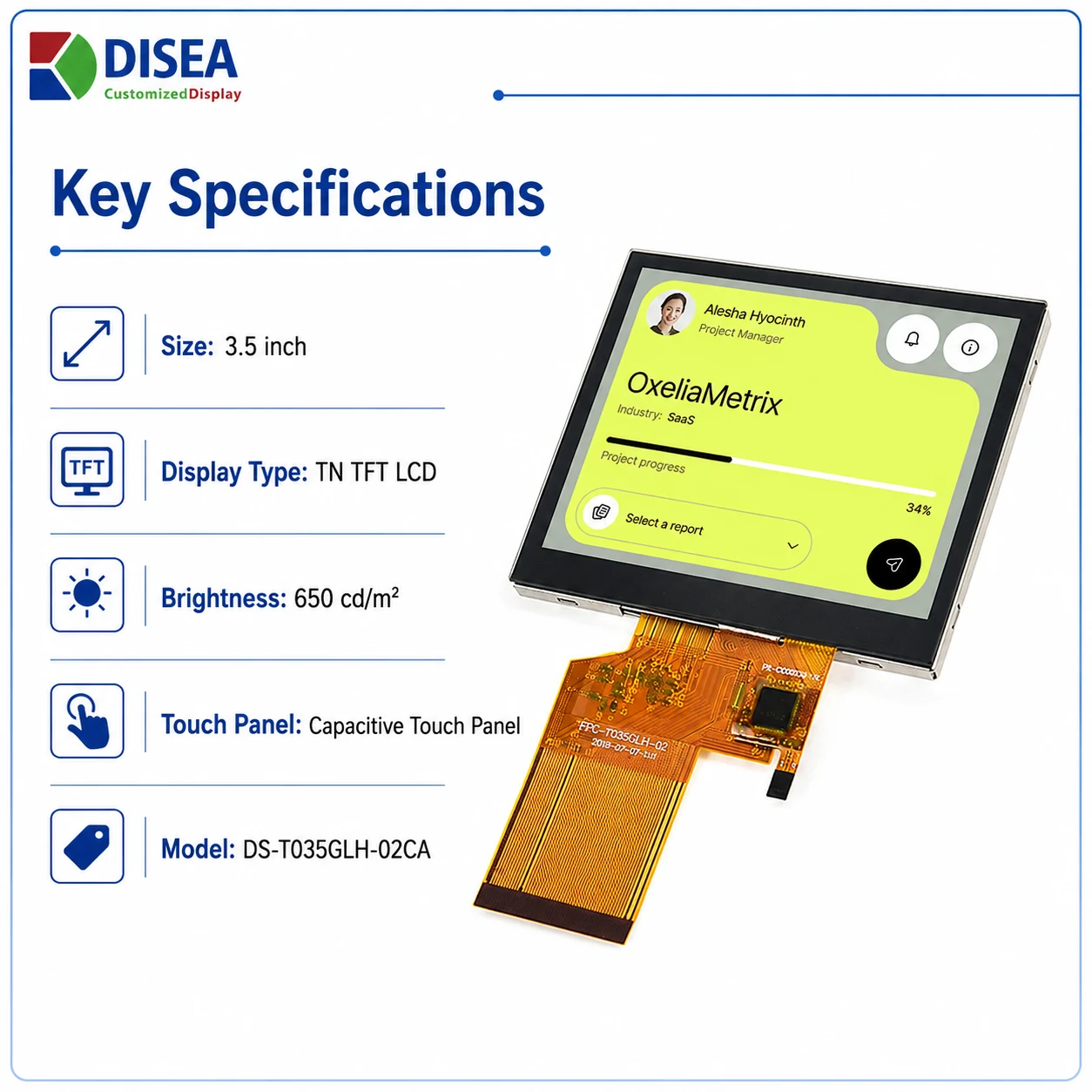

PRODUCT GALLERY
Module views and application highlights
Images are presented in the supplied product order.
MECHANICAL DRAWING
Product dimensional specification

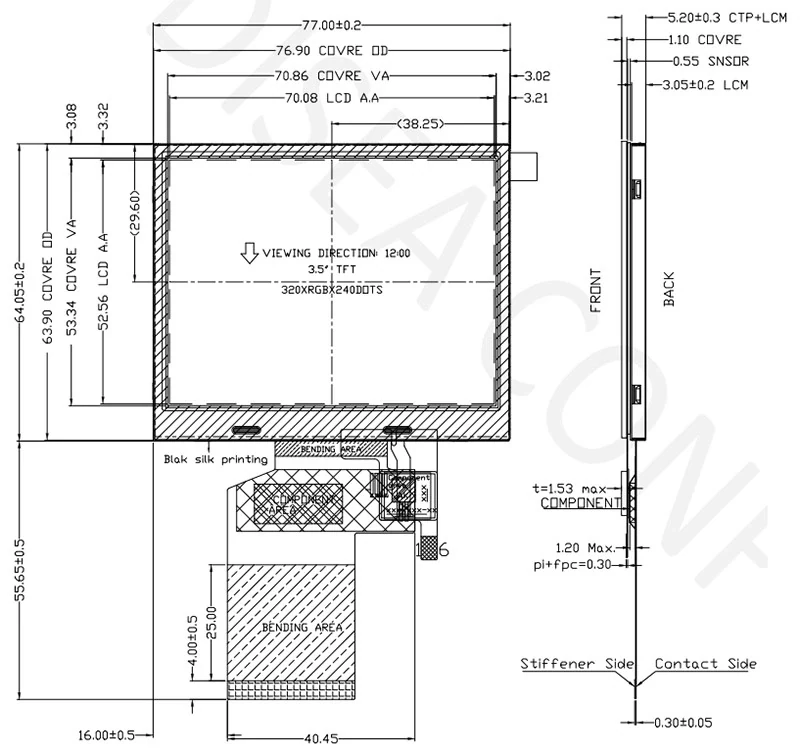

The supplied drawing shows the 77.00 x 64.05 mm outline, 70.08 x 52.56 mm active area, 54-pin FPC and 5.20 mm CTP+LCM thickness. Confirm the final drawing revision with DISEA before production release.
Request Drawing Confirmation
ENGINEERING SELECTION NOTES
Is DS-T035GLH-02CA the Right TFT LCD for Your Project?
Use the specification and drawing together before PCB, enclosure or sample approval.
DS-T035GLH-02CA combines a 3.5 inch TN TFT LCD with 320 x 240 resolution, RGB 24-bit, 54 pin interface and PCAP, ST1633i. It is a candidate for industrial HMI, instruments, medical devices and embedded controls when the outline, connector position, electrical timing and environmental limits match the host product.
- Controller and interface: HX8238D with RGB 24-bit, 54 pin; confirm initialization, pin assignment and host compatibility.
- Optical and touch target: 650 cd/m² luminance with PCAP, ST1633i; review ambient light, viewing direction and cover requirements.
- Environment: operating temperature -20 to 70 °C; validate the installed thermal and enclosure conditions.
- Mechanical release: request the latest controlled drawing before fixing the PCB, bezel, FPC route or connector.
